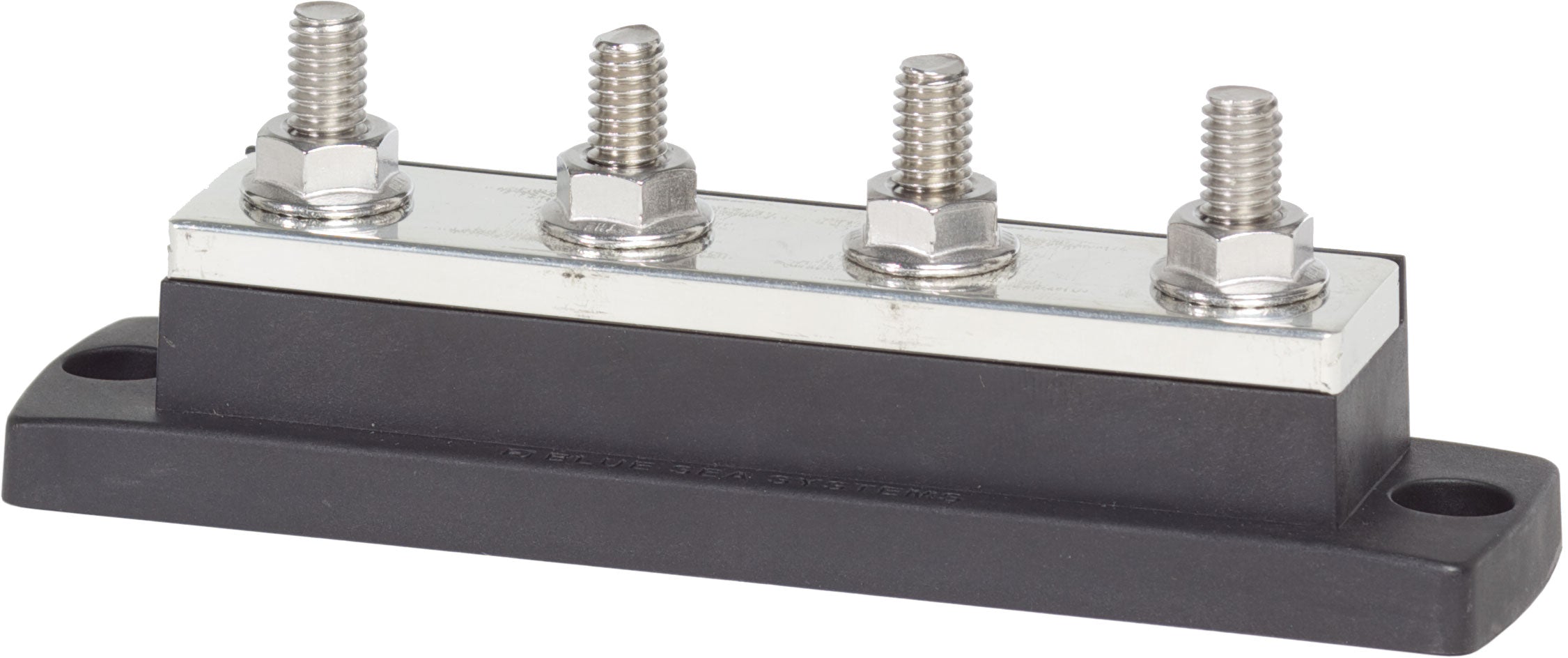

BLUE SEA SYSTEMS | MaxiBus 250A BusBar Four 5/16 18 Studs (2127)

Busbars are used to consolidate multiple wires or feed multiple circuits

• Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
• Raised bus provides easy access to multiple wires on a single stud
• UL 94-V0 rated base material resists high heat
• Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces

Specifications

Maximum Voltage	300V AC 48V DC
Number of Terminal Studs	4
Terminal Type	5/16"-18 Stud
Continuous Rating	250A
Base Material	UL 94-V0 Rated, Glass Reinforced Thermoplastics
Bus Material	Tin-Plated Copper CDA 110 / UNS 11000
Recommended Stud Torque	132 in-lb (14.91 N·m)



(2127)
