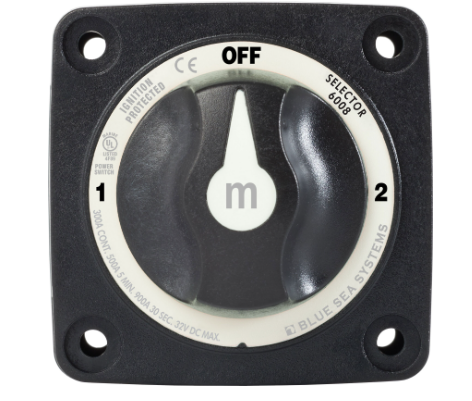

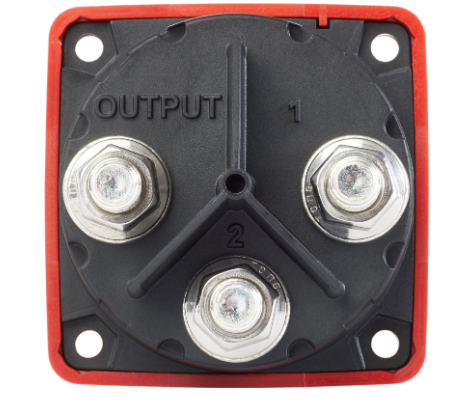

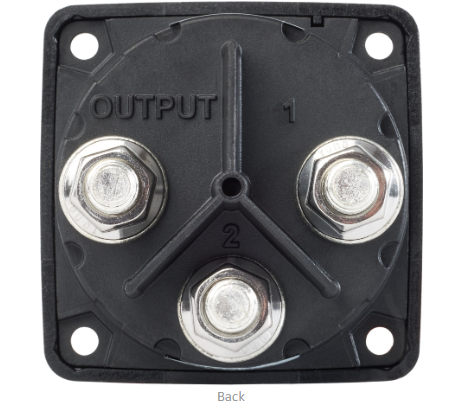

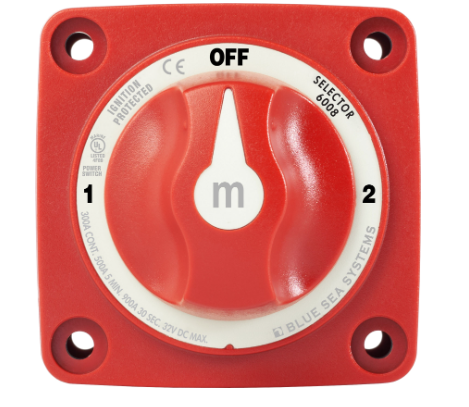

BLUE SEA SYSTEMS | m-Series Selector 3 Position Battery Switch (6008)
Color:Red
Quantity:
SELECT OPTIONS
Color:Red
Quantity:
Color:Red
Quantity:
Description
Switches a single battery to a single load group.
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications
| Switch Type | Selector 3 Position |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 500A (5 Min) |
| Cranking Rating 30 sec | 900A |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) 4/0 AWG (130mm²) |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
(6008)
