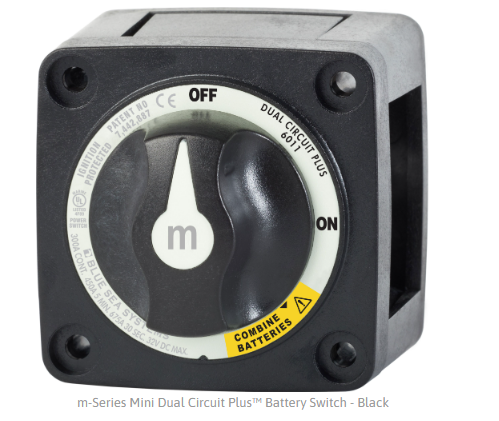

BLUE SEA SYSTEMS | m Series Mini Dual Circuit Plus Battery Switch Black (6011200)
Quantity:
SELECT OPTIONS
Quantity:
Description
Simultaneously switches two isolated battery banks or combines battery banks to all loads
- Make before break contact design allows switching between battery banks without power interruption
Specifications
Switch Type
|
Dual Circuit Plus |
| Color | Red |
| Switch Positions | 3 |
| Battery Combine | Yes |
| Alternator Field Disconnect | No |
| Maximum Voltage | 32V DC |
| Stud Size | 3/8" |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Continuous Rating | 300A |
| Intermittent Rating | 450A (5 min) |
| Cranking Rating 30 sec | 675A per circuit |
| Battery Inputs | 2 |
| Cable Clearance For 4/0 AWG Cables | 1.12in (28.45 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm²) |
| Mounting Holes | Accept #10 Screw |

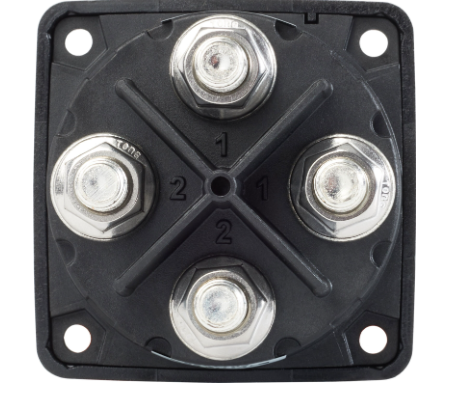

| Stud Material | Tinned Copper |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
(6011200)
