BLUE SEA SYSTEMS | Heavy Duty Series Battery Switch 600A (165629)
Quantity:
SELECT OPTIONS
Quantity:
Description
These heavy duty switches are rated at 600 continuous amps - 70% higher than standard switches - and are suitable for large diesel engines.
Features
• Ignition protected - safe for installation aboard gasoline powered boats
• Corrosion-resistant, one-piece, tin -plated, 1/2" copper studs cannot loosen, and accept multiple cables up to 4/0
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches
• Rated at IP66 - withstands heavy seas, jetting water

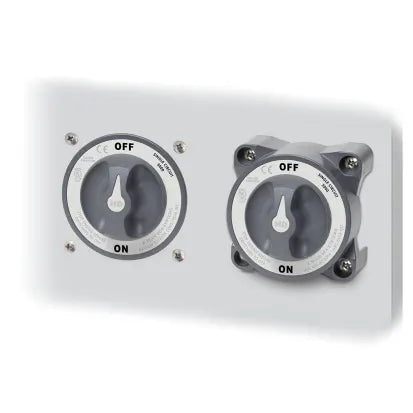

• Case design allows surface or flush mounting
• Dimensions: 3.85"W x 3.85"H x 3.10"D
• Fits Perko and Guest low amperage battery switch hole patterns
Note: Maximum ratings in Specification Table are when using 4/0 cable.
Specifications
MFG #: 3000
- AFD: No
- Battery Inputs: 1
- Battery Switch Rating (Using 4/0 Cables): 600A Continuous, 900A Intermittent (5 Min),1750A Cranking (30 Sec)
- Dimensions: 3.85"W x 3.85"H x 3.10"D
- Stud: 1/2"
- Type: 600A Heavy Duty Battery Switch - On/Off
- Volts: 32V DC Max
- Barcodes: 50632085030006, 3000, 632085030001
(165629)
