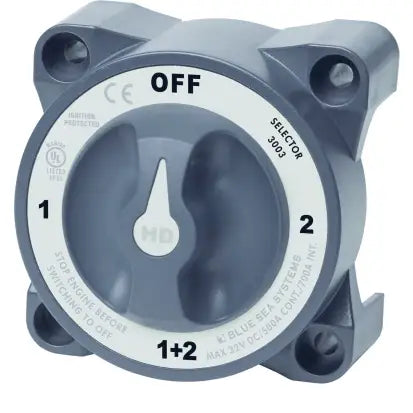

BLUE SEA SYSTEMS | Heavy Duty Battery Selector Switch 4 Positions W/AFD (174069)
BLUE SEA SYSTEMS | Heavy Duty Battery Selector Switch 4 Positions W/AFD (174069)
BLUE SEA SYSTEMS | Heavy Duty Battery Selector Switch 4 Positions W/AFD (174069)

BLUE SEA SYSTEMS | Heavy Duty Battery Selector Switch 4 Positions W/AFD (174069)

$113.51
Quantity:

Description

With a continuous duty rating of 500 amps, these switches are suitable for use starting large diesel and gasoline engines.

Features

• Ignition protected (SAE J1171); safe for installation aboard gasoline powered boats
• AFD (Alternator Field Disconnect) function on 3003 protects alternator diodes if the selector switch is inadvertently turned to the "OFF" position while the engine is running

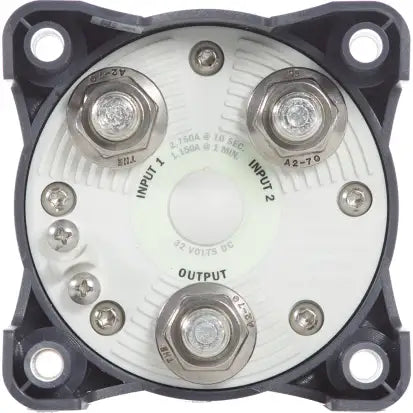

• Corrosion-resistant, one-piece, tin -plated, 1/2" copper studs cannot loosen, and accept multiple cables up to 4/0
• Rated at IP66 - withstands heavy seas, jets of water

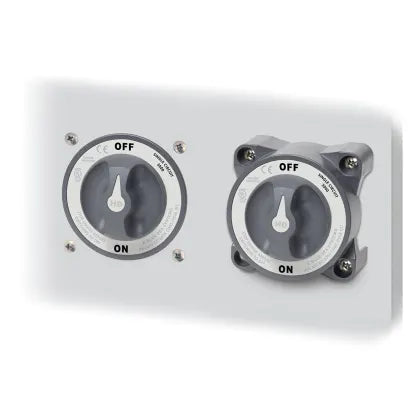

• Case design allows surface or rear panel mounting
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches; UL listed; CE marked
• Fits all Perko and Guest low amperage battery switch hole patterns

Specifications

MFG #: 3003
  • AFD: Yes
  • Battery Inputs: 2
  • Battery Switch Rating (Using 4/0 Cables): 500A Continuous, 700A Intermittent (5 Min),1600A Cranking (30 Sec)
  • Continuous Rating: 500 Amps
  • Switch Positions: 4
  • Type: 500A Battery Switch - 4 Positions w/AFD
  • Volts: 32V DC
  • Barcodes: 3003, 632085030032, 50632085030037
(174069)
