BLUE SEA SYSTEMS | Heavy Duty Battery Selector Switch - 4 Positions 500A (171533)
Quantity:
SELECT OPTIONS
Quantity:
Description
With a continuous duty rating of 500 amps, these switches are suitable for use starting large diesel and gasoline engines.
Features
• Ignition protected (SAE J1171); safe for installation aboard gasoline powered boats.
• Corrosion-resistant, one-piece, tin -plated, 1/2" copper studs cannot loosen, and accept multiple cables up to 4/0
• Rated at IP66 - withstands heavy seas, jets of water

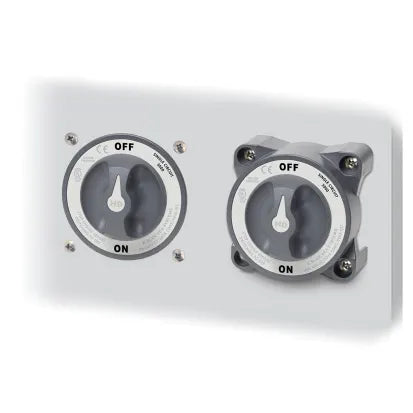

• Case design allows surface or rear panel mounting
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches; UL listed; CE marked
• Fits all Perko and Guest low amperage battery switch hole patterns
Note: Maximum ratings in Specification Table are when using 4/0 cable.
Specifications
MFG #: 3002
AFD: No
Battery Inputs: 2
Battery Switch Rating (Using 4/0 Cables): 500A Continuous, 700A Intermittent (5 Min),1600A Cranking (30 Sec)
Switch Positions: 4
Type: 500A Heavy Duty Battery Selector Switch - 4 Positions
Volts: 32V DC Max.
