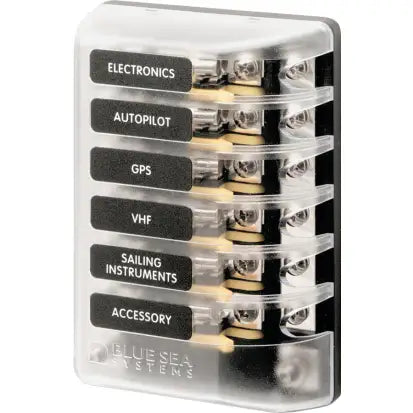

BLUE SEA SYSTEMS | Glass Fuse Block (89560)

Description

• Accepts AGC (fast acting) and MDL (time-delay) glass fuses: 1/8 to 30 amp
• Integrated fuse ejectors are an innovative and very useful feature
• Clear cover insulates all conductive parts, satisfying ABYC/USCG requirements
• Cover has label recesses for standard Blue Sea labels
• Storage for spare fuses is located behind the labels
• All metal components are tin-plated for superior corrosion resistance
• Wire connections made via 8-32 screw terminals
• Base material is heavy-duty black polycarbonate
• Maximum amps: 30 per circuit/100 per block
• Dimensions: 3.5"W x 5.00"L x 1.25"H
• Fuses not included
