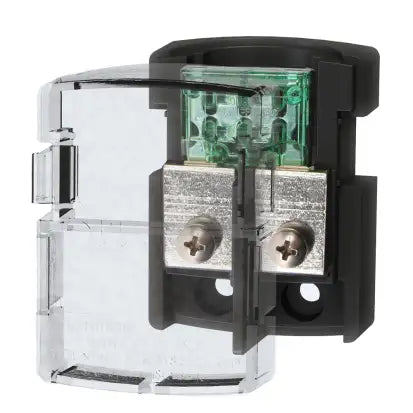

BLUE SEA SYSTEMS | Fuse Block 30/80A (1000969)

Description

• Snap-on terminal cover insulates all conductive parts, satisfying ABYC/USCG requirements
• Cover breakouts allow wires from sides or bottom
• Terminal screws compress fuse blades within blocks for low resistance connections
• Ignition Protected
• Label recess accepts large format label
• Fuses sold separately
Specifications
• Maximum Amperage: 80A
• Maximum Voltage: 32V DC
• Mounting: #10 Screws
• Screw Terminal Torque: 25 in-lb (2.82 Nm)
• Wire Size: 14 - 4 AWG

• Ignition Protected

(1000969)
