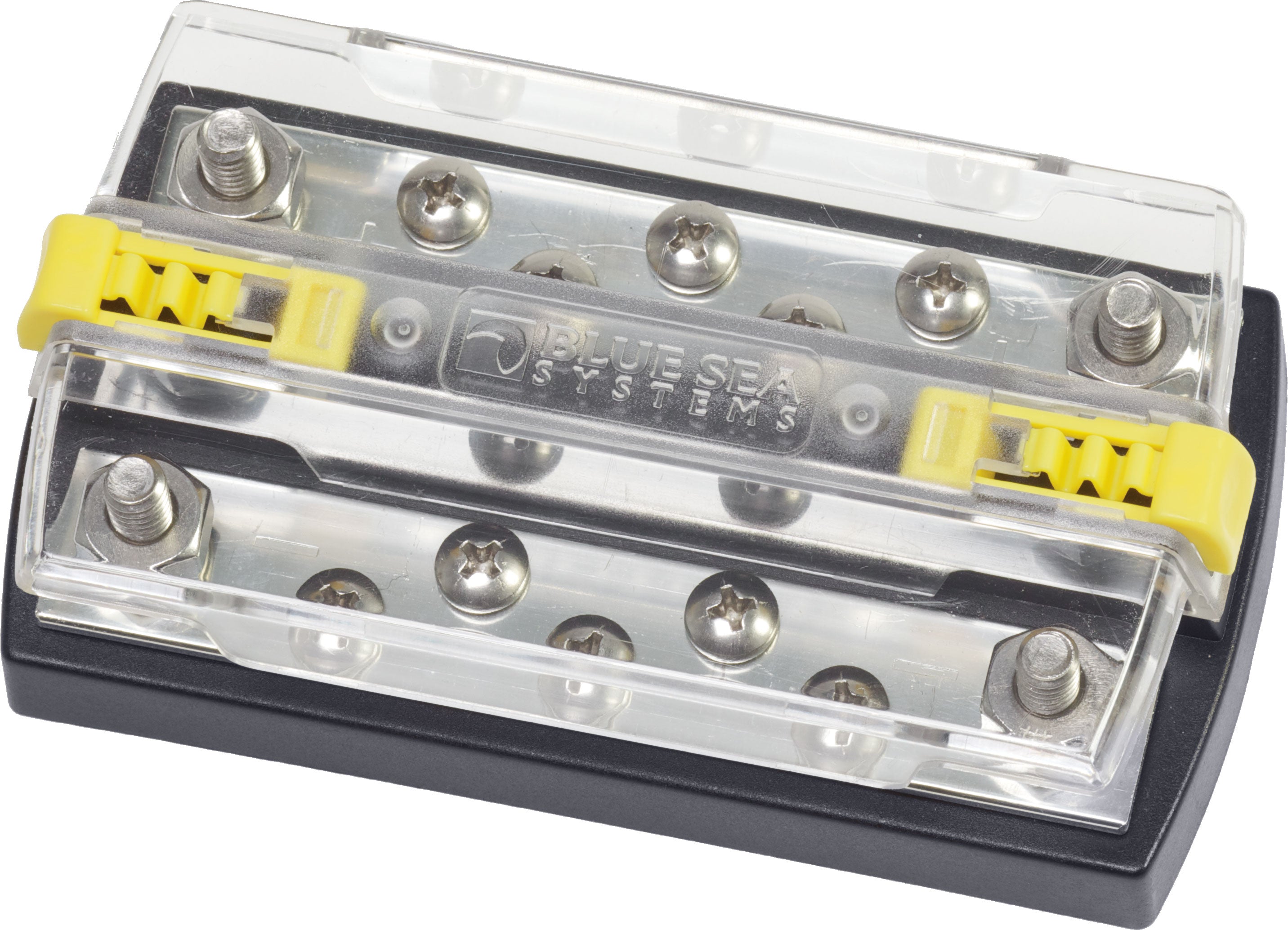

BLUE SEA SYSTEMS | DualBus Plus 150A BusBar 5/16" 8 Stud 5 Gang (2723)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Combines negative and positive buses on one block
- Clear polycarbonate cover snaps on to meet Coast Guard and ABYC insulation requirements
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 5 per bus |
| Number of Terminal Studs | 2 per bus |
| Terminal Type | #10-32 Screw 5/16" Stud |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Cover Material | Clear Polycarbonate |
| Mounting Screw | #10 (M5) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Stud Torque | 120 in-lb (13.56 Nm) |
(2723)
