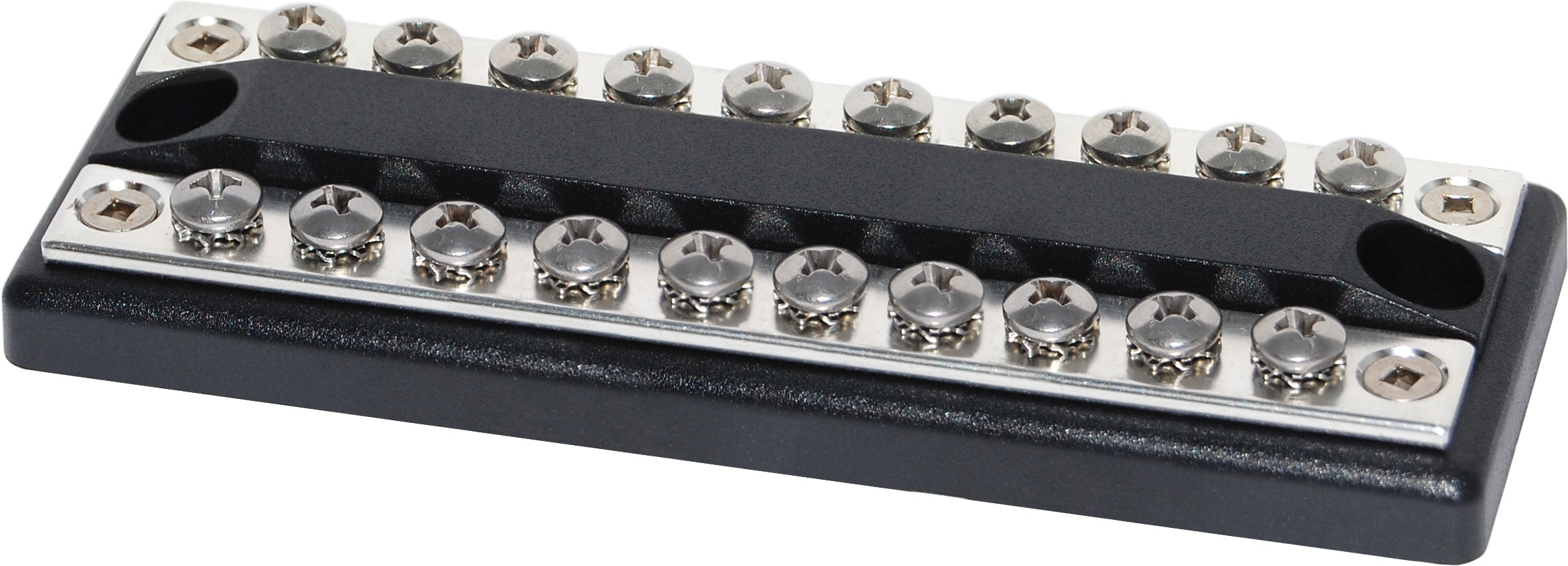

BLUE SEA SYSTEMS | DualBus 100A BusBar 10 Circuit (2702)
Quantity:
SELECT OPTIONS
Quantity:
Description
- Combines negative and positive buses on one block
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 10 per bus |
| Terminal Type | #8-32 Screw |
| Continuous Rating | 100A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Height | 5⁄8 in (15.88 mm) |
(2702)
