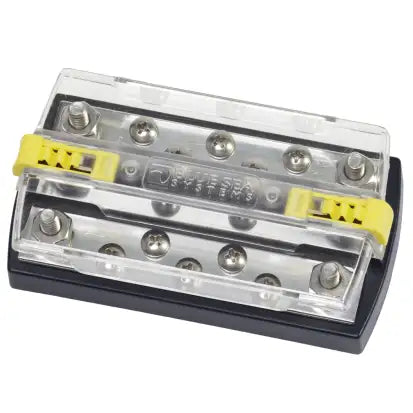

BLUE SEA SYSTEMS | Dual Bus Plus (133810)

Description

• Combines clearly marked negative and positive buses on one block
• Easy release cover snaps on to meet Coast Guard and ABYC insulation safety requirements
• Continuous amperage: 130 amps AC/150 amps DC
• Voltage rating: 300 volts AC maximum/48 volts DC maximum
• Bus material: tin-plated copper
• Base material: reinforced polycarbonate
• Cover material: clear polycarbonate
• No. 2720 has no screw terminals; used primarily as a means of extending wire harnesses
• Dimensions: 2.58" x 4.88"
