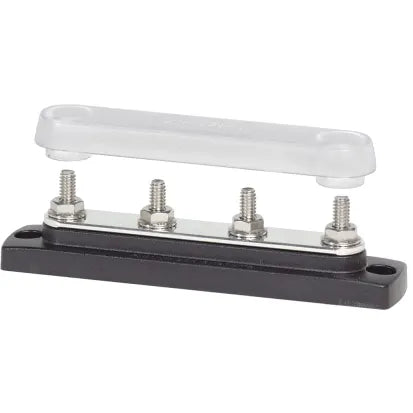

BLUE SEA SYSTEMS | Common Bus Bar 150A Four 1/4"-20 Studs With Cover (191903)
Quantity:
SELECT OPTIONS
Quantity:
Description
• The industry standard busbar for positive distribution
• The industry standard busbar for the collection of negative or AC ground circuits
• The ABYC recommends no more than 4 wire terminals per stud
Specifications
- MFG #: 2307
# Terminals: 4
Base Material: Reinforced Polycarbonate
Bus Material: Tin-Plated Copper CDA 110 / UNS 11000
Cover Material: Clear Polycarbonate
Max. Voltage: 48V DC, 300V AC
Terminal Type: 1/4" Stud
Type: Common 150A BusBar - Four 1/4"-20 Studs with Cover
Barcodes: 2307, 632085023072, 10632085023079
(191903)
