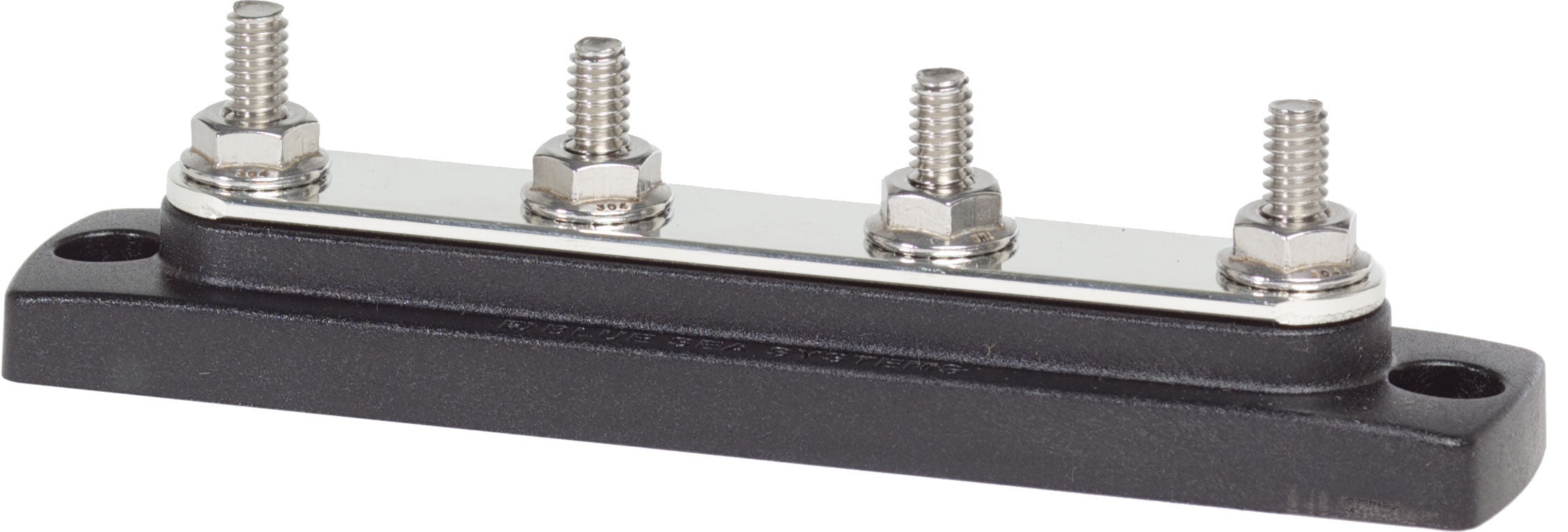

BLUE SEA SYSTEMS | Common 150A BusBar Four 1/4" 20 Studs (2303)
Quantity:
SELECT OPTIONS
Quantity:
Description
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 1/4" Stud |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Stud Torque | 60 in-lb (6.78 Nm) |
(2303)
