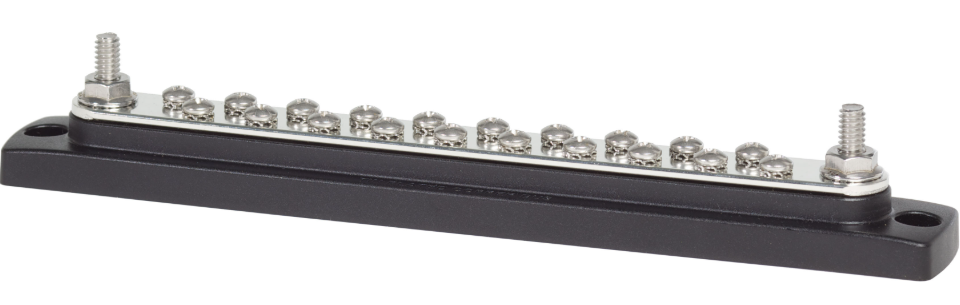

BLUE SEA SYSTEMS | Common 150A BusBar 20 Gang (2302)
Quantity:
SELECT OPTIONS
Quantity:
Description
- The industry standard busbar for positive distribution
- The industry standard busbar for the collection of negative or AC ground circuits
Specifications
| Maximum Voltage | 300V AC 48V DC |
| Number of Screw Terminals | 20 |
| Number of Terminal Studs | 2 |
| Terminal Type | 1/4" Stud #8-32 Screw |
| Continuous Rating | 130A AC 150A DC |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Screw Terminal Torque | 15 in-lb (1.69 Nm) |
| Stud Torque | 60 in-lb (6.78 Nm) |
(2302)
