$189.22
Breakers:

Breakers
Quantity:

Description

Note: These panels are designed as secondary panels where AC main circuit protection has been provided elsewhere. As such, they do not include a main (2-pole) breaker. Available in 120 volt and 230 volt (European) versions.
• Panel is ready to install
• All hot, neutral and safety ground buses installed, fully pre-wired
• Label backlighting and LEDs pre-installed
• Panel main bus is rated at 100 amps
• Includes set of 30 common AC labels
• Detailed installation instructions and cutout template

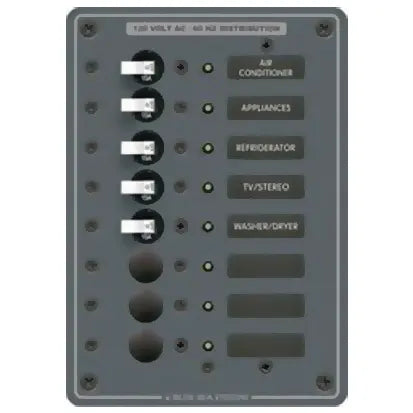

• 8059 shown

  • LED backlighting
  • Labels included
  • No main breaker

Specifications

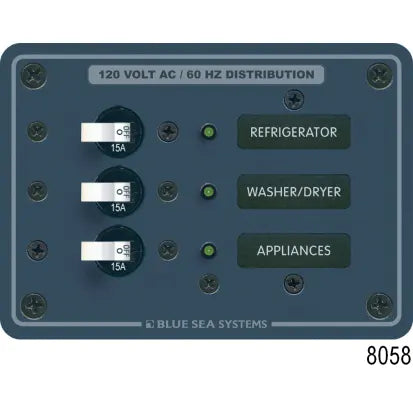

  • MFG #: 8058 | Breakers: 3 x 15A | SKU: 71922
Breakers: 3 x 15A
Dimensions: 5.25"W x 3.75"H
Empty: 0
Toggle: White
Type: AC Breaker Sub-Panel - 3 Position
Volts: 120 VAC
Barcodes: 8058, 632085080587

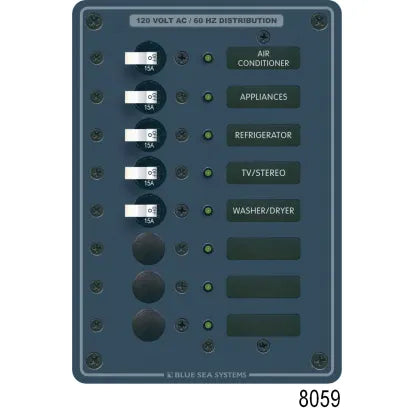

  • MFG #: 8059 | Breakers: 5 x 15A | SKU: 71923
Breakers: 5 x 15A
Dimensions: 5.25"W x 7.5"H
Empty: 3
Toggle: White
Type: AC Breaker Sub-Panel - 8 Position (shown)
Volts: 120 VAC
Barcodes: 8059, 632085080594

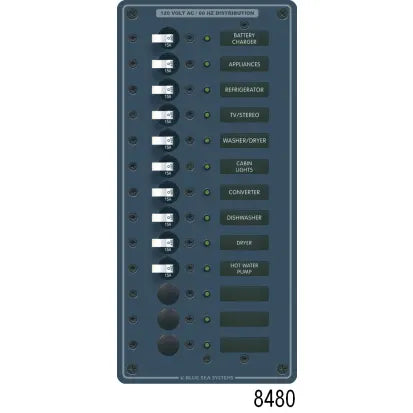

  • MFG #: 8480 | Breakers: 10 x 15A | SKU: 167893
Breakers: 10 x 15A
Dimensions: 5.25"W x 11.25"H
Empty: 3
Toggle: White
Type: AC Breaker Sub-Panel - 13 Position
Volts: 120 VAC
Barcode: 632085084806
