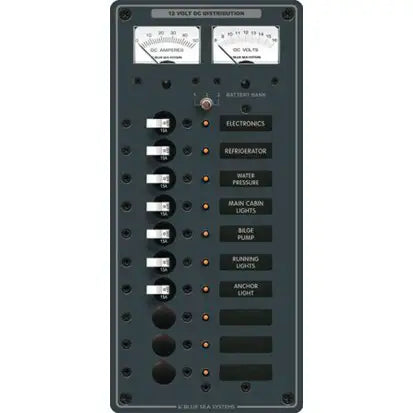

BLUE SEA SYSTEMS | Circuit Breaker Panel With Volt/Amp Analog Meters DC 10 Position (89582)

• Panel is ready for installation
• All positive, negative and grounding buses installed fully pre-wired
• 10 total circuit breaker positions
• Seven 15 amp single pole circuit breakers installed; 3 empty
• Panel main bus is rated at 100 amps DC
• 8-16 volt DC micro voltmeter with 3-position switch for multiple battery banks
• 0-50 ampere DC micro ammeter with remote shunt
• Includes set of 30 common DC labels
• Includes pre-installed backlighting and LEDs
• 12 volt; upgradeable to 24 volt with micro voltmeter (No. 8243)

• Analog Volt/Amp meters
• Manage up to 3 battery banks
• LED backlighting
