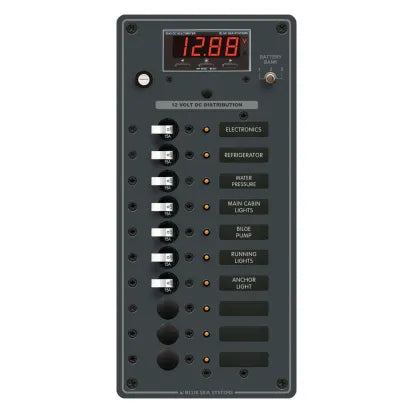

BLUE SEA SYSTEMS | Circuit Breaker Panel With Digital Multimeter DC 10 Position (135009)

• Panel is ready for installation
• All positive, negative and grounding buses installed, fully pre-wired
• 10 DC circuit breaker positions
• Seven 15 ampere single pole circuit breakers installed; 3 empty positions
• Includes DC digital multimeter with alarm (No. 8248)
• DC digital multimeter displays +/- 500 amperes, voltage to 60V, includes high and low voltage alarms with 3 position switch for multiple battery banks
• Meter display has 3 levels of brightness and asleep mode
• Includes 500 amp shunt (No. 8255)
• Panel main bus is rated at 100 amps
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common DC labels
• Can be configured for 12 or 24 volts
• Detailed installation instructions and cutout template
• Dimensions: 5.25"W x 11.25"H

• Digital multimeter
• LED backlighting
• 30 common labels included
