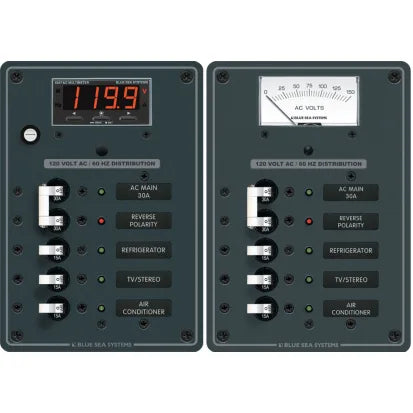

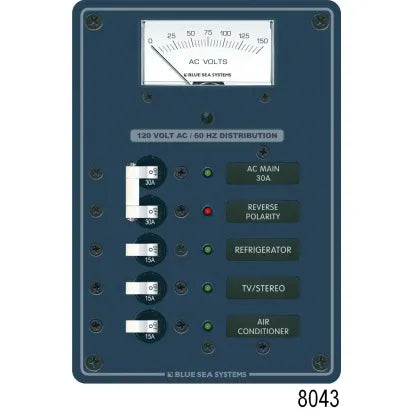

BLUE SEA SYSTEMS | Circuit Breaker Panel With Analog Voltmeter 120V AC Main + 3 Position (71919)

• Panel is ready to install
• All hot, neutral and safety ground buses installed, fully pre-wired
• Red reverse polarity indicating LED
• Includes pre-installed backlighting, LEDs and 30 common AC labels
• One double-pole 30 amp AC main circuit breaker occupies 2 positions
• Three 15 amp single pole circuit breakers installed; there are no empty positions
• Panel main bus is rated at 50 amps
• Analog panels include AC analog voltmeter (No. 9353 for 120V panels displays 0-150 volts)
• Digital panels include AC digital multimeter (No. 8247): displays amperes to 150A, voltage to 270V, frequency to 90Hz and power to 35kW; includes high and low voltage alarms (audio and visual) and high amperage alarms; meter display has 3 levels of brightness and a sleep mode; includes current transformer (coil) (No. 8256)
• Panel dimensions: 5.25"W x 7.50"H

• Analog voltmeter
• Backlit
• Reverse polarity indicator
