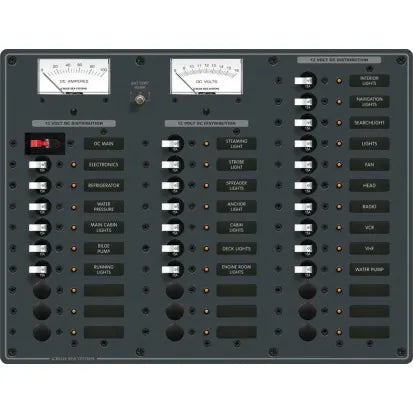

BLUE SEA SYSTEMS | Circuit Breaker Panel DC Main + 32 Position (163307)

100 Amp C-Series circuit breaker provides main circuit protection and master switching for DC branch circuits.
• Panel is ready for installation
• All positive, negative and grounding buses installed, fully pre-wired
• Includes (1) 8-16 Volt DC voltmeter (No.8003) and (1) 0-100 Amp DC ammeter (No.8017)
• 32 DC circuit breaker positions
• 23 x 15 ampere single pole circuit "A- Series" breakers installed; 9 empty positions
• Includes pre-installed backlighting and LEDs
• Detailed installation instructions and cutout template
• Includes set of 30 common DC labels
• Owner upgradeable to 24 volts with No.8240 18-32 volt DC voltmeter
