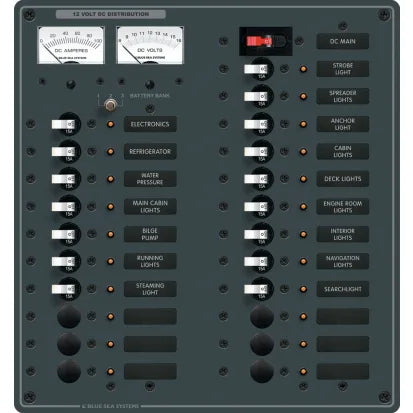

BLUE SEA SYSTEMS | Circuit Breaker Panel DC Main + 22 Position (159793)

100 Amp C-Series circuit breaker provides main circuit protection and master switching for DC branch circuits

• DC voltmeter & ammeter
• LED backlighting
• Includes 30 common DC labels

Features

• Panel is ready for installation
• All positive, negative and grounding buses installed, fully pre-wired
• Sixteen 15 ampere single pole circuit breakers installed; 6 empty positions
• Includes No.8028, 8-16 volt DC micro voltmeter and No.8250, 0-100 amp DC micro ammeter
• Panel main bus is rated at 100 amps DC
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common DC labels
• Owner upgradeable to 24 volts DC with No. 8243, 10-32 Volt DC micro voltmeter
• Detailed installation instructions and cutout template
