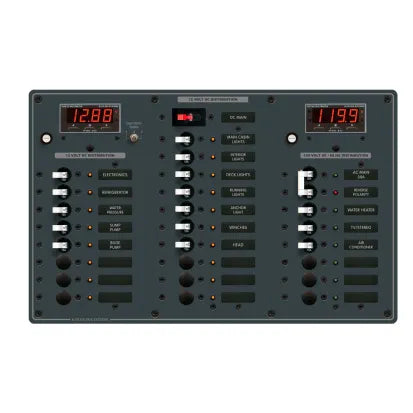

BLUE SEA SYSTEMS | Circuit Breaker Panel AC Main + 6 Positions/DC Main + 18 Positions (135007)

Description

• Ready to install
• All AC and DC buses installed, fully pre-wired
• Label backlighting and all LEDs pre-installed
• Includes set of 30 common AC and 30 common DC labels
• 120 volts AC / 12 volts DC
• Panel main buses rated at: 50 amps AC / 100 amps DC
• Ready for installation of optional AC isolation cover (No. 4029)

• AC and DC digital multimeters
• LED backlighting
• Reverse polarity indicator

Features

• AC digital multimeter (No. 8247) displays amperes to 150A, voltage to 270V, frequency 40-90Hz and power to 45KW, includes high and low voltage and high amperage alarms (both audio and visual)
• Eight AC circuit breaker positions
• One double-pole 30 amp AC main circuit breaker installed
• Three 15 amp single circuit breakers installed; 3 positions empty
• Red reverse polarity indicating LED

• DC digital multimeter (No. 8248) displays amperes to 500A, voltage to 60V, includes high and low voltage alarms with 3-position switch for multiple battery banks
• 100 amp C-Series circuit breaker provides both main circuit protection and master switching for DC branch circuits
• Twelve 15 amp circuit breakers installed; 6 positions empty
