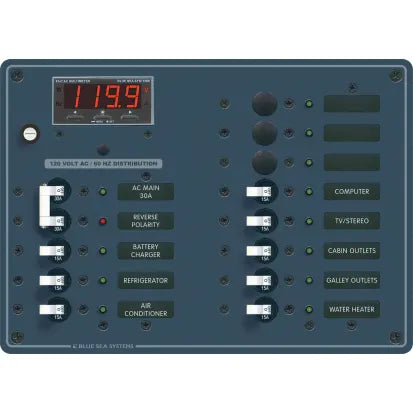

BLUE SEA SYSTEMS | Circuit Breaker Panel AC Main + 11 Positions (135011)

• Panel is ready to install
• All hot, neutral and safety ground buses installed, fully pre-wired
• Red reverse polarity indicating LED
• Includes pre-installed backlighting and LEDs
• Includes set of 30 common AC labels
• One double-pole AC main circuit breaker occupies 2 positions
• Panel main bus is rated at 50 amps
• AC digital multimeter (No. 8247) displays amperes to 150A, voltage to 270V, frequency to 90Hz and power to 35kW
• Includes high and low voltage alarms (audio and visual) and high amperage alarms
• Meter display has 3 levels of brightness and a sleep mode
• Includes current transformer (coil) (No. 8256)
• Panel dimensions: 10.50"W x 7.50"H

• Digital multimeter
• LED backlighting
• Reverse polarity indicator
