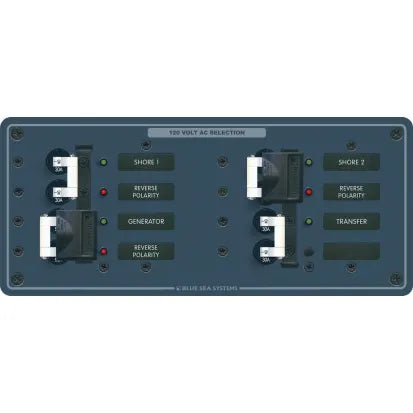

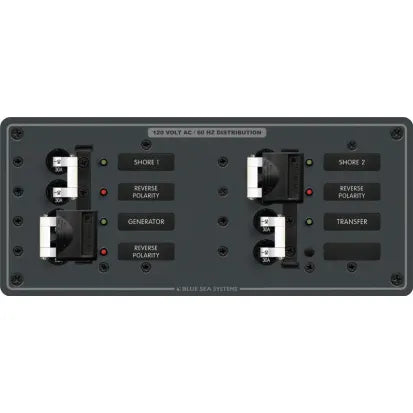

BLUE SEA SYSTEMS | Circuit Breaker Panel 3 Sources Selector/AC Main (183564)

Description

• Active indicator lights
• Reverse polarity indicator
• Prevents 2 AC loads at once

Features

Features two separate AC load groups with transfer switch to combine into one load group. Prevents multiple AC sources from being simultaneously connected.

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage - 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required
• "On" indicating LEDs installed in all circuit positions
• Panel dimensions: 10.50"W x 4.50"H
