BLUE SEA SYSTEMS | Bus Bar 150 Ampere Common Buses (22046)
BLUE SEA SYSTEMS | Bus Bar 150 Ampere Common Buses (22046)
BLUE SEA SYSTEMS | Bus Bar 150 Ampere Common Buses (22046)
BLUE SEA SYSTEMS | Bus Bar 150 Ampere Common Buses (22046)

BLUE SEA SYSTEMS | Bus Bar 150 Ampere Common Buses (22046)

$20.34
Type:

Type
Quantity:

Description

• Stud design provides direct terminal to bus contact for low resistant connection
• Stainless steel studs and screws allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and resistance to corrosion
• UL 94-VO rated (self extinguishing) base material resists high heat
• Voltage rating: 300 VAC maximum/48 VDC maximum
• When seperate cover is used: press on insulating cover attaches to studs and allows unobstructed wire access
• Base material: glass-reinforced nylon

Specifications

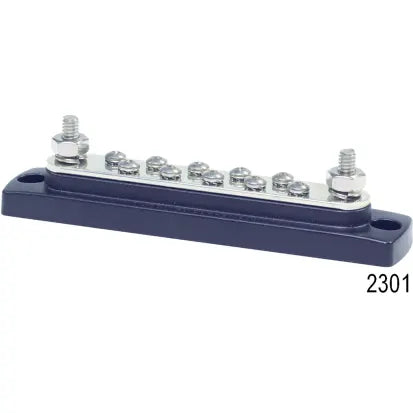

MFG #: 2301 | Type: BusBar 10 x 8-32 | SKU: 22046

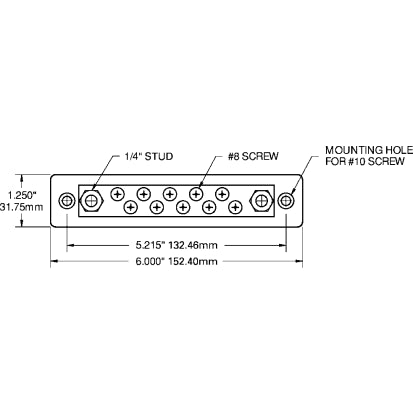

Dimensions: 6.00"L x 1.25"W
Terminal Type: Screw
Type: BusBar 10 x 8-32
Barcodes: 023017, 2301, 10632085023017, 632085023010, 50632085023015

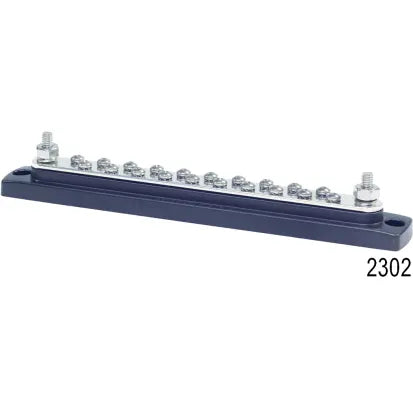

MFG #: 2302 | Type: BusBar 20 x 8-32 | SKU: 22055
Dimensions: 9.25"L x 1.25"W
Terminal Type: Screw
Type: BusBar 20 x 8-32
Barcodes: 10632085023024, 2302, 50632085023022, 632085023027
