BLUE SEA SYSTEMS | Blade Fuse Blocks (168609)

BLUE SEA SYSTEMS | Blade Fuse Blocks (168609)

$70.16

Type:

Variant

Quantity:

Description

• Clear insulating cover with label recess for small format Blue Sea Systems™ labels
• Cover insulates all conductive parts, satisfying ABYC/USCG requirements
• Accepts ATO and ATC fast acting blade type fuses (1 to 30 amps - ideal for sensitive electronics)
• Base material: reinforced polycarbonate
• Cover material: polycarbonate
• Fuse dimensions - 3/4" x 3/4" x 1/5"
• Maximum amperage per circuit - 30 amperes
• Maximum amperage per block - 100 amperes
• Maximum voltage - 32V DC

Specifications

MFG #: 5031 | Type: 12 Circuit with Negative Bus (No Cover) | SKU: 168609

Dimensions: 6.472"H x 3.315"W

Type: 12 Circuit with Negative Bus (No Cover)

Barcodes:

- 632085050313
- 5031
- 10632085050310

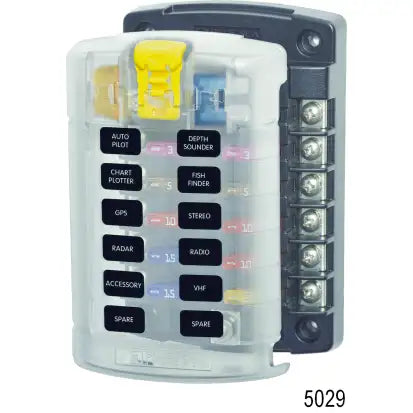

MFG #: 5029 | Type: 12 Circuit | SKU: 141772

Dimensions: 5.230"H x 3.315"W

Type: 12 Circuit

Barcodes

- 10632085050297
- 5029
- 632085050290

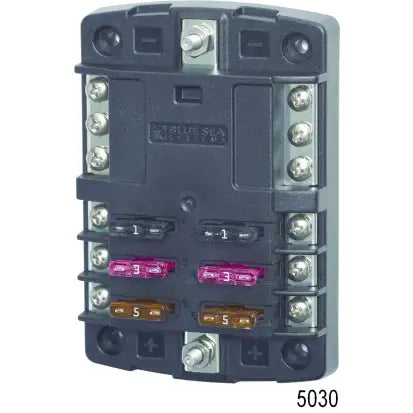

MFG #: 5030 | Type: 6 Circuit with Negative Bus (No Cover) | SKU: 168608

Dimensions: 4.894"H x 3.315W

Type: 6 Circuit with Negative Bus (No Cover)

Barcodes:

- 632085050306
- 10632085050303

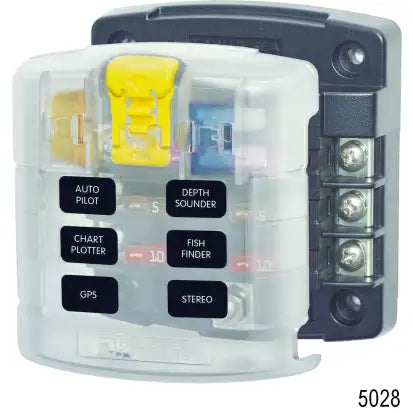

MFG #: 5028 | Type: 6 Circuit | SKU: 141771

Dimensions: 3.652"H x 3.315"W

Type: 6 Circuit

Barcodes: 005632085050283, 10632085050280, 5028, 632085050283

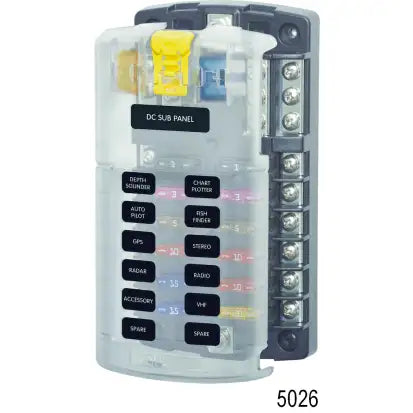

MFG #: 5026 | Type: 12 Circuit with Negative Bus | SKU: 141770

Dimensions : 6.472"H x 3.315"W

Type: 12 Circuit with Negative Bus

Barcodes:

- 5026
- 005632085050269
- 10632085050266
- 632085050269
- 50632085050264

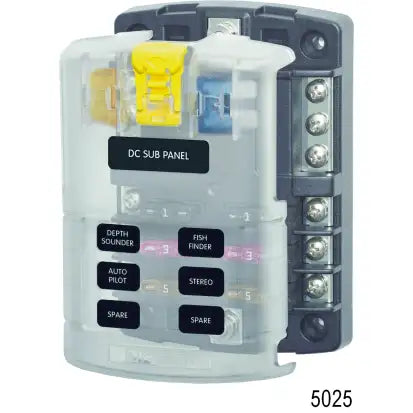

MFG #: 5025 | Type: 6 Circuit with Negative Bus | SKU: 141769

Dimensions : 4.894"H x 3.315W

Type: 6 Circuit with Negative Bus

Barcodes:

- 5025
- 10632085050251
- 50632085050257
- 005632085050252
- 632085050252
- 10632085050259
