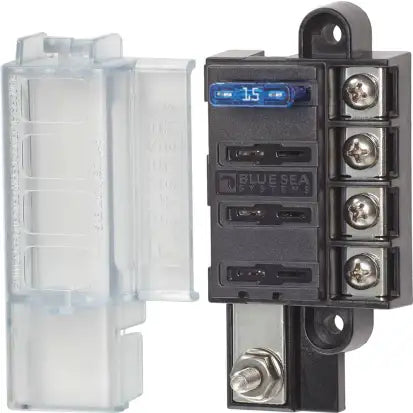

BLUE SEA SYSTEMS | Blade Compact Fuse Blocks (451380)
No. of Circuits:
No. of Circuits
Quantity:
SELECT OPTIONS
No. of Circuits:
No. of Circuits
Quantity:
No. of Circuits:
No. of Circuits
Quantity:
Description
• Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Single side design allows wire entry from one side to minimize footprint
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Includes 4 write-on circuit labels
• Fuses sold separately
Specifications
MFG #: 5045 | No. of Circuits: 4 | SKU: 451380
Circuits: 4
Max Volts: 32V DC
Max. Amps: 100A per Block, 30A per Circuit
Stud Size: #10-32
Barcodes: 50632085050455, 632085050450, 5045, 10632085050457
MFG #: 5046 | No. of Circuits: 8 | SKU: 451381
Circuits: 8
Max Volts: 32V DC
Max. Amps: 100A per Block, 30A per Circuit
Stud Size: #10-32
Barcodes: 320850504672, 632085050467, 10632085050464
