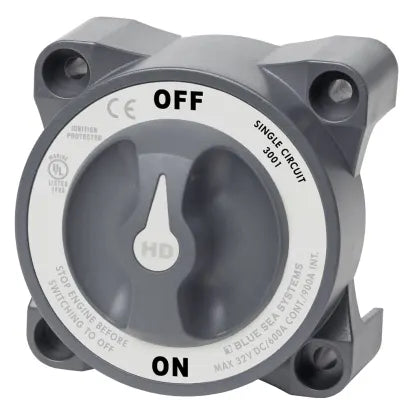

BLUE SEA SYSTEMS | Battery Switch On/Off With AFD (165630)
BLUE SEA SYSTEMS | Battery Switch On/Off With AFD (165630)
BLUE SEA SYSTEMS | Battery Switch On/Off With AFD (165630)

BLUE SEA SYSTEMS | Battery Switch On/Off With AFD (165630)

$109.29
Quantity:

Description

These heavy duty switches are rated at 600 continuous amps - 70% higher than standard switches - and are suitable for large diesel engines.

Features

• Ignition protected - safe for installation aboard gasoline powered boats

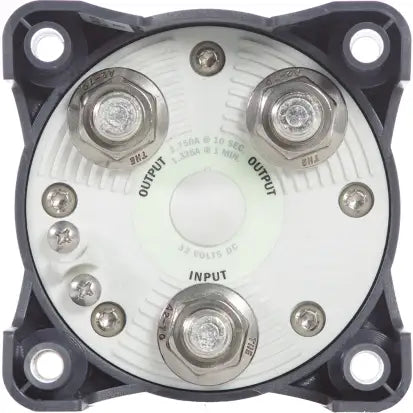

• Corrosion-resistant, one-piece, tin -plated, 1/2" copper studs cannot loosen, and accept multiple cables up to 4/0

• AFD (Alternator Field Disconnect) switch on 3001 protects alternator diodes if the selector switch is inadvertently turned to the "Off" position while the engine is running
• Meets all American Boat and Yacht Council (ABYC) requirements for battery switches
• Rated at IP66 - withstands heavy seas, jets of water

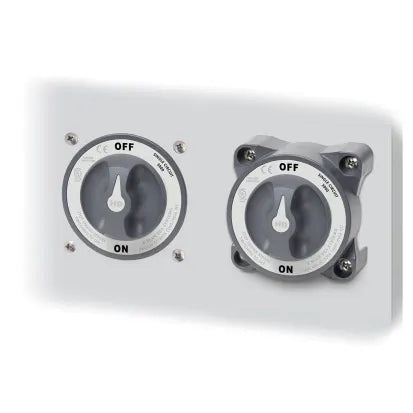

• Case design allows surface or flush mounting
• Dimensions: 3.85"W x 3.85"H x 3.10"D
• Fits Perko and Guest low amperage battery switch hole patterns

Note: Maximum ratings in Specification Table are when using 4/0 cable.

Specifications

MFG #: 3001
AFD: Yes
Battery Inputs: 1
Battery Switch Rating (Using 4/0 Cables): 600A Continuous, 900A Intermittent (5 Min),1750A Cranking (30 Sec)
Dimensions: 3.85"W x 3.85"H x 3.10"D
Positions: 2
Stud: 1/2"
Type: Heavy Duty Switch - On/Off with AFD
Volts: 32V DC Max
Barcodes: 50632085030013, 632085030018
(165630)
