$35.60
Switch Type (Style):

Switch Type (Style)
Quantity:

Description

300 Amps continuous rating for outboards and small gasoline or diesel engines.

Features

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
• Case design allows surface, rear, or front panel mounting options
• Waterproof – rated IP66 from water projected in powerful jets

Specifications

  • MFG #: 6004 | Switch Type (Style): Single Circuit ON-OFF (Locking Key) | Color: Red | SKU: 456820
  • MFG #: 6004200 | Switch Type (Style): Single Circuit ON-OFF (Locking Key) | Color: Black | SKU: 456821
Alternator Field Disconnect: No
Battery Combine: No
Battery Inputs: 1
Cable Clearance: 1.12in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 900A
Dimensions (L x W x D): 2.95" x 2.95" x 3.99"
Intermittent Rating: 500A (5 min)
Maximum Voltage: 48V DC
Mounting Holes: Accept #10 Screw
Switch Position: 2
Switch Style: Locking Key
Switch Type: Single Circuit ON-OFF
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120-in-lb
Barcode: 632085060046

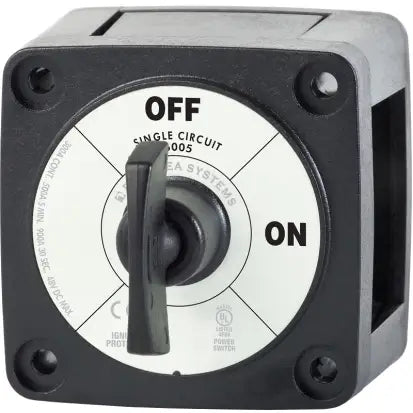

  • MFG #: 6005 | Switch Type (Style): Single Circuit ON-OFF (Key) | Color: Red | SKU: 174079
  • MFG #: 6005200 | Switch Type (Style): Single Circuit ON-OFF (Key) | Color: Black | SKU: 212036
Alternator Field Disconnect: No
Battery Combine: No
Battery Inputs: 1
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 900A
Dimensions (L x W x D): 2.95" x 2.95" x 4.02
Intermittent Rating: 500A (5 min)
Maximum Voltage: 48V DC
Mounting Holes: Accept #10 Screw
Switch Position: 2
Switch Style: Key
Switch Type: Single Circuit ON-OFF
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120-in-lb
Barcodes: 632085060053, 10632085060050, 6005
  • MFG #: 6006 | Switch Type (Style): Single Circuit ON-OFF (Knob) | Color: Red | SKU: 174080
  • MFG #: 6006200 | Switch Type (Style): Single Circuit ON-OFF (Knob) | Color: Black | SKU: 210005
Alternator Field Disconnect: No
Battery Combine: No
Battery Inputs: 1
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 900A
Dimensions (L x W x D): 2.95" x 2.95" x 3.32"
Intermittent Rating: 500A (5 min)
Maximum Voltage: 48V DC
Mounting Holes: Accept #10 Screw
Switch Position: 2
Switch Style: Knob
Switch Type: Single Circuit ON-OFF
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120-in-lb
Barcodes: 632085060060, 005632085060060, 10632085060067, 50632085060065, 6006

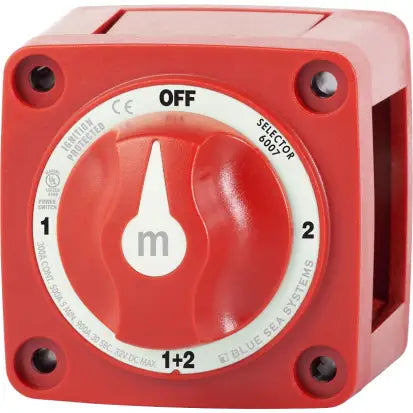

  • MFG #: 6007 | Switch Type (Style): Selector 4 Position (Knob) | Color: Red | SKU: 174081
  • MFG #: 6007200 | Switch Type (Style): Selector 4 Position (Knob) | Color: Black | SKU: 207969
Alternator Field Disconnect: No
Battery Combine: Yes
Battery Inputs: 2
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 900A
Dimensions (L x W x D): 2.95" x 2.95" x 3.32"
Intermittent Rating: 500A (5 min)
Maximum Voltage: 32V DC
Mounting Holes: Accept #10 Screw
Switch Position: 4
Switch Style: Knob
Switch Type: Selector 4 Position
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120-in-lb
Barcodes: B/S 6007, 10632085060074, 50632085060072, 6007, 632085060077

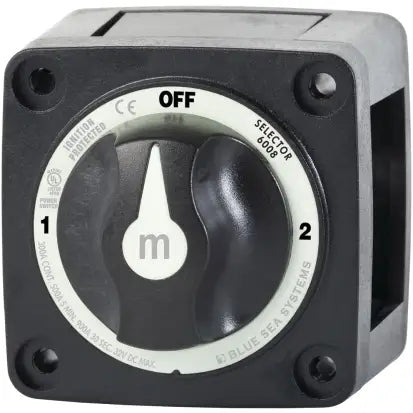

  • MFG #: 6008 | Switch Type (Style): Selector 3 Position (Knob) | Color: Red | SKU: 1012121
  • MFG #: 6008200 | Switch Type (Style): Selector 3 Position (Knob) | Color: Black | SKU: 1021864
Alternator Field Disconnect: No
Battery Combine: Yes
Battery Inputs: 2
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 900A
Dimensions (L x W x D): 2.95" x 2.95" x 3.32"
Intermittent Rating: 500A (5 min)
Maximum Voltage: 32V DC
Mounting Holes: Accept #10 Screw
Switch Position: 3
Switch Style: Knob
Switch Type: Selector 3 Position
Terminal Stud Size: 3/8"-16 (M10)
Barcodes: 50632085060089, 632085060084
  • MFG #: 6010 | Switch Type (Style): Dual Circuit (Knob) | Color: Red | SKU: 174082
Alternator Field Disconnect: No
Battery Combine: No
Battery Inputs: 2
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 675A per circuit
Dimensions (L x W x D): 2.95" x 2.95" x 3.32"
Intermittent Rating: 450A (5 min)
Maximum Voltage: 32V DC
Mounting Holes: Accept #10 Screw
Switch Position: 2
Switch Style: Knob
Switch Type: Dual Circuit
Terminal Stud Size: 3/8"-16 (M10)
Barcodes: 632085060107, 6010, 10632085060104

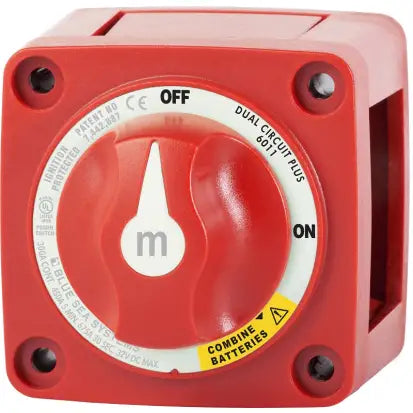

  • MFG #: 6011 | Switch Type (Style): Dual Circuit Plus (Knob) | Color: Red | SKU: 174083
  • MFG #: 6011200 | Switch Type (Style): Dual Circuit Plus (Knob) | Color: Black | SKU: 456071
Alternator Field Disconnect: No
Battery Combine: Yes
Battery Inputs: 2
Cable Clearance: 1.12 in
Cable Size to Meet Ratings: 4/0 AWG
Color: Red
Continuous Rating: 300A
Cranking Rating 30 Sec: 675A per circuit
Dimensions (L x W x D): 2.95" x 2.95" x 3.32"
Intermittent Rating: 450A (5 min)
Maximum Voltage: 32V DC
Mounting Holes: Accept #10 Screw
Switch Position: 3
Switch Style: Knob
Switch Type: Dual Circuit Plus
Terminal Stud Size: 3/8"-16 (M10)
Barcodes: 6011, 10632085060111, 632085060114
