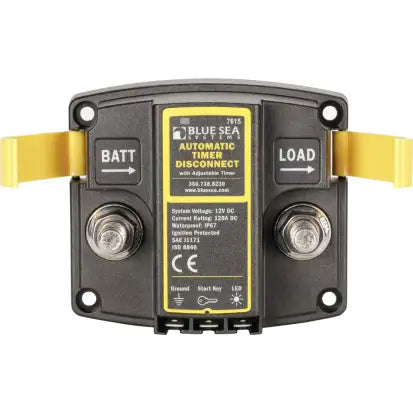

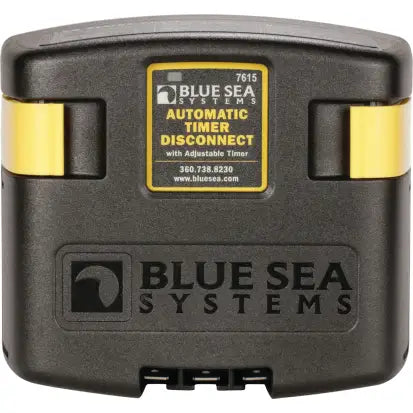

BLUE SEA SYSTEMS | Automatic Timer Disconnect (456825)

Description

Can be configured to be used as one of the following battery saving products

Timer Disconnect
• 12V signal triggers relay to connect battery power to devices
• When signal is removed the timer is activated and will disconnect devices after a preset time
• Timer ranges from 15 minutes to 4 hours
Low Voltage Disconnect
• Senses low battery voltage and automatically disconnects devices
• Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
Automatic Charging Relay
• Automatically combines two batteries when charging, and isolates them when discharging
• Single side sensing design only monitors the voltage of the start battery
• Ideal for auxiliary batteries that are AGM or significantly larger than the start battery
Solenoid
• 12V signal will connect or disconnect relay without any time delay
