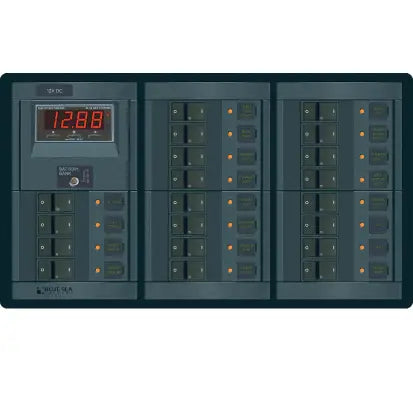

BLUE SEA SYSTEMS | 360 Panel System DC Main + 19 Position Panel With Multimeter (189561)

Part of an entire series of modular panel components, this panel represents one of the most frequently asked for configurations of DC circuit breaker panels.

• Includes digital multimeter
• LED power indicators
• Reverse polarity indication

Features

• 100A Main C-Series flat rocker circuit breaker installed
• (31) 15 amp A-Series flat rocker circuit breakers installed
• Digital multimeter (B/S 8248) measures amps, volts; includes high/low voltage audio and visual alarms
• Multimeter has provision for 3 battery banks
• Includes easy-to-change, square format backlight label set (B/S 4205) with 30 common labels
• LEDs on each circuit illuminate to indicate "On" position and/or reverse polarity
• Snap-on end plates conceal mounting screws
• 12 volts; 24 volts available on custom panels
