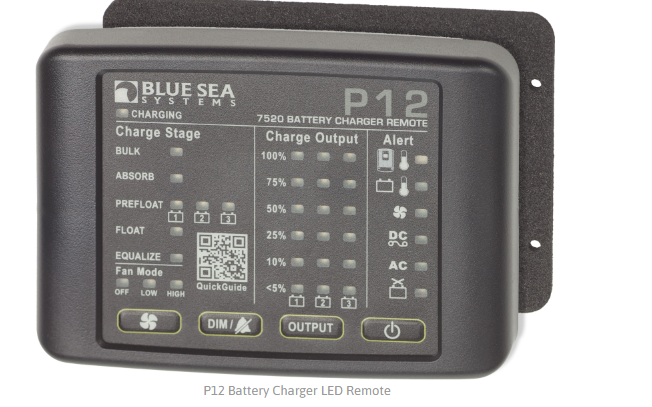

BLUE SEA SYSTEMS | P12 Battery Charger LED Remote (7520)
Quantity:
SELECT OPTIONS
Quantity:
Description
LED Indicators
- Charging: Quick check confirms charging
- Charge Stage: Displays charging stage
- Equalize: Indicates Equalization mode
- Fan Mode: Indicates internal fan mode
- Charge Output: Indicates the output current of each battery
- Alert: Provides alert status for quick diagnosis
Four Control Buttons
- Fan: User adjustable settings (Off, Low, or High)
- Dim/Alarm: LED brightness and alarm silence
- Output: User adjustable to lower AC current draw
- Standby: Puts charger in standby mode
Specifications
| Minimum Operating Temperature | -20° C |
| Maximum Operating Temperature | 60° C |
| Minimum Storage Temperature | -30° C |
| Maximum Storage Temperature | 70° C |
| Communications Cable | Cat5e |
| Communications Protocol | Proprietary |
| Maximum Cable Length | 150ft (45.72 m) |
| Operating Current | <300mA sourced from charger |
| Height | 3.01in (76.45 mm) |
| Width | 4.15in (105.41 mm) |
| Depth | .95in (24.13 mm) |
(7520)
