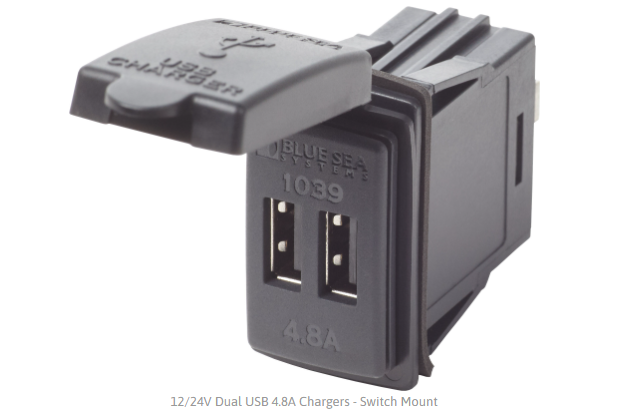

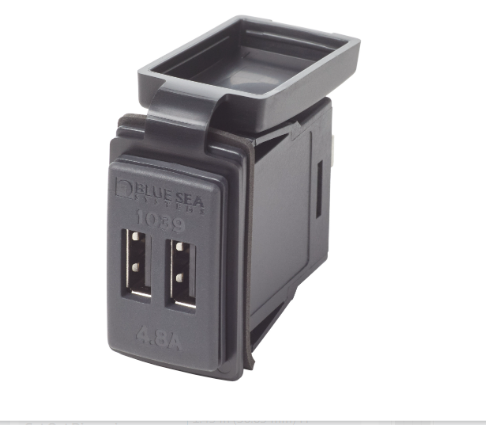

BLUE SEA SYSTEMS | 12/24V Dual USB 4.8A Chargers Switch Mount (1039)
Quantity:
SELECT OPTIONS
Quantity:
Description
Intelligent device recognition allows rapid charging of phones, tablets, or other mobile devices
- Charges at the speed required by specific devices
- Internal filtering for reduced electronic interference
- Over temperature protection
- Protective dust cap keeps debris and moisture out
- Potted for the harsh marine environment

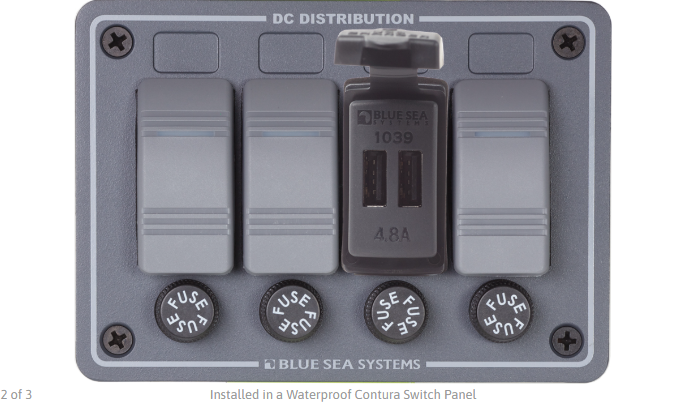

- Mounts in an existing contura switch aperture
Specifications
| Maximum Output Current | 4.8A DC (total) |
| Input Voltage | 12V DC 24V DC |
| Output Voltage | 5V DC ±5% |
| Cut Out Dimensions | 1.45 in (36.83 mm) H 0.83 in (21.08 mm) W |
| Input Voltage Range | 9-32V DC |
| IP Rating | IP45 (with cover closed) |
| Parasitic Current Draw | 1mA |
| Port Configuration | Intelligent Device Recognition |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Thermal Overload Protection | Yes |
(1039)
