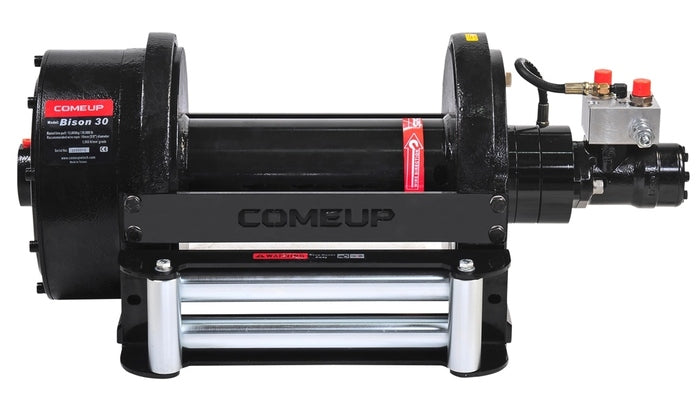

COMEUP WINCH | Bison 30 Hydraulic Winch Long Drum

COMEUP WINCH | Bison 30 Hydraulic Winch Long Drum

$5,775.95
Quantity:

Part Number 683435





Line Pull and Rope Capacity:

Layer of Wire Rope Pull by Layer,
kg / lb		 Total Rope on the Drum, m / ft Line Speedat 60 l/min (15.9 g/min ), mpm / fpm
1st 13,600 / 30,000 11 / 36 5.0 / 16
2nd 11,438 / 25,216 25 / 82 5.9 / 19
3rd 9,864 / 21,745 40 / 131 6.9 / 23
4th 8,670 / 19,115 58 / 190 7.8  / 26
5th 7,735 / 17,052 75 / 246 8.8 / 29



Specifications:

  • Rated Line Pull 30,000lb (13,600 kg) SAE J706 ratings
  • Line Speed (at 1st layer of rope) 16 fpm at 15.9 g/min (5.0 mpm at 60 l/min)
  • Operation Pressure 2,540 psi / 170 bar
  • Max Oil Flow 15.9 g/min (60 l/min)
  • Hydraulic Motor 9.5 cu in (155.7 cc)
  • Gear Ratio 2-stage planetary gear 41:1
  • Winch Construction Cast housings with steel drum
  • Clutch (Freespooling) Output shaft disengaged
  • Brake Multi-Disc Brake (MDB) patented
  • Rotation of Winch Wire rope shall be under-wound orientation only
  • Drum Barrel Diameter 6" (152.5 mm)
  • Drum Flange Diameter 13.5" (343 mm)
  • Distance Between Flanges 14" (355.6 mm)
  • Mounting Bolt Pattern 7.5" x 18" (190.5 x 457.2 mm) ; 10.5" x 18" (266.7 x 457.2 mm)
  • Wire Rope Recommended 5/8" x 246' (16 mm x 75 m ) - 1,960 N/mm2 breaking strength of 40,167 lbf (179 kN) required for SAE J706 ratings
  • Winch Weight 434 lbs (197 kg)
  • Gross Weight 518 lbs (235 kg)
  • Box Dimensions 40.9" x 24.4" x 20.1" (1,040 x 620 x 510 mm)
