NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
Description

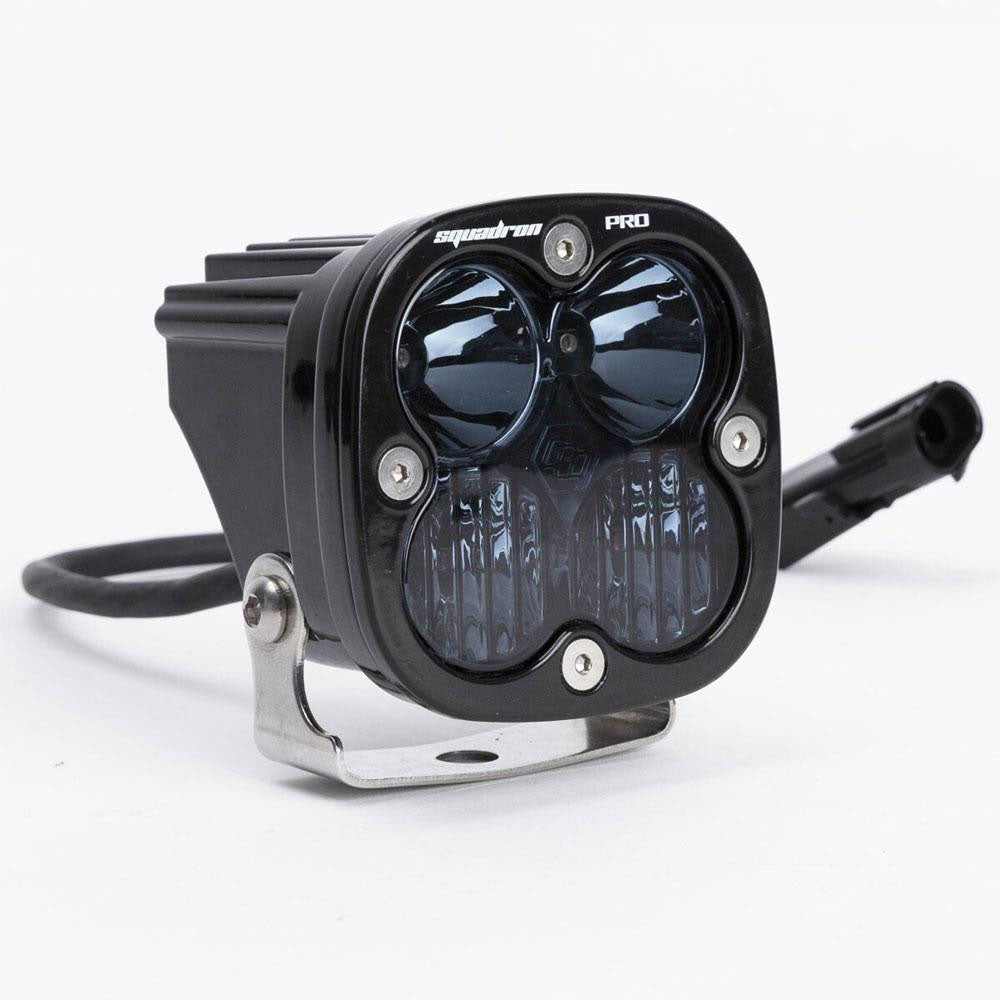

Although compact at 3 inch by 3 inch, don’t be fooled by its size, the Baja Designs Squadron Pro IR comes in 850nm or 940nm, and is more powerful than most larger lights on the market today. While compact in size the Squadron Pro IR is equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance. This light is perfect for covert applications such as military, hunting, or where stealth is needed during the night while using night vision goggles, or NODs. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. USPTO Reg No. 5,766,659 NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
ClearView – All the Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
Specifications
SKU: 497073
Dimensions
| Depth (in.) |
2.760 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Driving/Combo; IR 850nm |
| Housing Color |
Black |
| Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color |
Infrared |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High (1800mW) |
| Lighting Quantity |
4 |
| Lighting Technology |
Osram 850nm LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro Infrared LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 497093
Dimensions
| Depth (in.) |
2.760 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Specifications
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Driving/Combo |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Driving/Combo; IR 940nm |
| Housing Color |
Black |
| Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color |
Infrared |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High (1700mW/sr; 3960mW) |
| Lighting Quantity |
4 |
| Lighting Technology |
Osram 940nm LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro Infrared LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 497076
Specifications
| Housing Material |
Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color |
Infrared |
| Lens Material |
Hardcoated Polycarbonate |
| Light Quantity |
1 |
| Lighting Modes |
High (1800mW) |
| Lighting Quantity |
4 |
| Lighting Technology |
Osram 850nm LED |
| Lighting Type |
Forward Projecting |
| Mounting Hardware Included |
Yes |
| Mounting Hardware Material |
Stainless Steel |
| Overvoltage Protection |
Built-In |
| Product Type |
Squadron Pro Infrared LED Light Pod |
| Wattage (W) |
41.400 |
| Wiring Harness Included |
No |
| Amperage Rating (A) |
3 |
| Average Rated Life (hr.) |
49,930 |
| Beam Pattern |
Work/Scene |
| Bezel Material |
Billet Machined Aluminum |
| Brightness (Lumens) |
4095 |
| Description |
Work/Scene; IR 850nm |
| Housing Color |
Black |
Standards & Compliance
| Standards/Compliance (Durability) |
Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) |
IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) |
IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) |
2.760 |
| Height (in.) |
3.070 |
| Length (in.) |
3.070 |
| Weight (lbs.) |
0.750 |
Installation instructions
Baja Designs 497073 Installation Sheet
Baja Designs 497076 Installation Sheet
Baja Designs 497093 Installation Sheet
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
