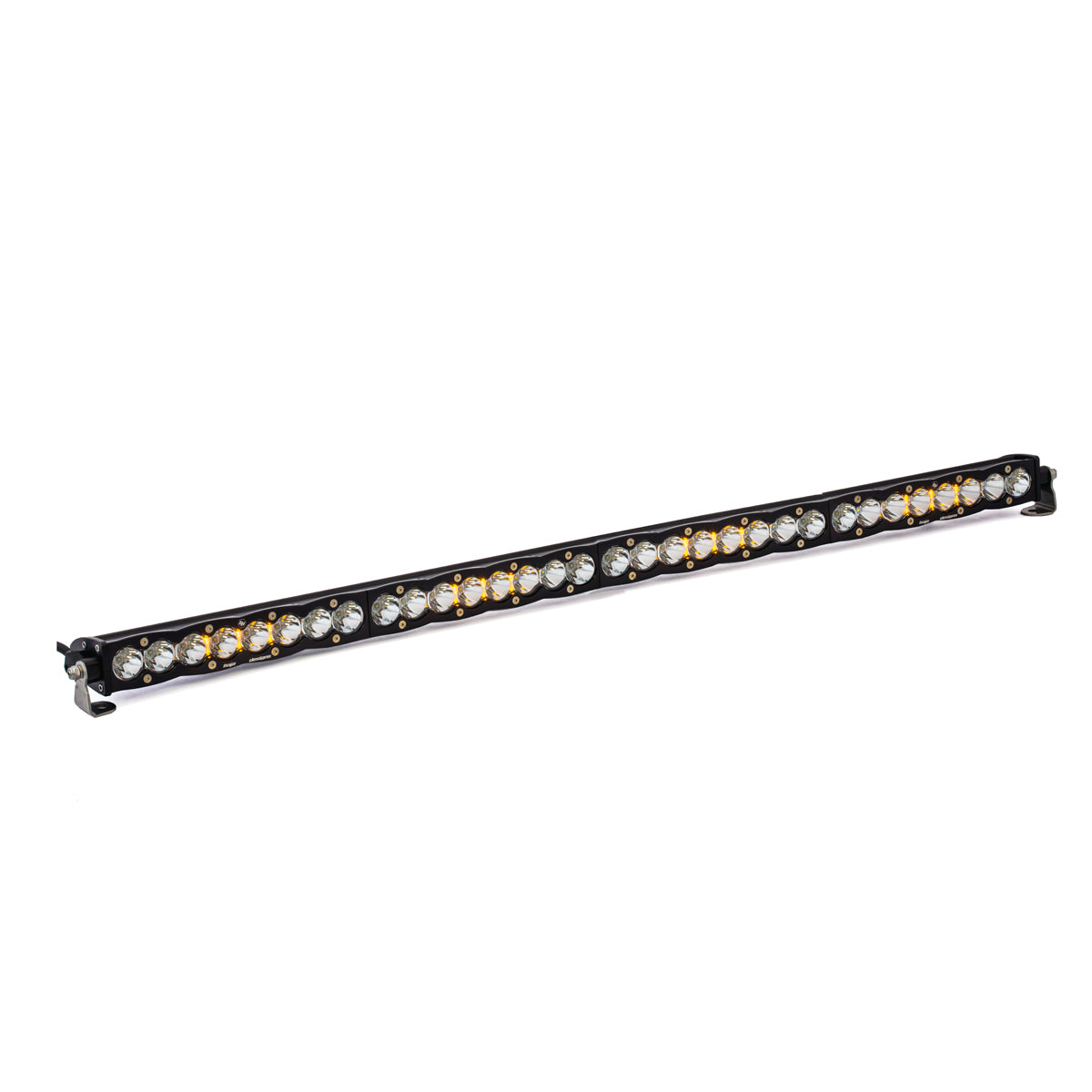

BAJA DESIGNS | S8 LED 40" Light Bar

Sale price$1,187.90
Beam Pattern:

Beam Pattern

Color:Amber
Baja Designs S8/IR Wire Harness w/Mode, 2 Bar max:

Baja Designs S8/IR Wire Harness w/Mode, 2 Bar max

Quantity:

Description:

Baja Design’s latest LED light bar comes with a few new perks! Enjoy the clean aluminum frame with 25,400 lumens of pure power, low amp draw of 16 amps, and nearly 50,000 hours of LED life. The S8 also features high performance, proprietary reflectors, an amber backlit feature, and a unique scalloped housing design. The S8 is backed by our 30 Day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in purchase protection!

Baja Designs Features:
Satisfactions Guarantee –30 Day Money Back
Guarantee
Limited Lifetime Warranty– Complete Purchase Protection
uService®– Replaceable Lenses And Optics
ClearView®– All The Light, Right Where You Need It.
MoistureBlock– Waterproof, Rain Proof, Submersible
CopperDrive®– Only LED Driven At 100%
5000K Daylight– Less Driver Fatigue, Natural Color

Specifications:
Lumens: 25,400 Utilizing 32 Cree LEDs
Wattage/Amps:  240W / 16A
Dimensions: 40” x 3” x 1.6”
Weight: 8.65 lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)

(S8 Patent D780,964)


Includes:
·S8 40” LED Light Bar
·Mounting Brackets

Please note that this light does NOT include a harness and the applicable harness to this light is 640122


Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
