BAJA DESIGNS | RAM 3500 & 2500 2019-2024 Squadron Sport Fog Pocket Light Kit Big Horn
Lens Color
SELECT OPTIONS
Lens Color
Lens Color
Description
Light Pattern

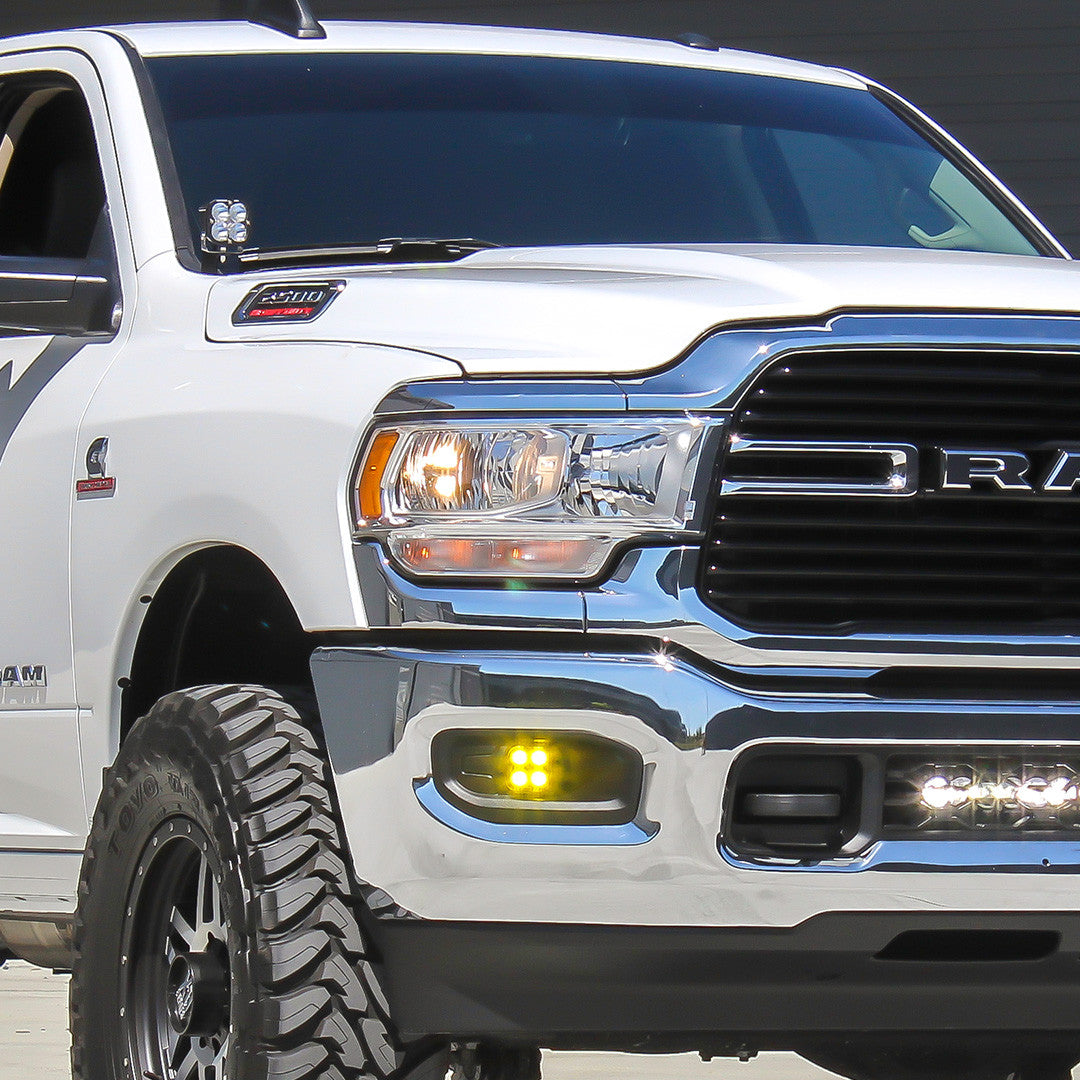

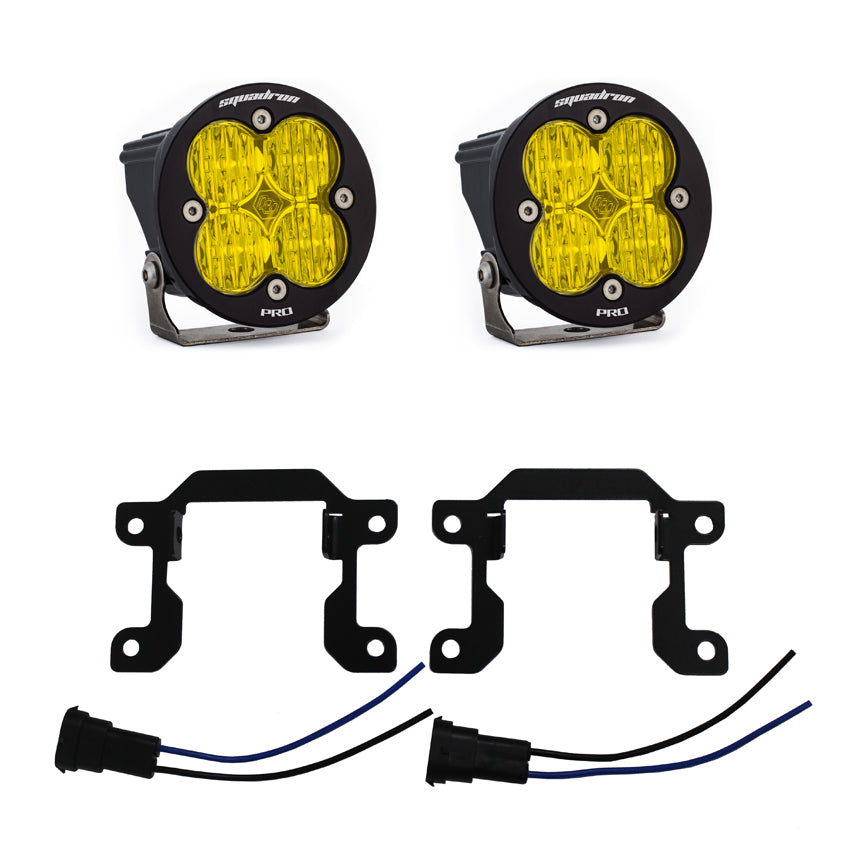

The Baja Designs Fog Pocket kit is the perfect mix of high-quality on and off-road performance for your 2500/3500 Big Horn! Available in White or Amber, this kit utilizes the factory fog pocket location to pack a Squadron Sport pushing 3,162 raw lumens each. This kit is controlled by the factory fog switch. If you're looking to add not only safety but lighting performance this is your kit!
- If the vehicle was not originally equipped with the halogen fog lights, the following parts must be purchased:
- Fog Brackets (All Trim levels): 68449383AA
https://www.moparpartscorp.com/oem-parts/mopar-fog-lamp-bracket-kit-68449383aa
AND
Fog Bezels (Not Equipped with parking sensor): 68449341AA
https://www.moparpartscorp.com/oem-parts/mopar-fog-lamp-bezel-kit-68449341aa
OR
Fog Bezels (Equipped with parking sensor): 68449343AA
https://www.moparpartscorp.com/oem-parts/mopar-fog-lamp-bezel-kit-68449343aa
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
