BAJA DESIGNS | RAM 3500 & 2500 2019-2024 OnX6+ 20 Inch Grille Lower Light Bar Kit (448031)
Lens Color:
Lens Color
Quantity:
SELECT OPTIONS
Lens Color:
Lens Color
Quantity:
Lens Color:
Lens Color
Quantity:
Description
Light Pattern

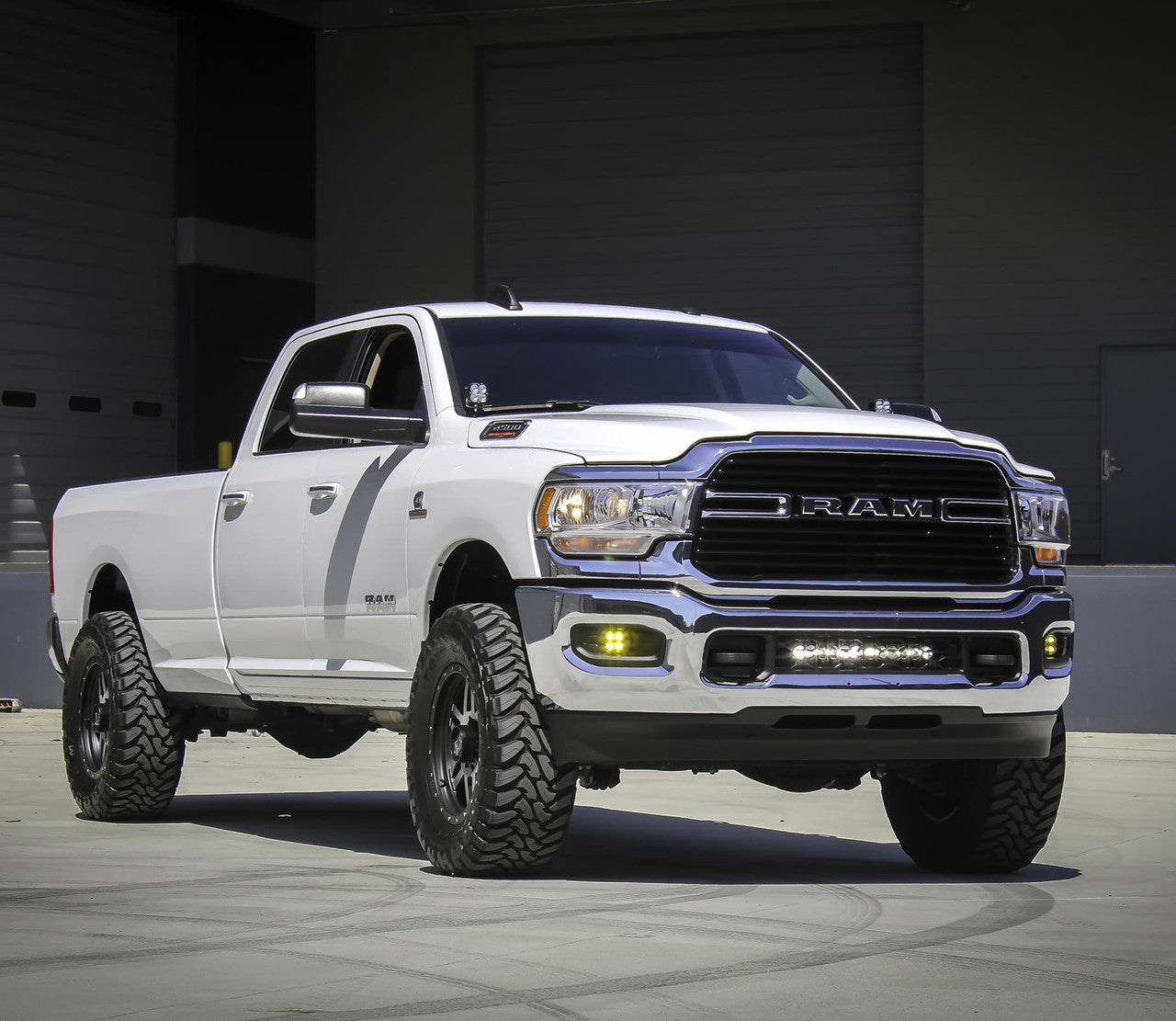

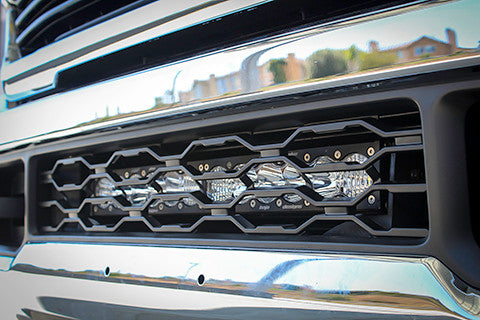

Looking for the ultimate lighting kit for your HD Ram? Look no further! The Baja Designs OnX6+ 20-inch lower grille light bar kit is ready to illuminate the night. Desiigned to fit in the lower grille of your 2019-2024 RAM 2500/3500 truck, it includes everything you need for a clean install. The light, wiring harness, mounts and all necessary hardware make installation of this kit simple and easy. This kit is mounted in the lower grille, and mounting the light doesn't require any drilling or modifications to your vehicle. Backed by our 30-Day satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection.

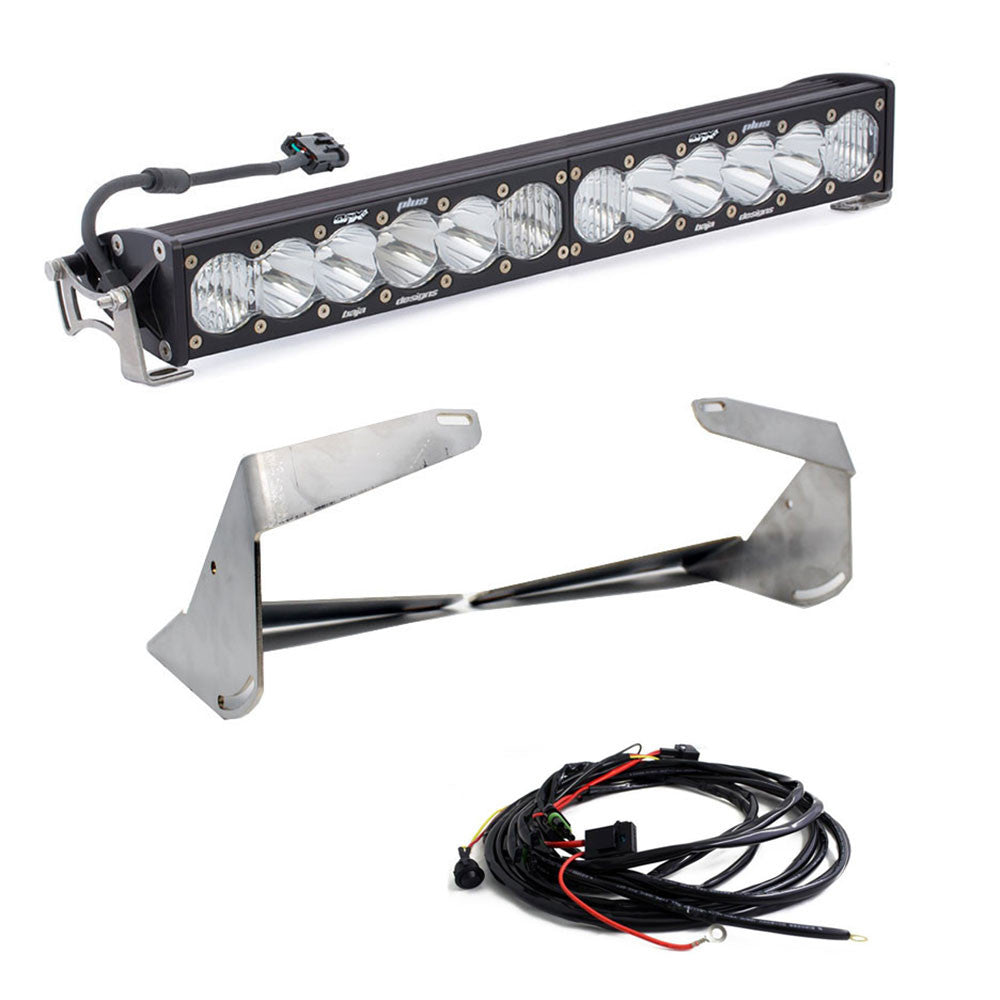

Kit Includes:
- OnX6+ 20-Inch Light Bar Clear Driving Combo (x1)
- Mounting Brackets (x2)
- Wiring Harness - 640115 (x1)
- All Necessary Moutning Hardware
FITS
Ram 2500/3500 2019-2024
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 30 |
| Weight (lbs.) | 11.45 |
Specifications
| Amperage Rating (A) | 21.7 (High); 17.1 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 31,910 (High); 25,450 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 18 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 30 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 281 (High); 225 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation instructions
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
