BAJA DESIGNS | RAM 1500 Rebel 2019-2024 & 1500 TRX 2021-2024 LP9 Pro Bumper Light Kit (448044)
Light Pattern:
Light Pattern
Lens Color:
Lens Color
Quantity:
SELECT OPTIONS
Light Pattern:
Light Pattern
Lens Color:
Lens Color
Quantity:
Light Pattern:
Light Pattern
Lens Color:
Lens Color
Quantity:
Description

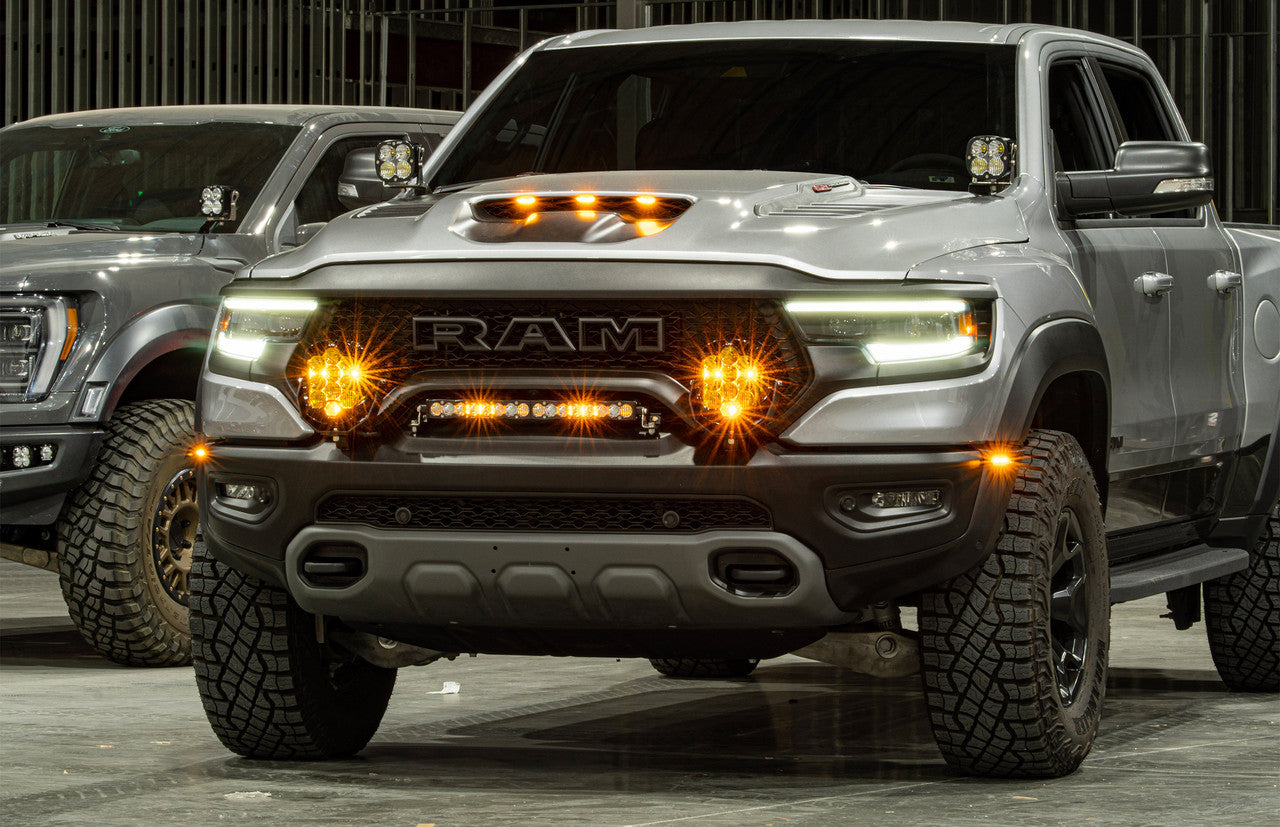

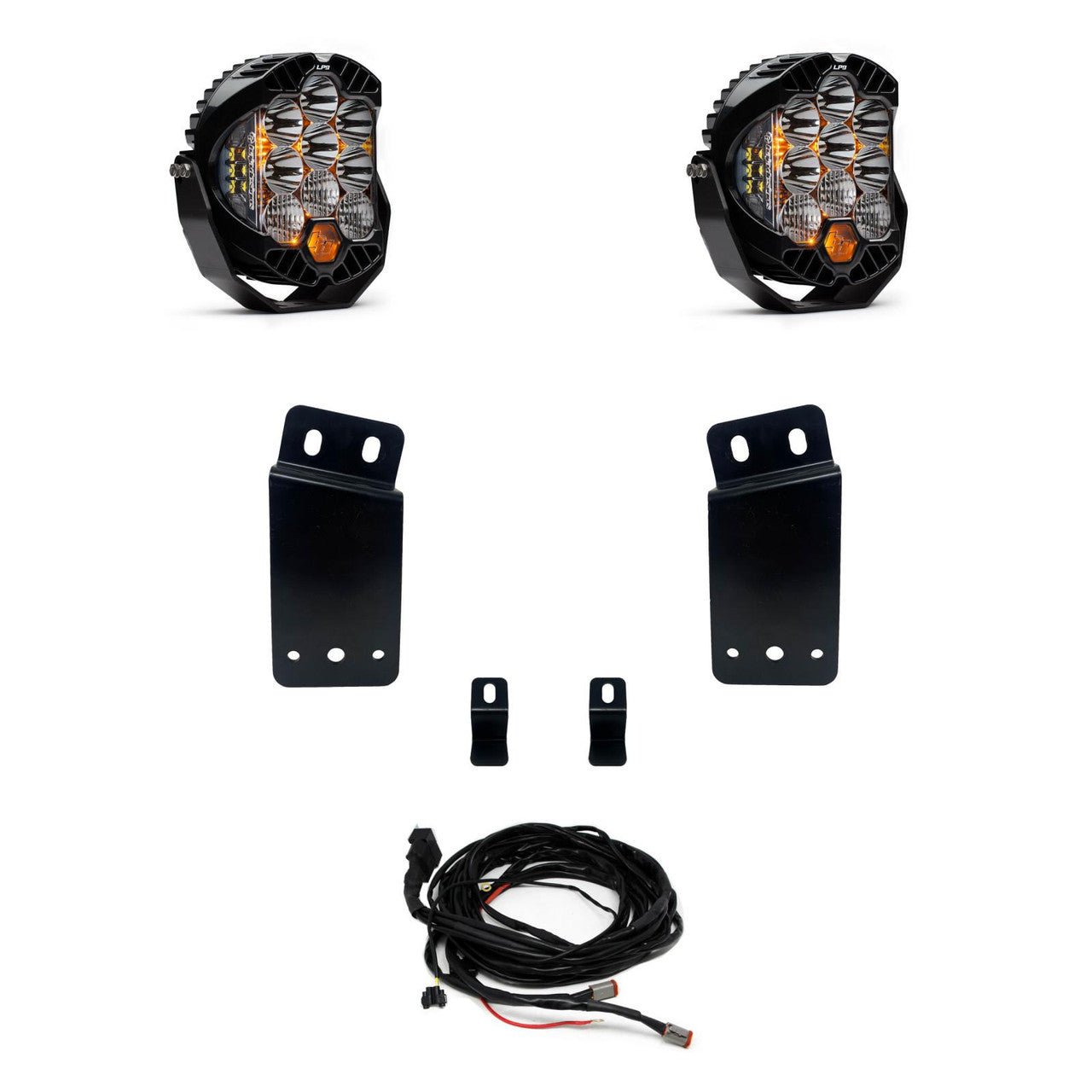

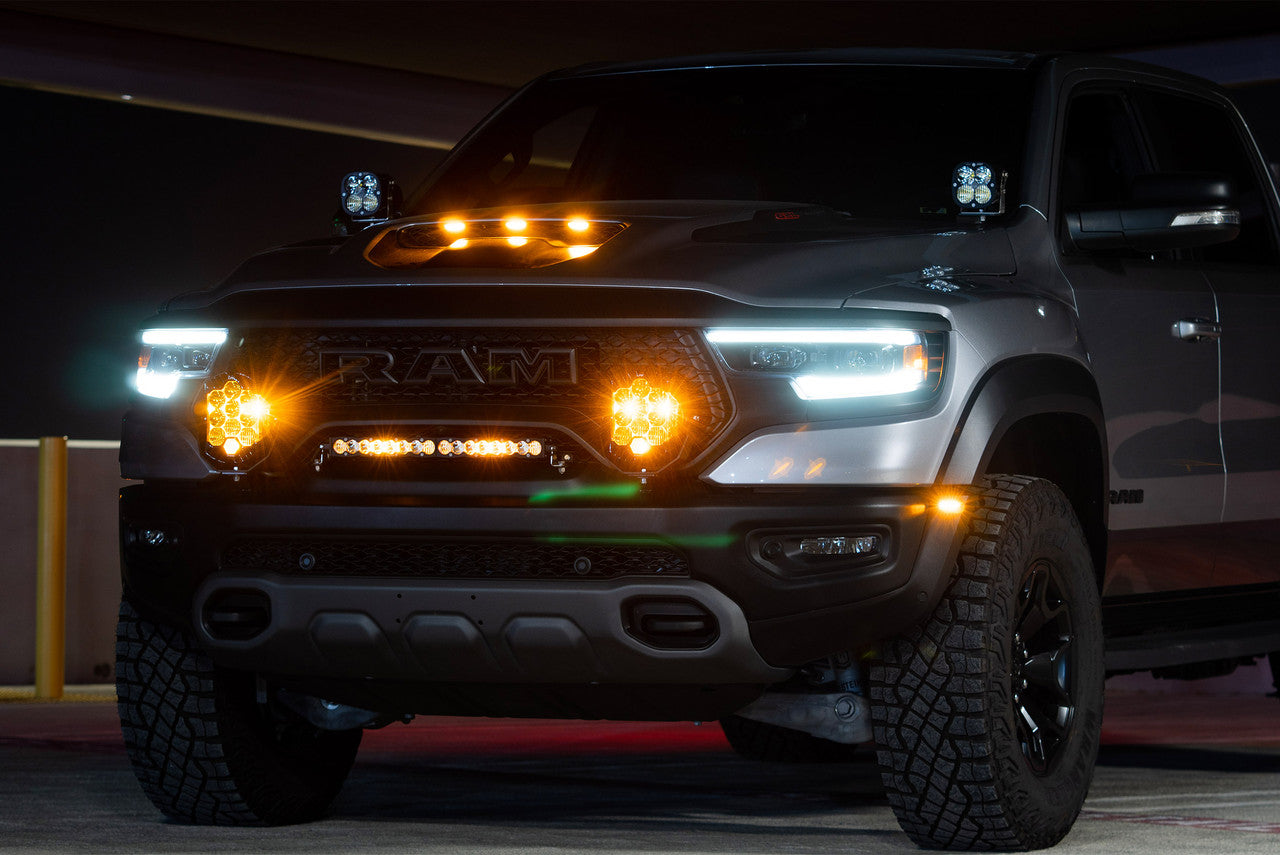

The Ram 1500 TRX LP9 Bumper Kit gives you all the off-road performance and a cool look with our amber back-light feature for your truck. This kit utilizes two LP9 Pros in a clear Driving Combo lens pattern, giving you a total of over 22,000 lumens. This kit also includes mounting brackets and upfitter switched to utilize your OEM upfitter switches.
FITS
Ram 1500 TRX 2021-2024
Ram 1500 Rebel 2019-2024
Specifications
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP9 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 124.200 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 9 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.200 |
| Backlight Wattage (W) | 2.800 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 12547 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
Standards & Compliance
| Patent No. | 5,504,603 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.250 |
| Height (in.) | 8 |
| Length (in.) | 8 |
| Weight (lbs.) | 6.500 |
