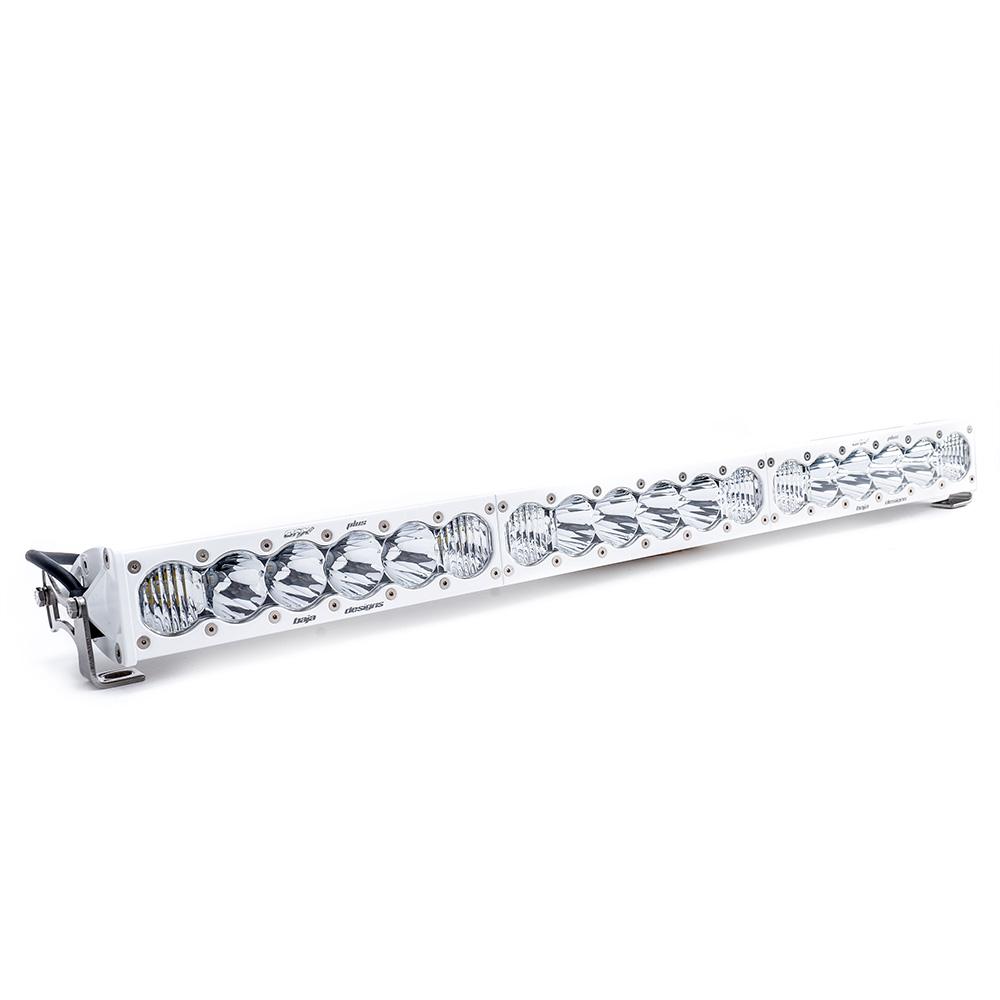

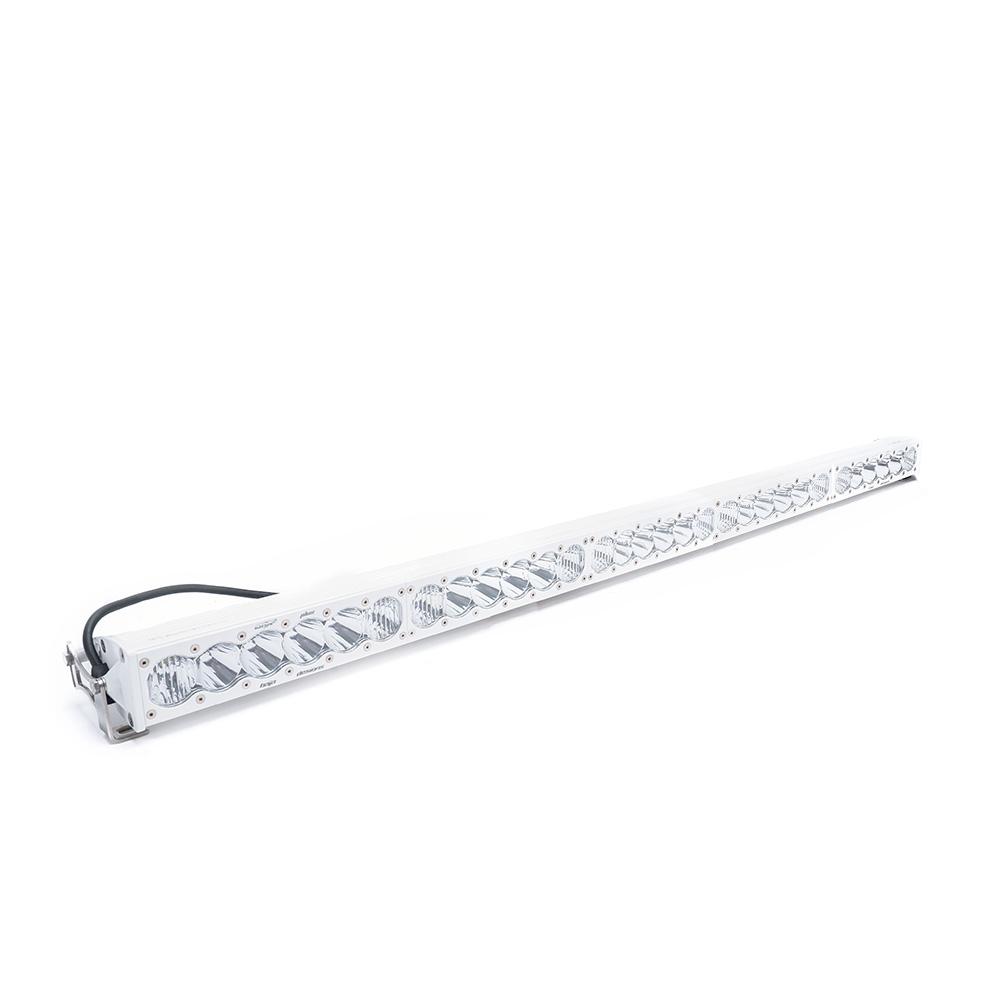

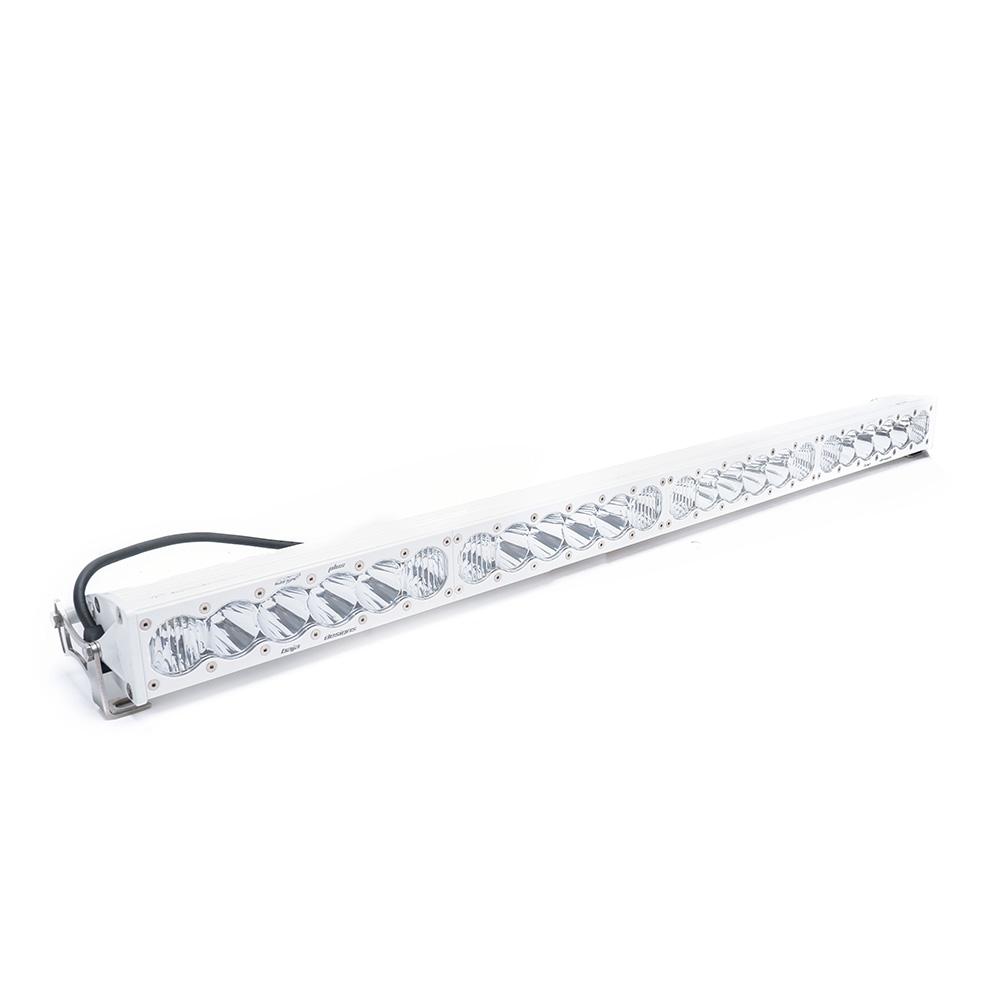

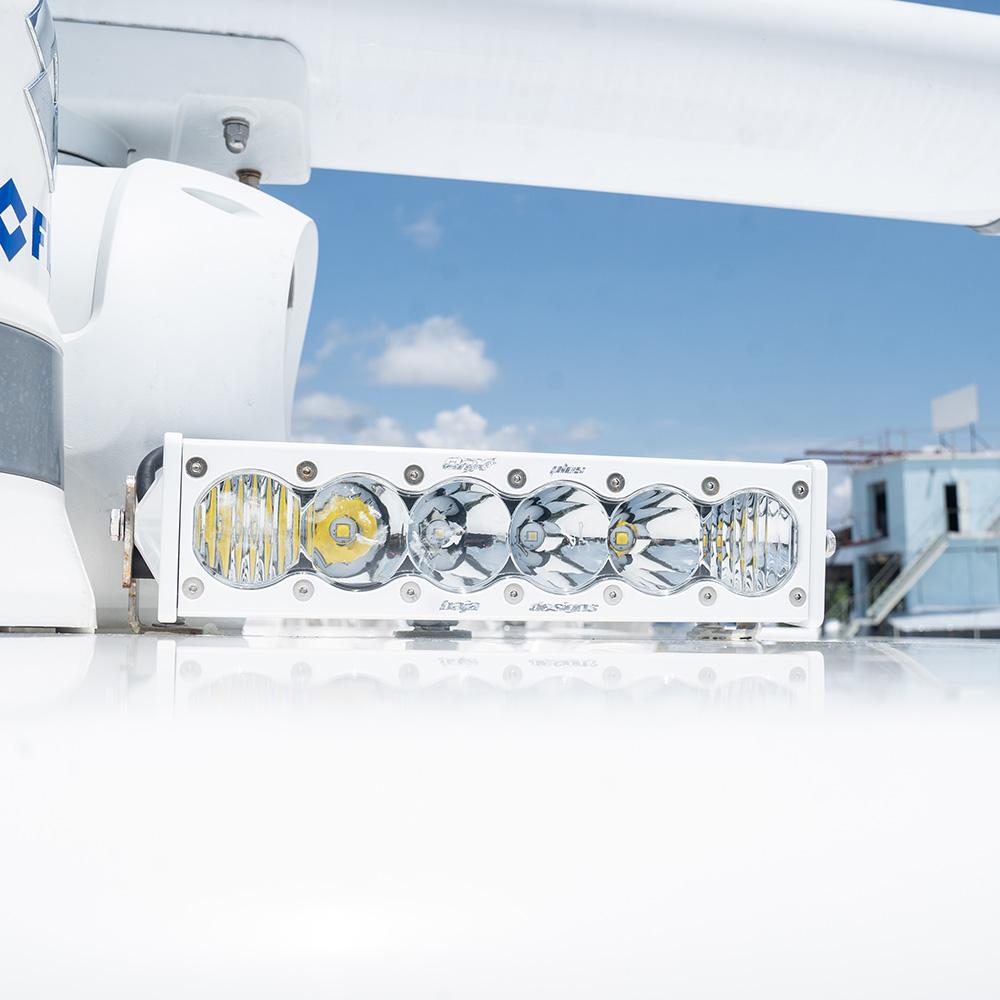

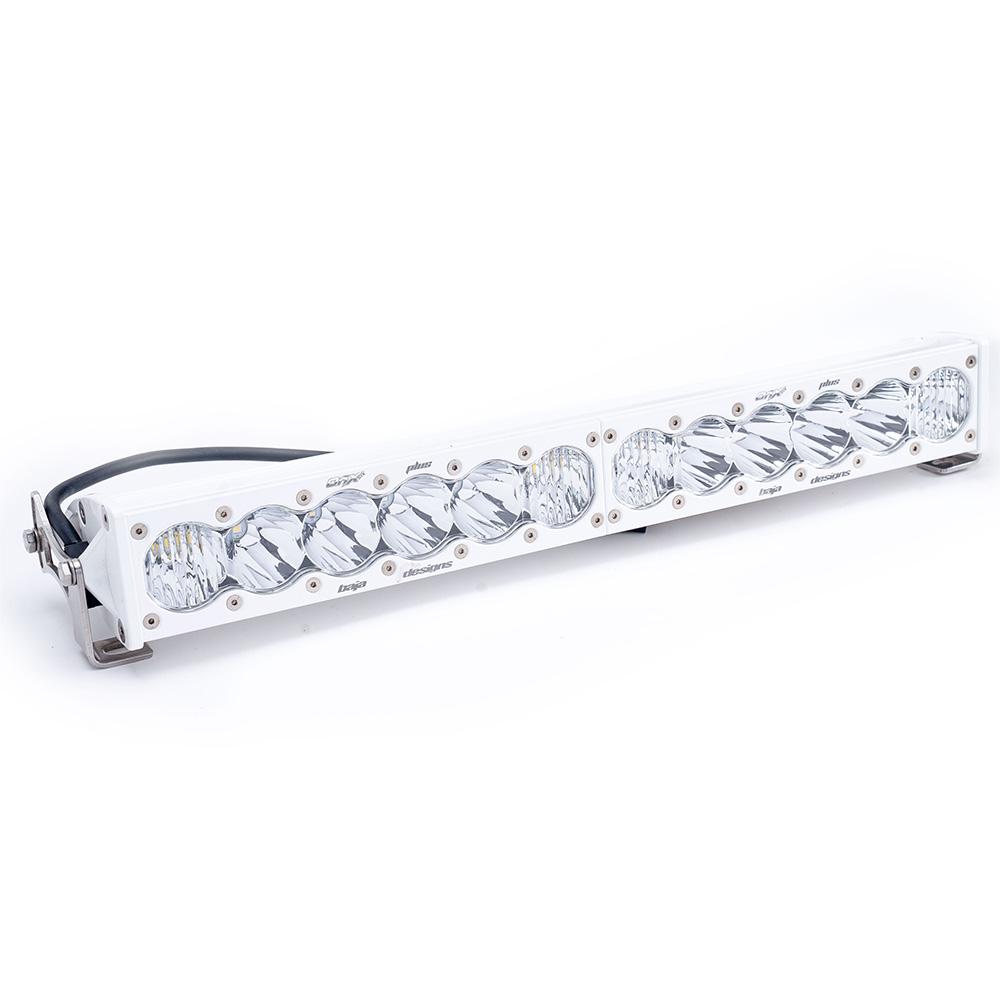

BAJA DESIGNS | OnX6+ White Straight LED Light Bar - Universal
Size
Light Pattern
Lens Color
SELECT OPTIONS
Size
Light Pattern
Lens Color
Size
Light Pattern
Lens Color
NOTE: Does NOT include a harness. Add the applicable wiring harness 640115 (On/Off 3-pin) or to access the hi/lo function 640119 (On/Off w/mode switch) for this light. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. 640119 OnX6+ wiring harness must be used for 30-50in. OnX6+
Description
The OnX6+ white LED light bar integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6 plus LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
NOTE: This light does NOT include a harness To access the High/low light function the applicable wiring harness is 640119. *640115 On/Off OnX6+ wiring harness is only applicable for 10-20in. OnX6+. *640119 OnX6+ wiring harness is applicable for 30-50in. OnX6+.
Specifications
SKU: 451003WT
Dimensions
| Depth (in.) | 4.290 |
| Height (in.) | 2.690 |
| Length (in.) | 10 |
| Weight (lbs.) | 4.250 |
Specifications
| Amperage Rating (A) | 7.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 10,817 (High); 9,230 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | White |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 6 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 10 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 106.260 |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation instructions
Baja Designs 453003WT Installation Sheet
Baja Designs 452003WT Installation Sheet
Baja Designs 451003WT Installation Sheet
Baja Designs 454003WT Installation Sheet
Baja Designs 455003WT Installation Sheet
Disclaimer
Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
