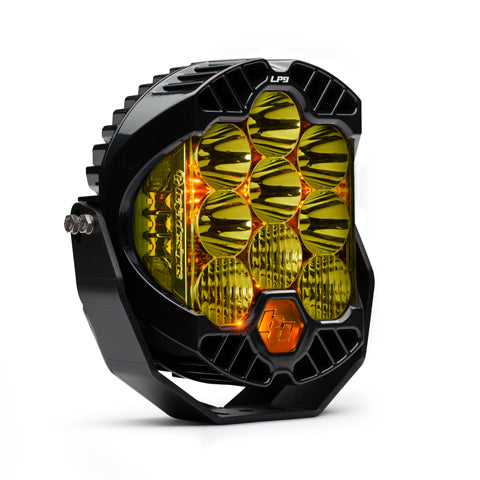

BAJA DESIGNS | LP9 Pro LED Auxiliary Light Pod Universal
SELECT OPTIONS
Please call to configure Light Pattern, Lens Color and Backlight options
Light Pattern:
- Spot
- Driving/Combo
Lens Color:
- Clear
- Baja Amber
Backlight:
- Amber
- Red
- Blue
- Green
Description

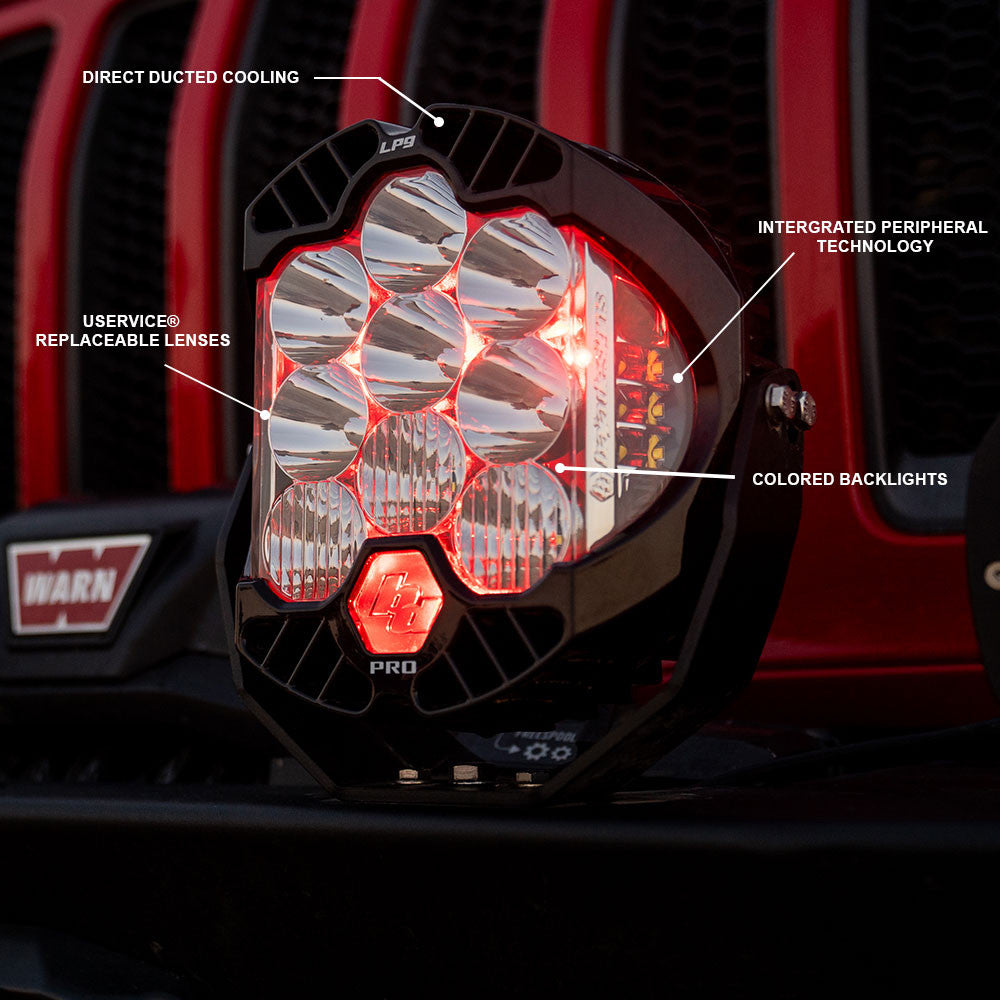

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDs and 6 LEDs for Integrated Peripheral Technology (IPT) for a total lumen output of 12,547 at 9A. The IPT provides an incredible 200-degree spread of usable light and the housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

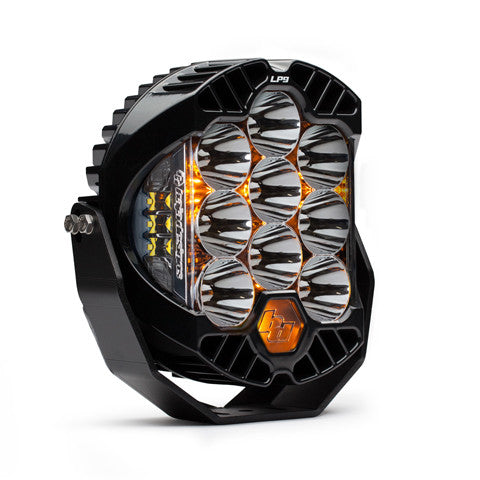

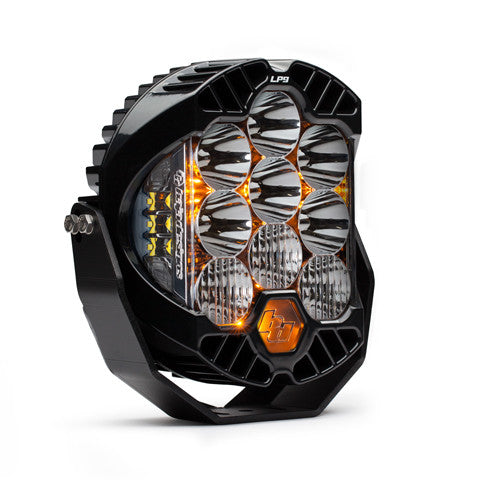

The LP9 Pro is available in multiple patterns to suit your needs. The driving/combo pattern provide maximum trail coverage in a single light. The driving/combo pattern is equipped with both driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zones, 1,2, 3). The Spot pattern is a longer and narrower 8-degree beam focus for illumination further down the trail or road (Lighting Zone 4 & 5) and is designed to be used in conjunction with additional wide cornering and/or driving/combo auxiliary lights.

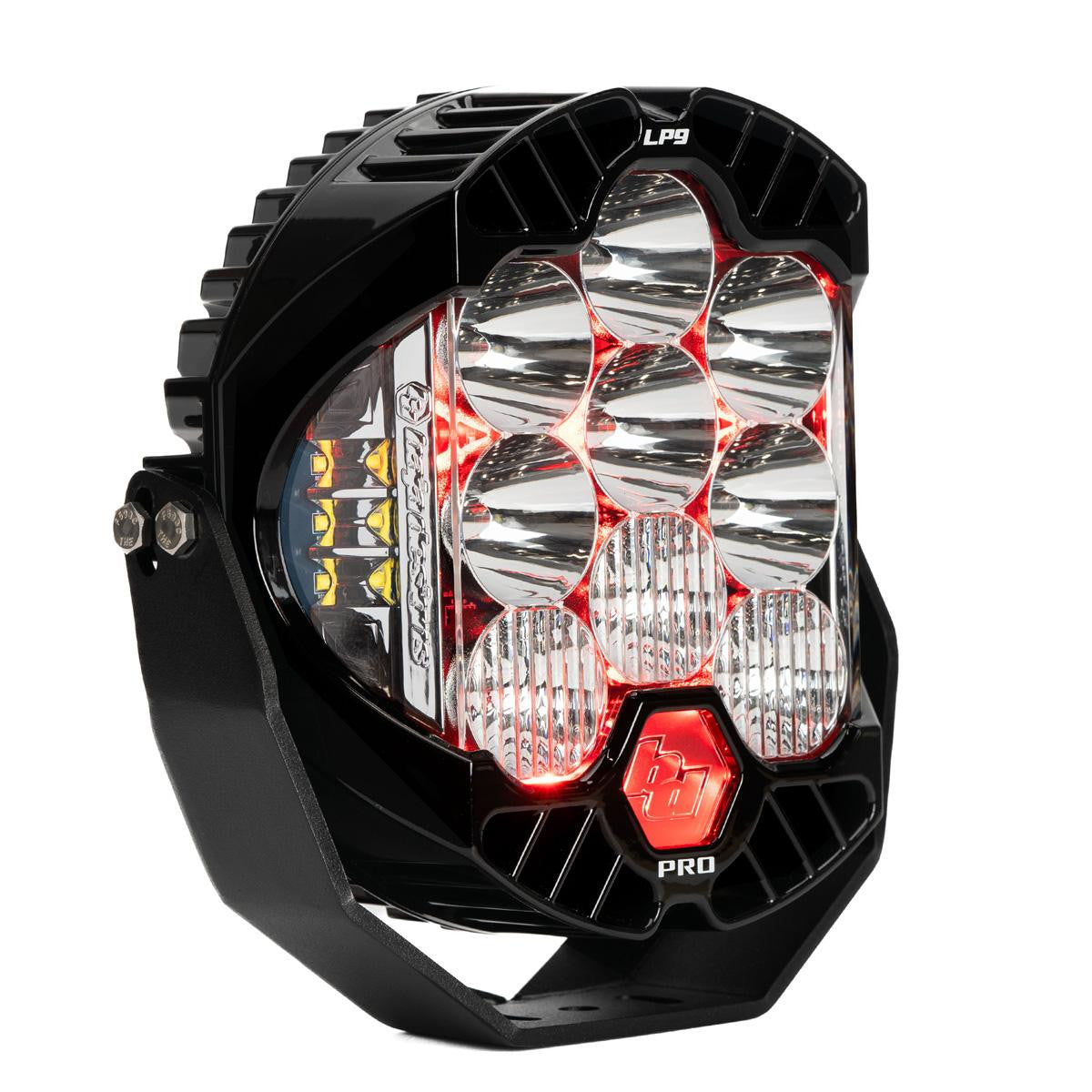

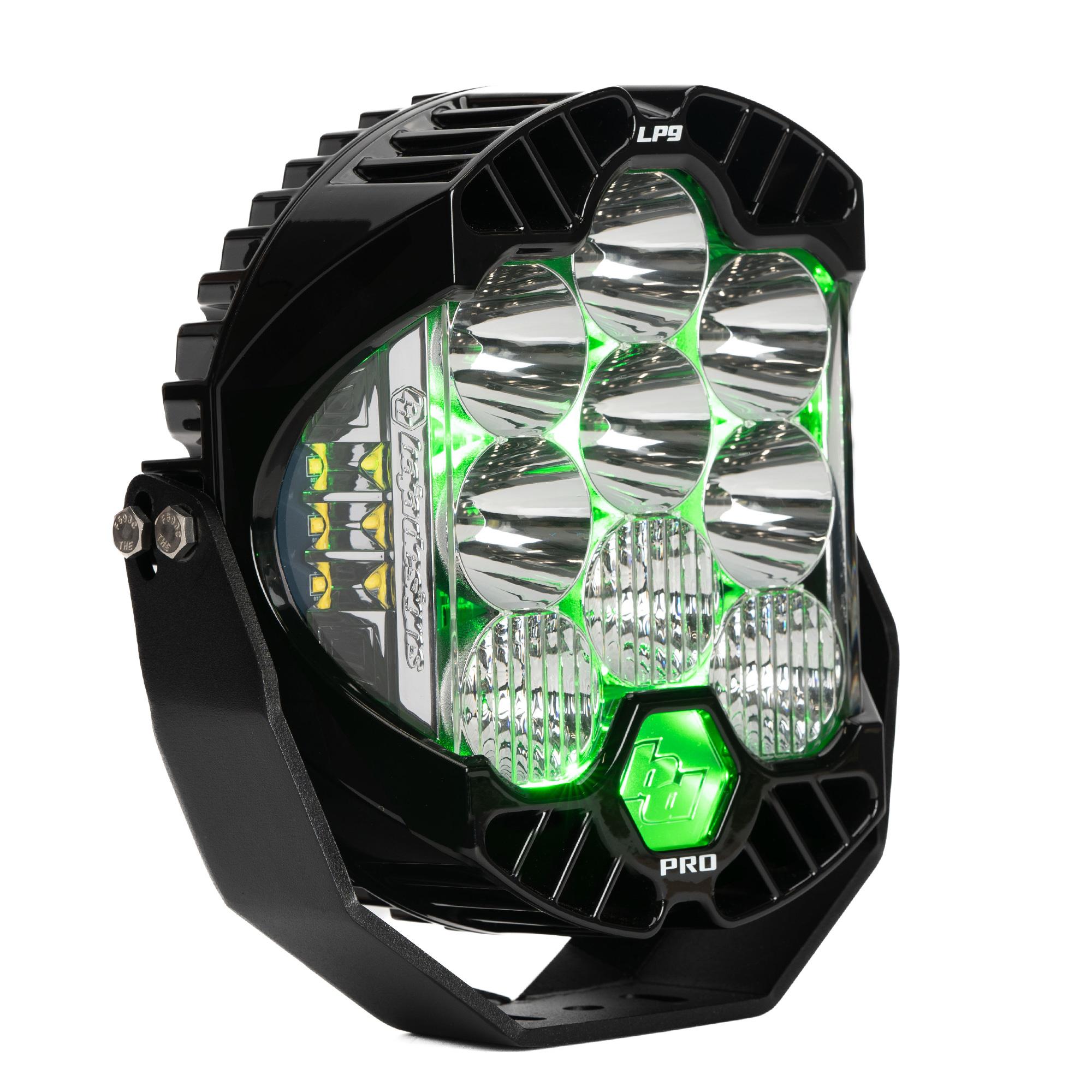

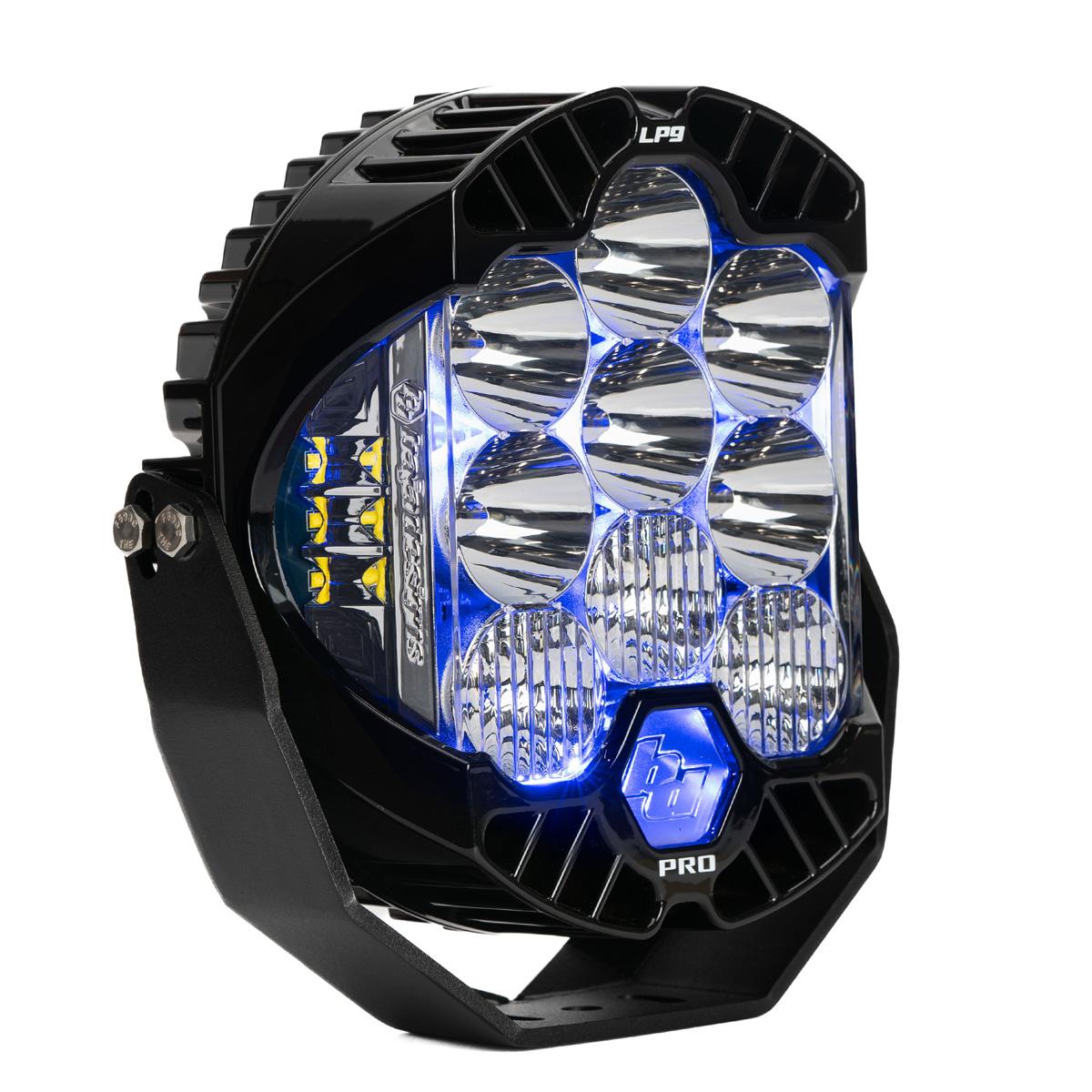

The addition of red, blue, or green backlight options alongside our original amber on the LP6 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are for EXHIBITION USE ONLY. Never use it on public roads to avoid confusion with law enforcement or emergency vehicles. The owner/driver is responsible for observing all highway equipment laws and safety regulations.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam/Day-Time Running Backlighting |
| Lighting Quantity | 9 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP9 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.520 |
| Secondary Brightness (Lumens) | 2302 |
| Secondary Light Quantity | 6 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 21 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 124.200 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 9 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.200 |
| Backlight Wattage (W) | 2.800 |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 12547 |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
Standards & Compliance
| Patent No. | 5,504,603 |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.250 |
| Height (in.) | 8 |
| Length (in.) | 8 |
| Weight (lbs.) | 6.500 |
