Sale price$875.95
Quantity:

Please call to configure Light Pattern, Lens Color and Backlight options.

Light Pattern:

  • Spot
  • Driving/Combo

Lens Color:

  • Clear

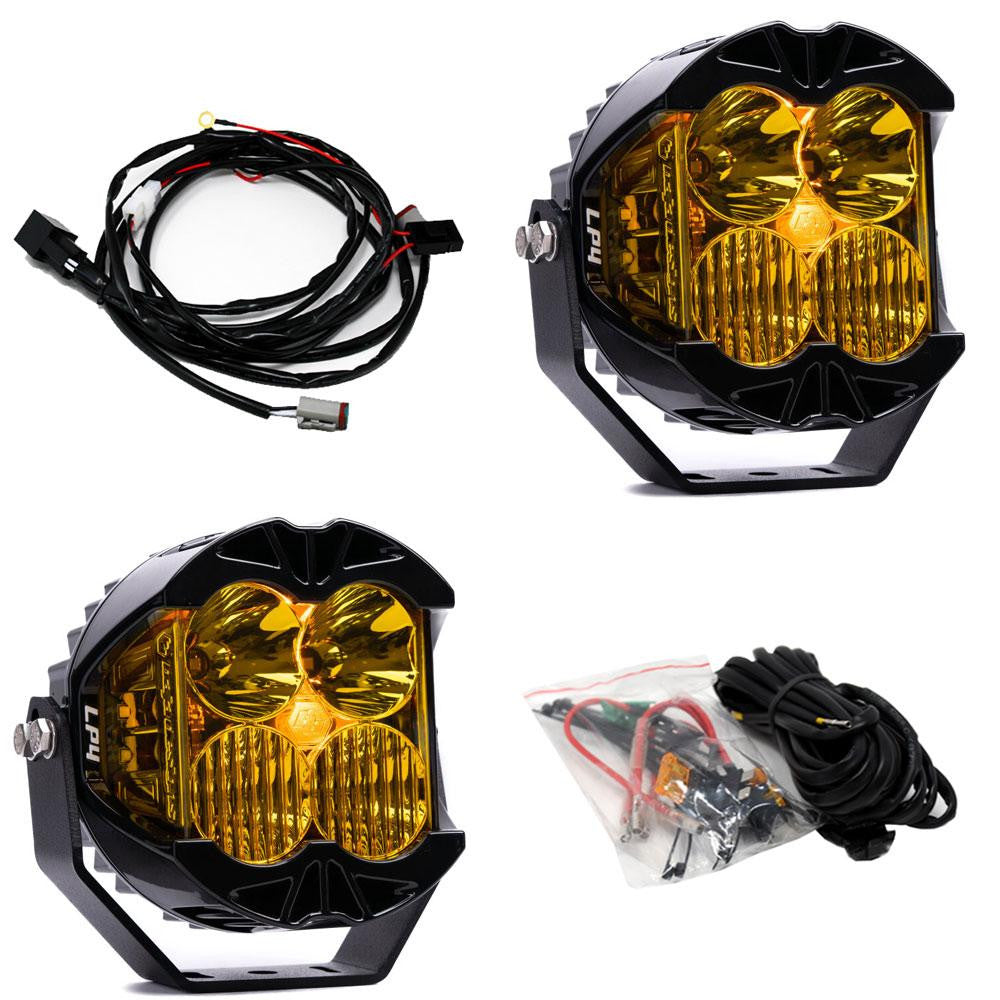

  • Baja Amber

Backlight:

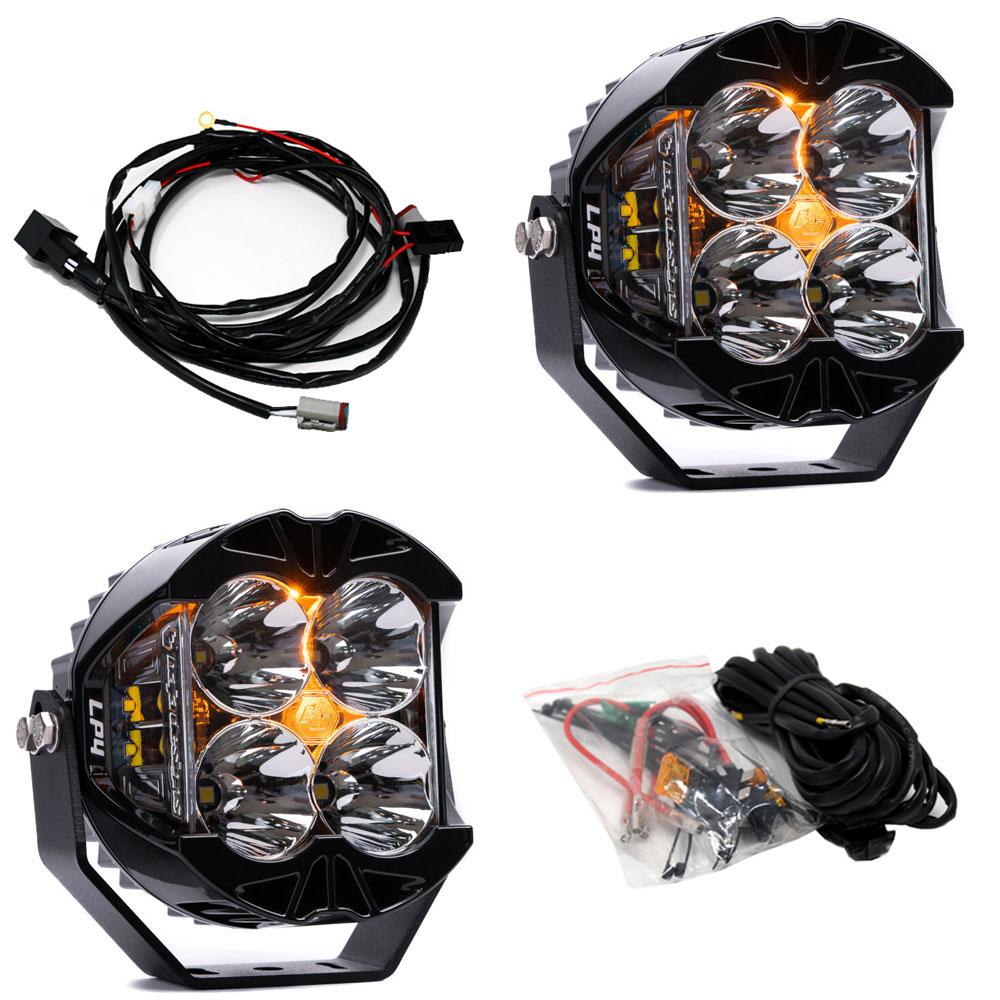

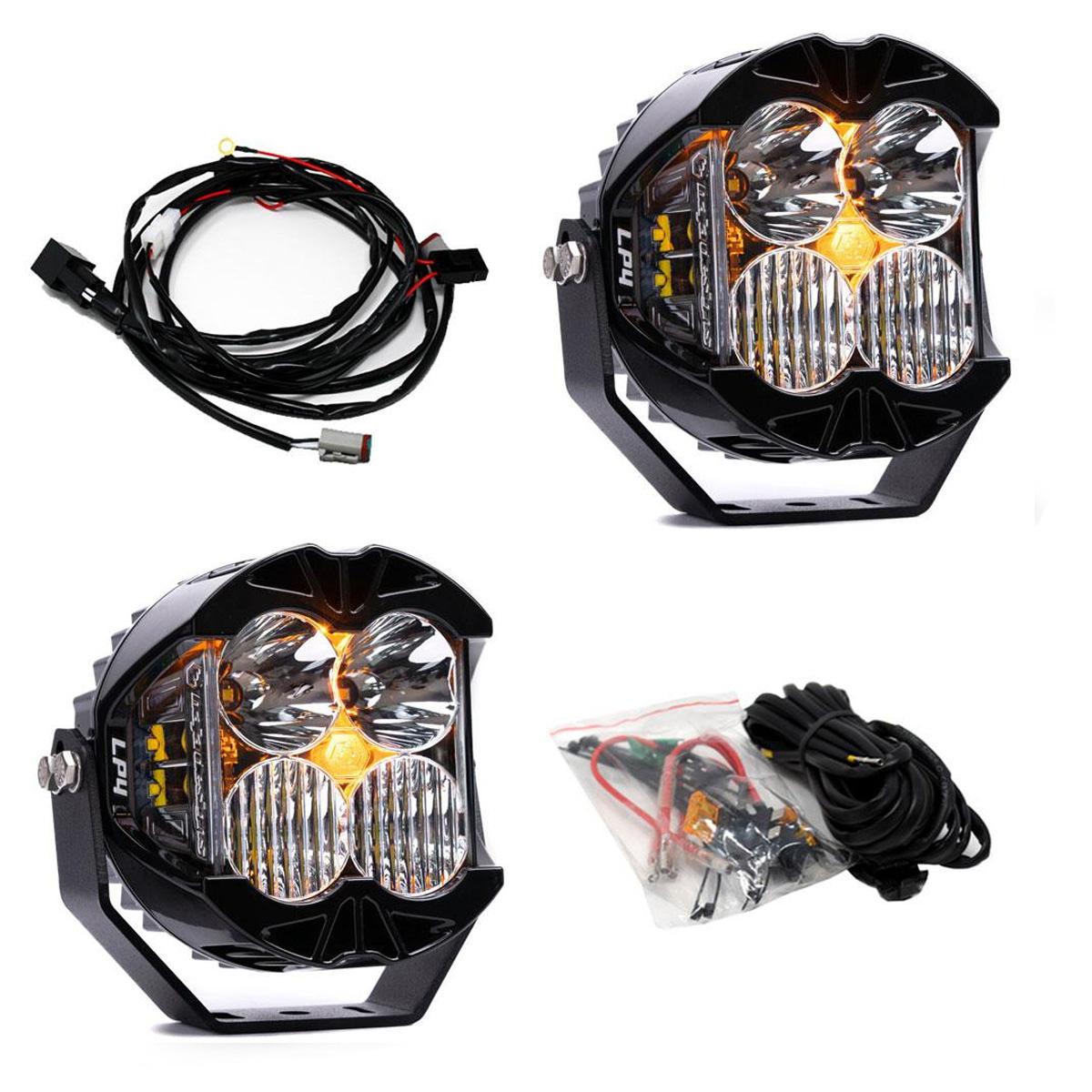

  • Amber

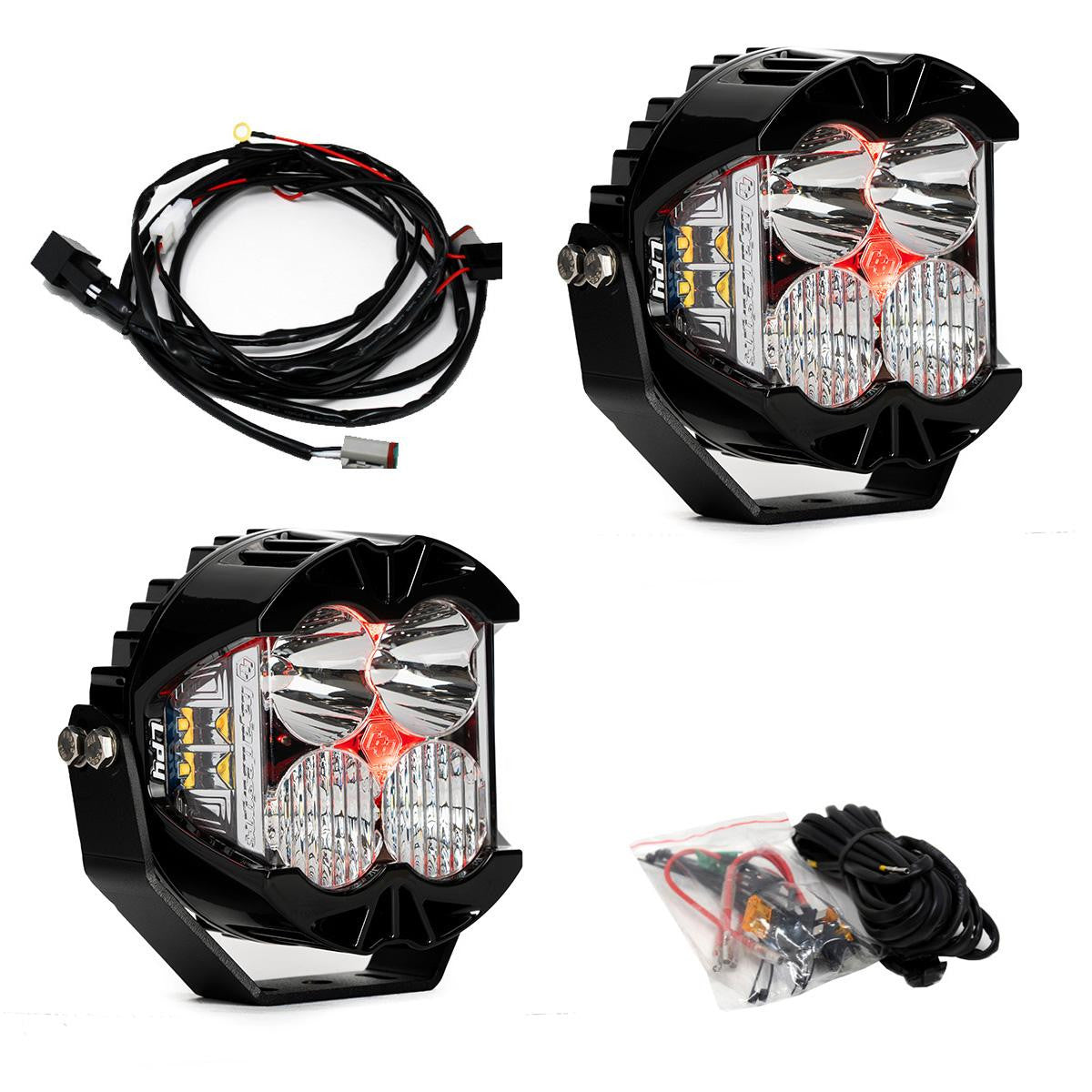

  • Red

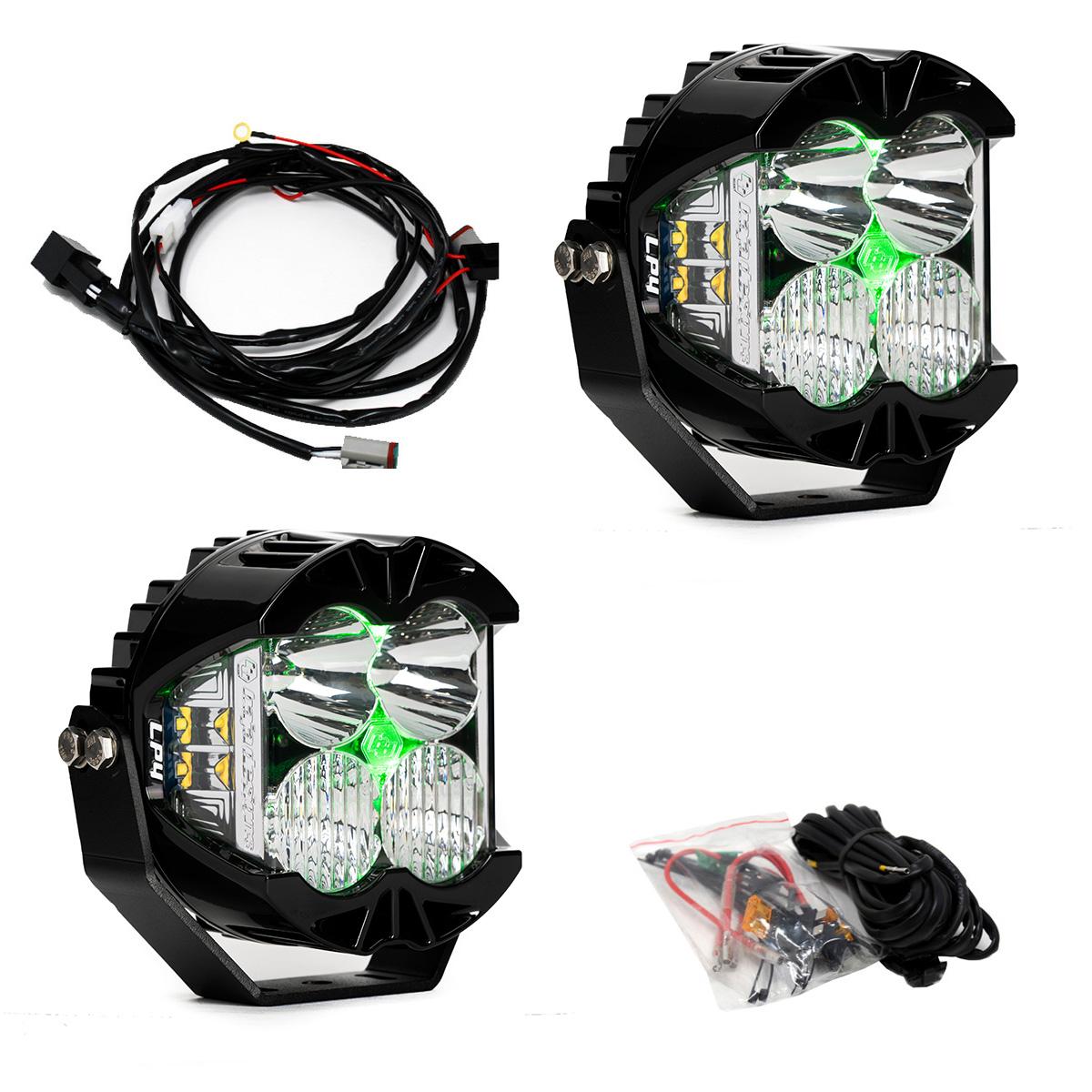

  • Blue
  • Green

Description

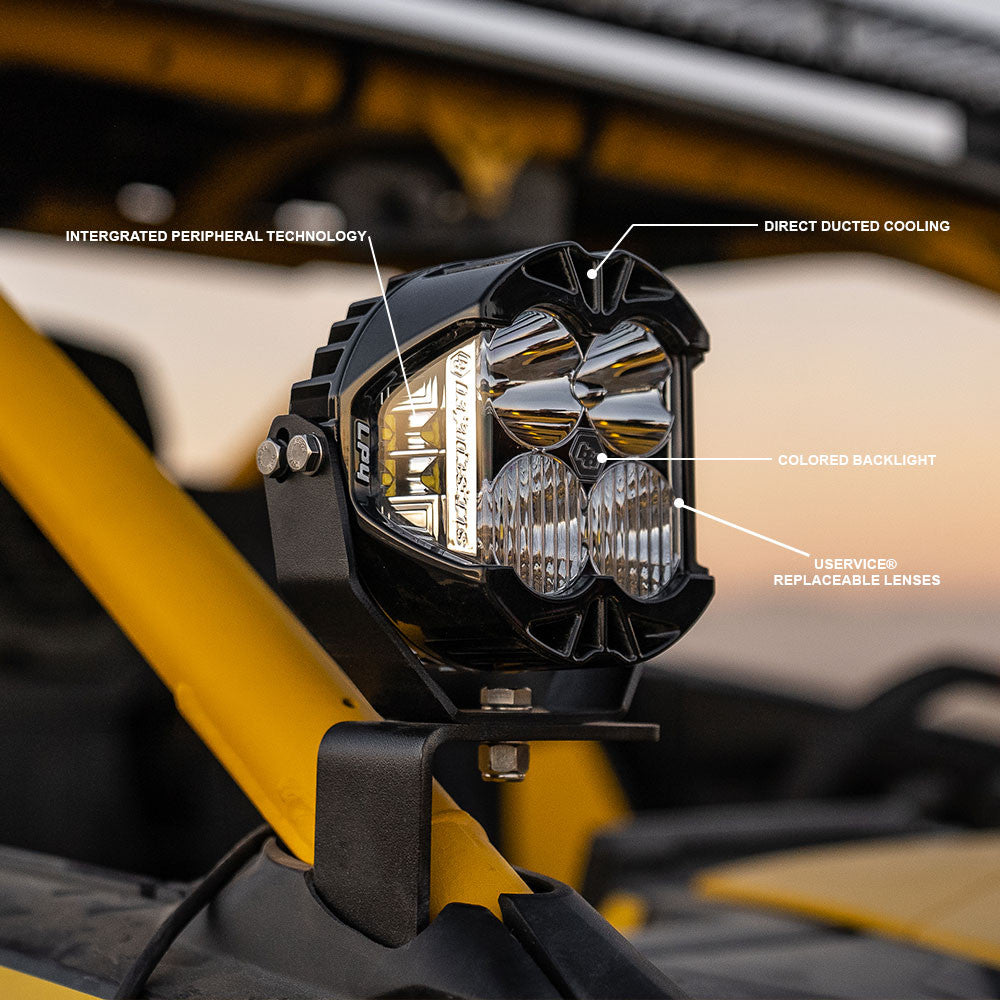

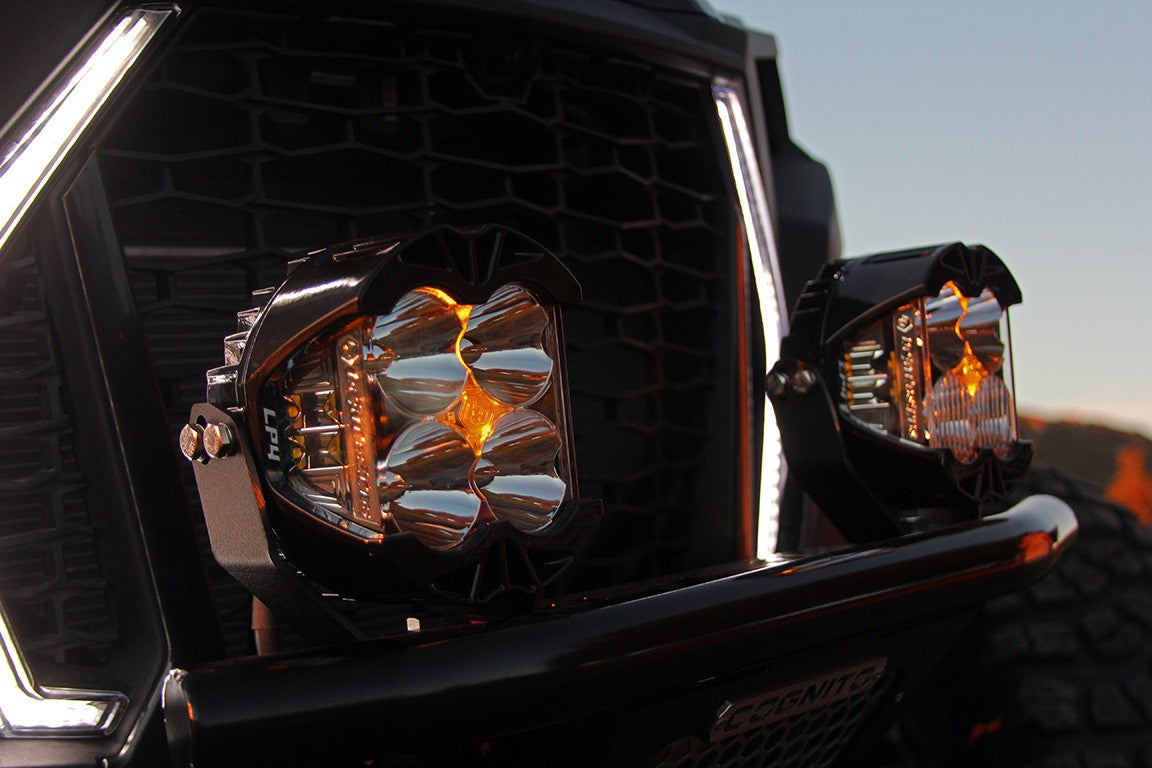

The LP4 is the smallest variant in the LP lineup and uses the same design architecture of its larger siblings. The LP4 features a total of 8,857 raw lumens, pumping out 6,885 forward projecting raw lumens and 1,972 raw lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT) providing 200-degree spread of light that illuminates zones 1, 2 and 3 along with reaching into zone 4 spot. To keep your light performing at its highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing and over the rear heat sinks - drastically improving cooling capacity and performance. The addition of red, blue, or green backlight options alongside our original amber on the LP4 Pro gives enthusiasts the choice to customize their vehicle for shows, photo shoots or anywhere they want to bring attention. This LP4 Pro LED Light pair is backed by our 30 Day Satisfaction Gaurantee and Lifetime Limited Warranty for the ultimate in purchase protection.

ELS™ Scores:
Click to learn more about our
Effective Lighting Score (ELS)
LP4 Spot (Clear): ELS 134°/ 6.7/ 438'/ 7953

Disclaimer: Baja Designs LP series lights featuring red, blue, or green backlights are intended exclusively for exhibition use. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver bears the responsibility of adhering to all highway equipment laws and safety regulations.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color


Specifications

Overvoltage Protection Built-In
Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A) 1.000
Secondary Brightness (Lumens) 1972
Secondary Light Quantity 4 LEDs
Secondary Lighting Technology LED
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Wattage (W) 15
Terminal Connector DT06-4S Deutsch
Terminal Type Mating Connector
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes
Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Backlight Amperage Rating (A) 0.350
Backlight Wattage (W) 4.830
Bezel Material Powder Coat Cast Aluminum
Brightness (Lumens) 8857
Housing Color Black
Housing Material Powder Coat Cast Aluminum
Lens Material Hardcoated Polycarbonate
Light Quantity 2
Lighting Modes Beam/Day-Time Running Backlighting
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel


Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

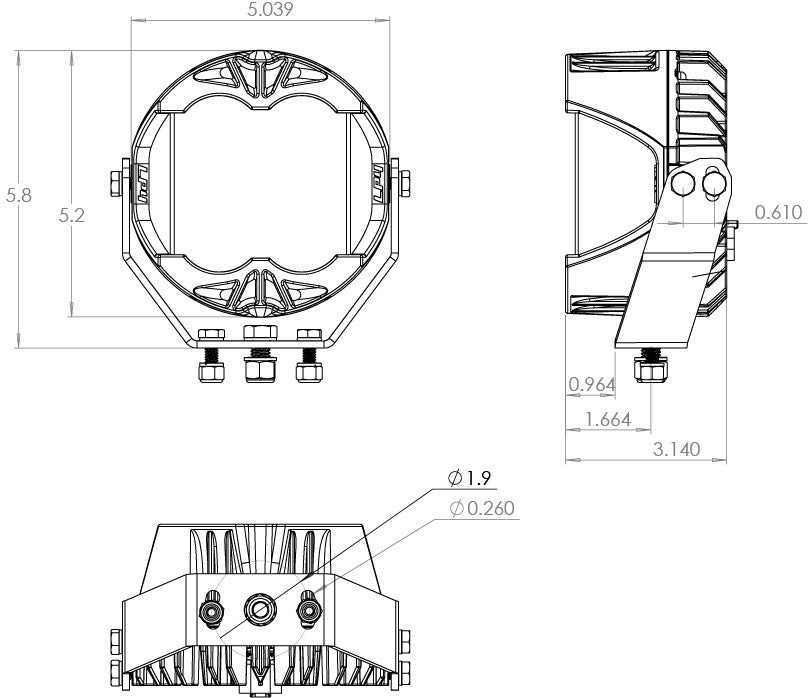

Dimensions

Depth (in.) 3.200
Height (in.) 5.100
Length (in.) 5.100
Weight (lbs.) 2.800



Installation instructions

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.
