BAJA DESIGNS | Jeep Gladiator 2020-24 & Wrangler JL 2018-24 Squadron Sport A-Pillar Light Kit
Lens Color
SELECT OPTIONS
Lens Color
Lens Color
Description
Light Pattern

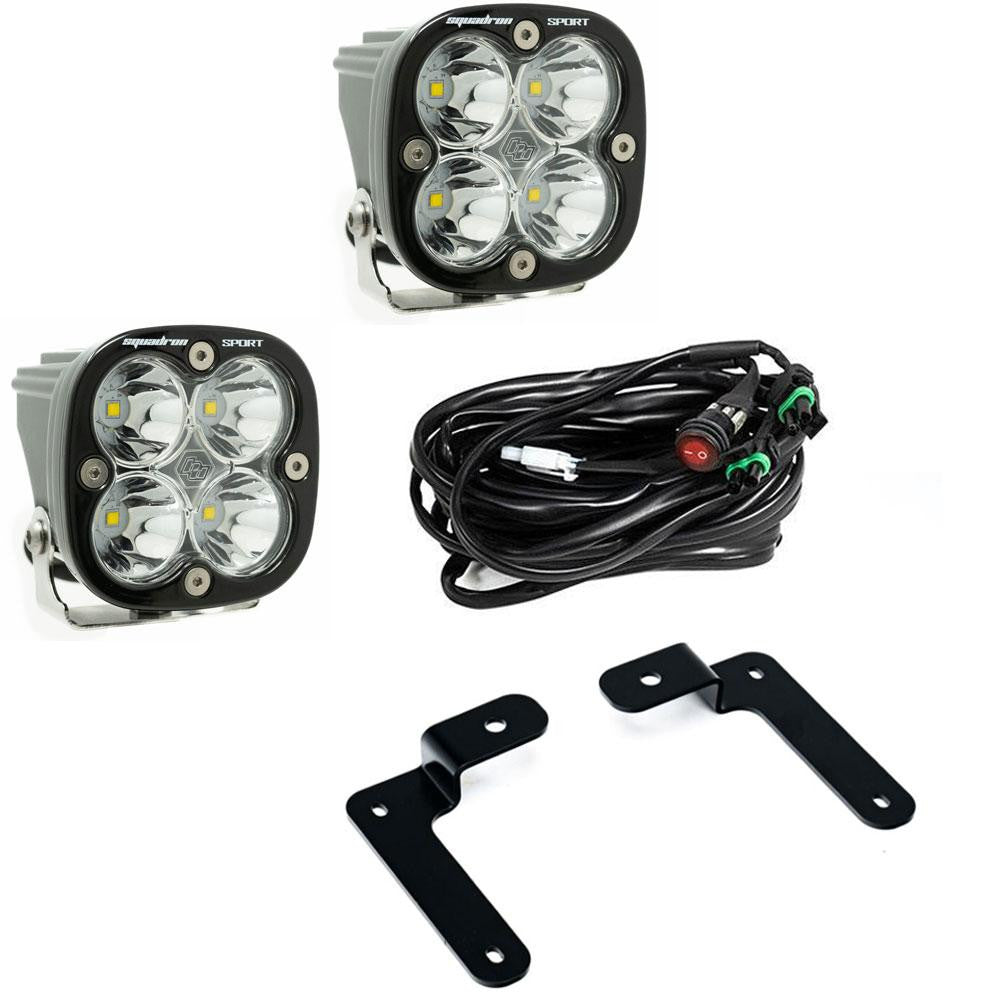

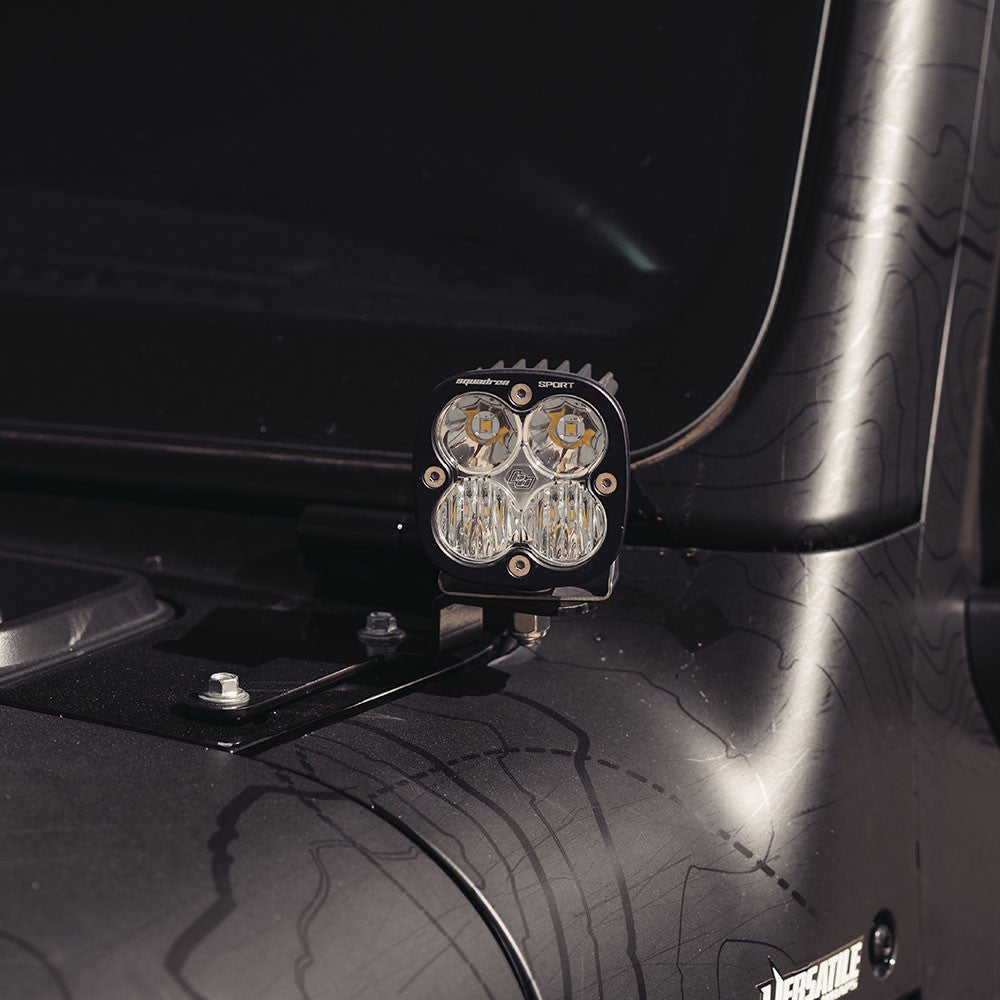

The Baja Designs Squadron Sport LED light A-Pillar kit for the Jeep JL/JT makes it quick and easy to mount lights onto your off-road trail rig. The mouning brackets install to the JL/JT factory mounting locations, with no trimming or modification to the vehicle required. These powder-coated steel mounts hold up to whatever elements you throw at them. The Squadron Sport produces 3,162 raw lumens at 30 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions. Kit comes with everything you need to install and get on the trails quickly. Backed by our 30-day Satisfaction gaurantee and Lifetime limited warranty for the ultimate in purchase protection. NOTE: The cowl on the Mojave and 392 models are taller and require longer M6 x 80mm flange bolts.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
- NOTE: The cowl on the Mojave and 392 models are taller and require longer M6 x 80mm flange bolts.
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
