BAJA DESIGNS | Jeep Gladiator 2020-2024 & Wrangler JL 2018-2024 8XL Linkable Roof Mount Light Kit
Lens Color
Wiring Type
SELECT OPTIONS
Lens Color
Wiring Type
Lens Color
Wiring Type
Description
Light Pattern
- NOTE: This roof bar does NOT fit Mojave, 392, and 4xE models.
The Baja Designs 8XL Linkable LED roof bar kit is engineered specifically for the Jeep Wrangler JL/Gladiator JT platforms, giving off-roaders a high-performance, completely customizable solution that drastically improve the looks and performance of their Jeep. This kit includes 8 XL Sports offering a combined 25,200 raw lumens and 208w, aluminum XL linkable links, pre-load support bracket to ensure stiffness in the most extreme terrain, and black rock guards with the Baja Designs logo. The XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. Backed by a 30-day satisfaction guarantee and limited lifetime warranty for the ultimate in purchase protection.
Features:
- XL Linkable allows for 45-degrees of vertical pitch adjustment within each light or the entire unit.
- Completely independent horizontal adjustment allows for straight or arc configurations.
- Option of toggle or upfitter wiring harness for models with factory upfitter switch provisions.
- NOTE: This roof bar does NOT fit Mojave, 392 and 4xE models.
Warning: Installation of any roof-mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories.

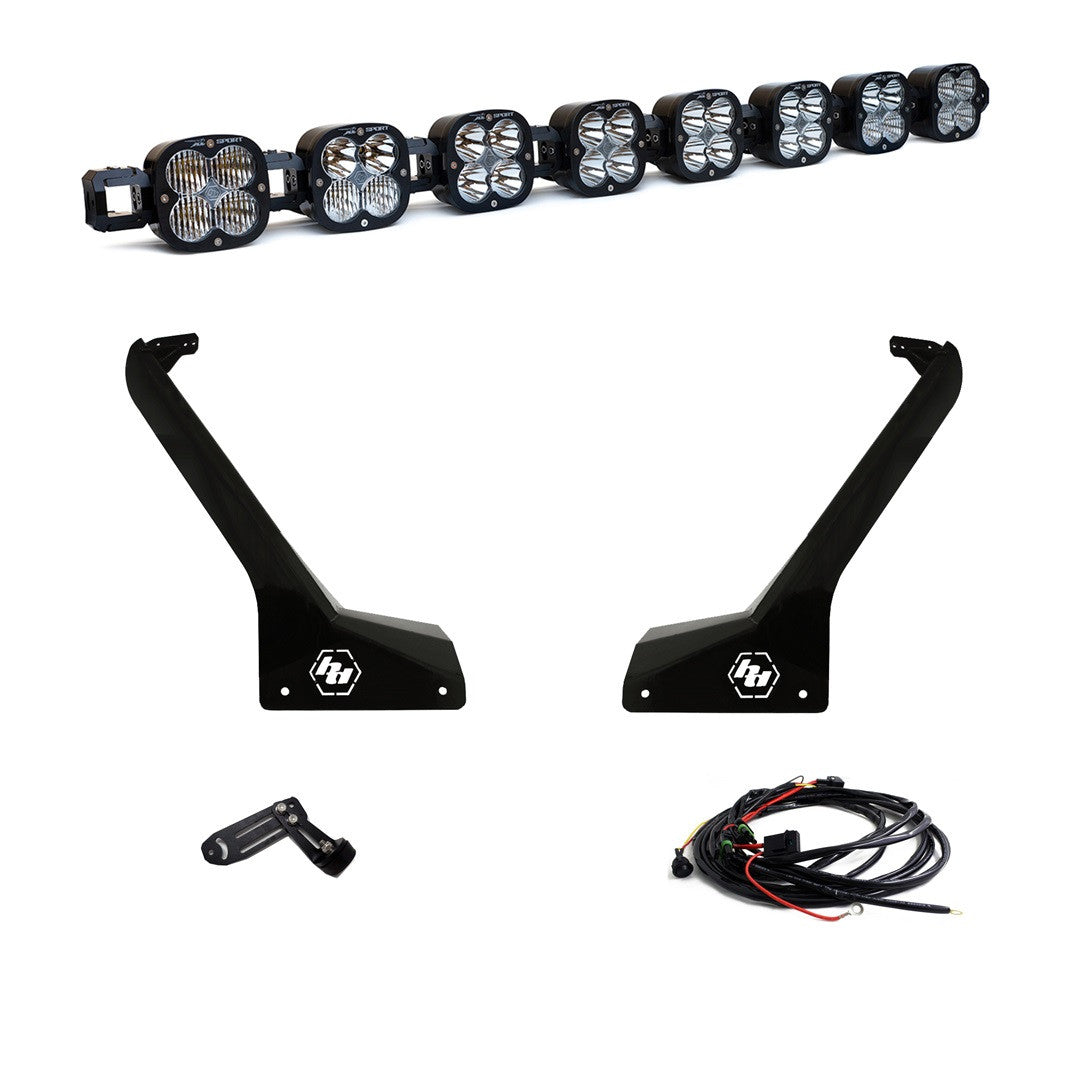

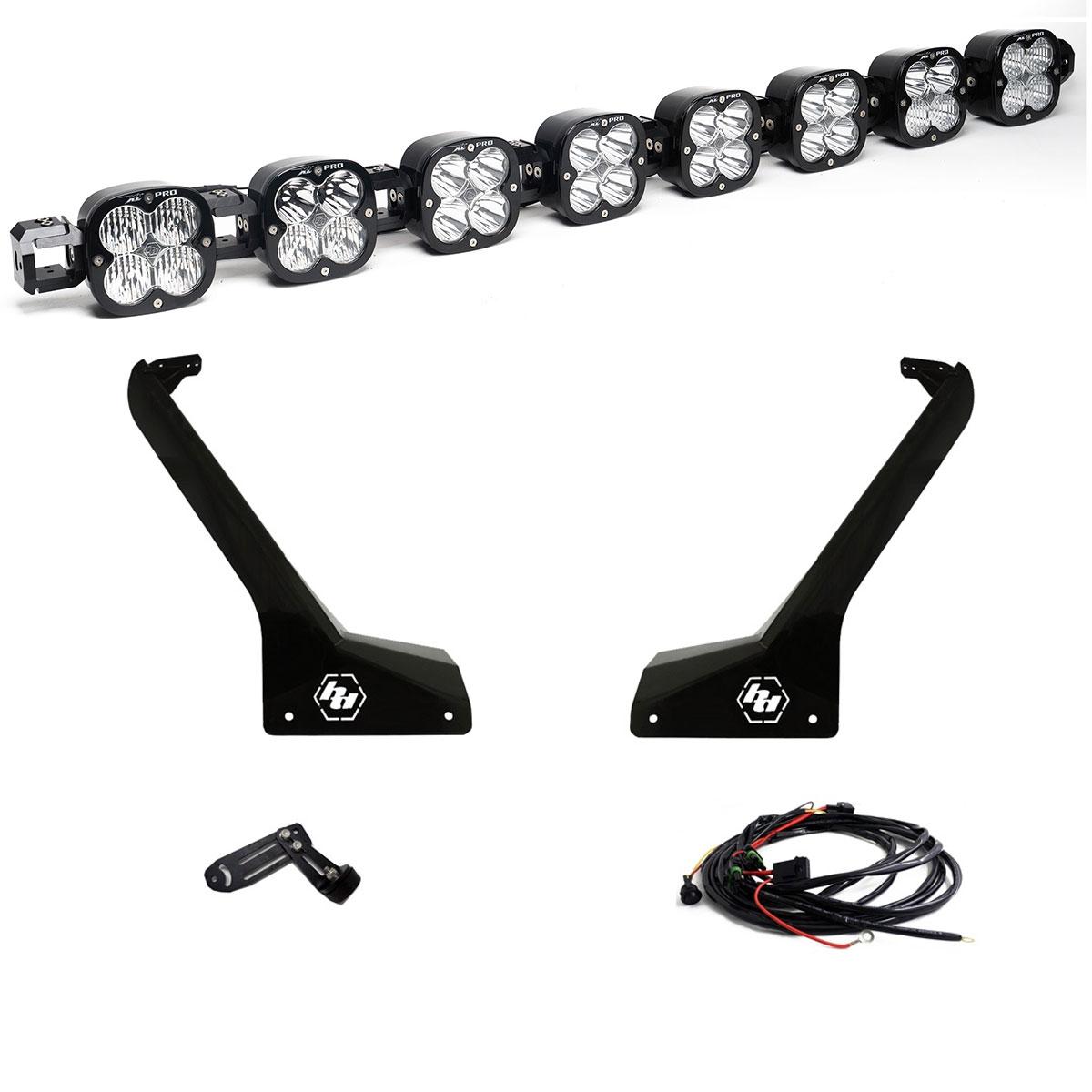

447664 Kit comes with:
- (1x) 8XL Linkable Light Bar
- (2x) Roof Mounting Brackets
- (1x) Pre-load Kit
- (1x) On/Off Toggle Harness (640115)
- (8x) Black Rock Guards
- All Necessary Mounting Hardware

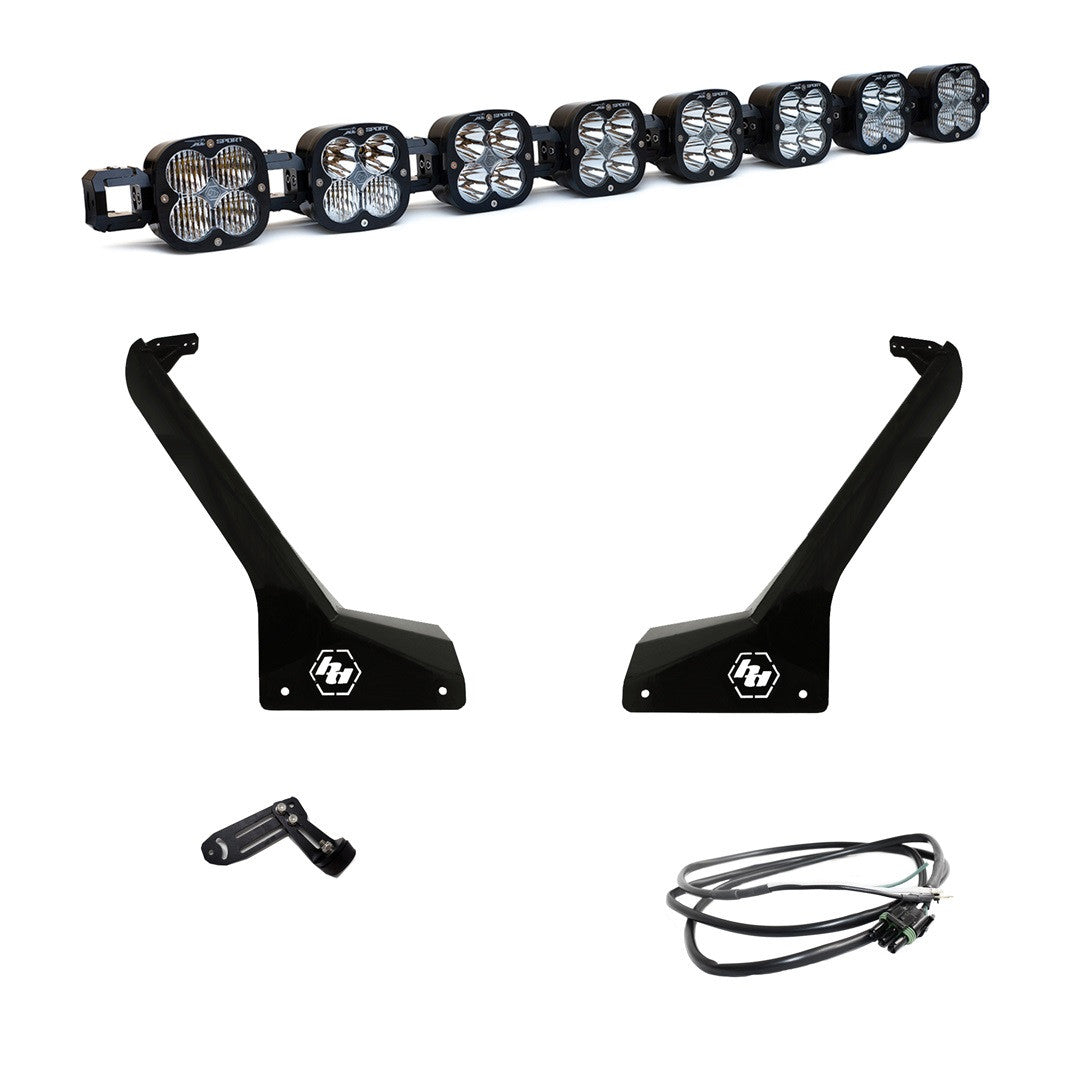

447664UP Kit comes with:
- (1x) 8XL Linkable Light Bar
- (2x) Roof Mounting Brackets
- (1x) Pre-Load Kit
- (1x) Upfitter Harness (640094)
- (8x) Black Rock Guards
- All Necessary Mounting Hardware
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 51.52 |
Specifications
| Amperage Rating (A) | 16 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 25,296 |
| Description | 8XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 8 |
| Lighting Modes | Beam |
| Lighting Quantity | 32 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 208 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
