BAJA DESIGNS | Jeep Wrangler JK 2007-2018 JK XL Linkable Roof Mount Light Kit (447099)
Light Pattern
Lens Color
SELECT OPTIONS
Light Pattern
Lens Color
Light Pattern
Lens Color
Description

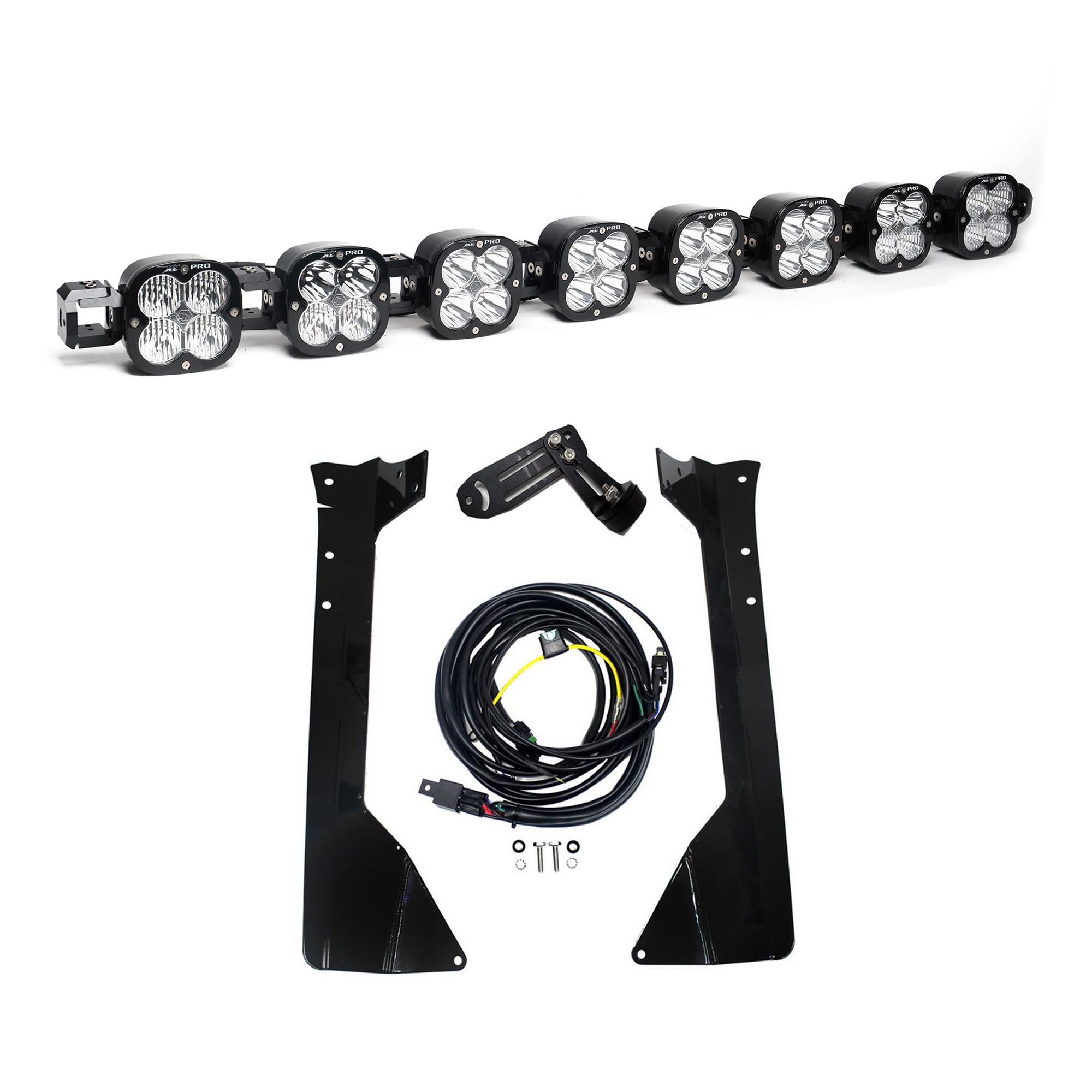

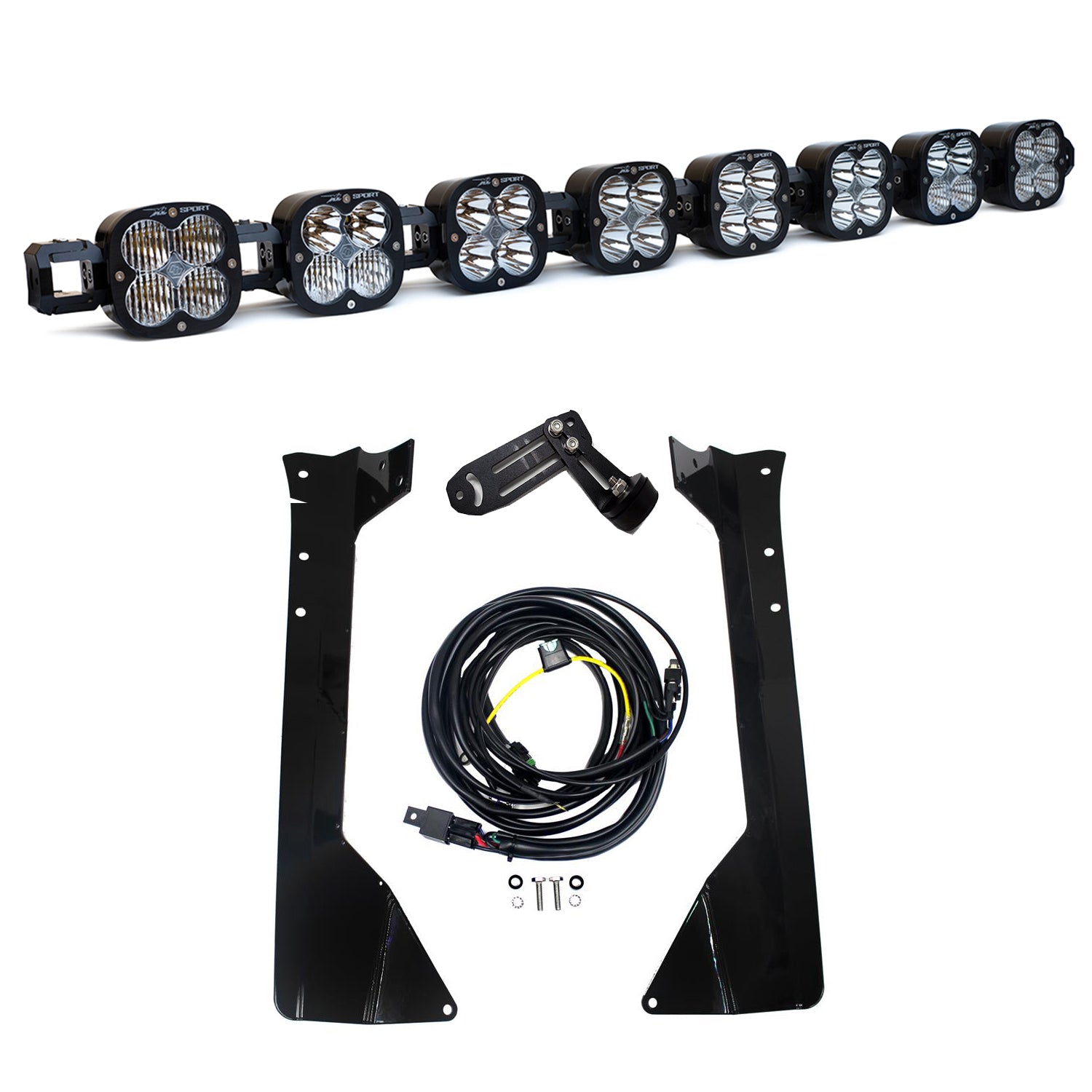

Full adjustment, Total Performance. The 8 XL Linkable kit for the Jeep Wrangler JK 2007-2018 is for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 8 XL Sports producing 25,296 total raw lumens of forward projecting light that has a smooth blend due to the use of spot, driving combo and wide cornering lenses. The XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your Jeep JK. This kit comes with everything you need to hit the trail; links, Jeep specific mounting brackets, rock guards and wiring harness fully crimped and trimmed allowing for an easy installation process. Even a pre-load support bracket is included to ensure stiffness in the most extreme terrain. This kit is a turnkey system for the Jeep JK owner that is looking to take down the night, give a standoff appearance to their vehicle and is backed by Baja Designs’ 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection. NOTE: Installation of any roof mounted lights will cause a degree of added wind noise depending on vehicle type and installed accessories.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 51.52 |
Specifications
| Amperage Rating (A) | 16 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 25,296 |
| Description | 8XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 8 |
| Lighting Modes | Beam |
| Lighting Quantity | 32 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 208 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
