BAJA DESIGNS | Ford F-150 Raptor 2021-2024 XL Linkable Bumper Light Kit (448067)
Lens Color
SELECT OPTIONS
Lens Color
Lens Color
Description
Light Pattern
Full adjustment; total performance. The Baja Designs 6XL Linkable LED light bar bumper kit for the 2021-on Ford Raptor is designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. Built around our popular XL Sport shallow moto housing, each light in the XL Linkable kit offers up 3,162 raw lumens each from our next generation LED that provide a smooth blend due to the use of our wide cornering, driving combo and spot lenses, illuminating zones 1, 2, 3 and 4 simultaneously. The XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of the Raptor's bumper. The wiring comes fully crimped and trimmed, allowing for easy installation and the ability to add links down the road, and black rock guards are included to protect the lights when not in use. If you're looking to have a lighting system that performs as well as it looks, the 6XL Linkable light bar kit will elevate your Ford Raptor.

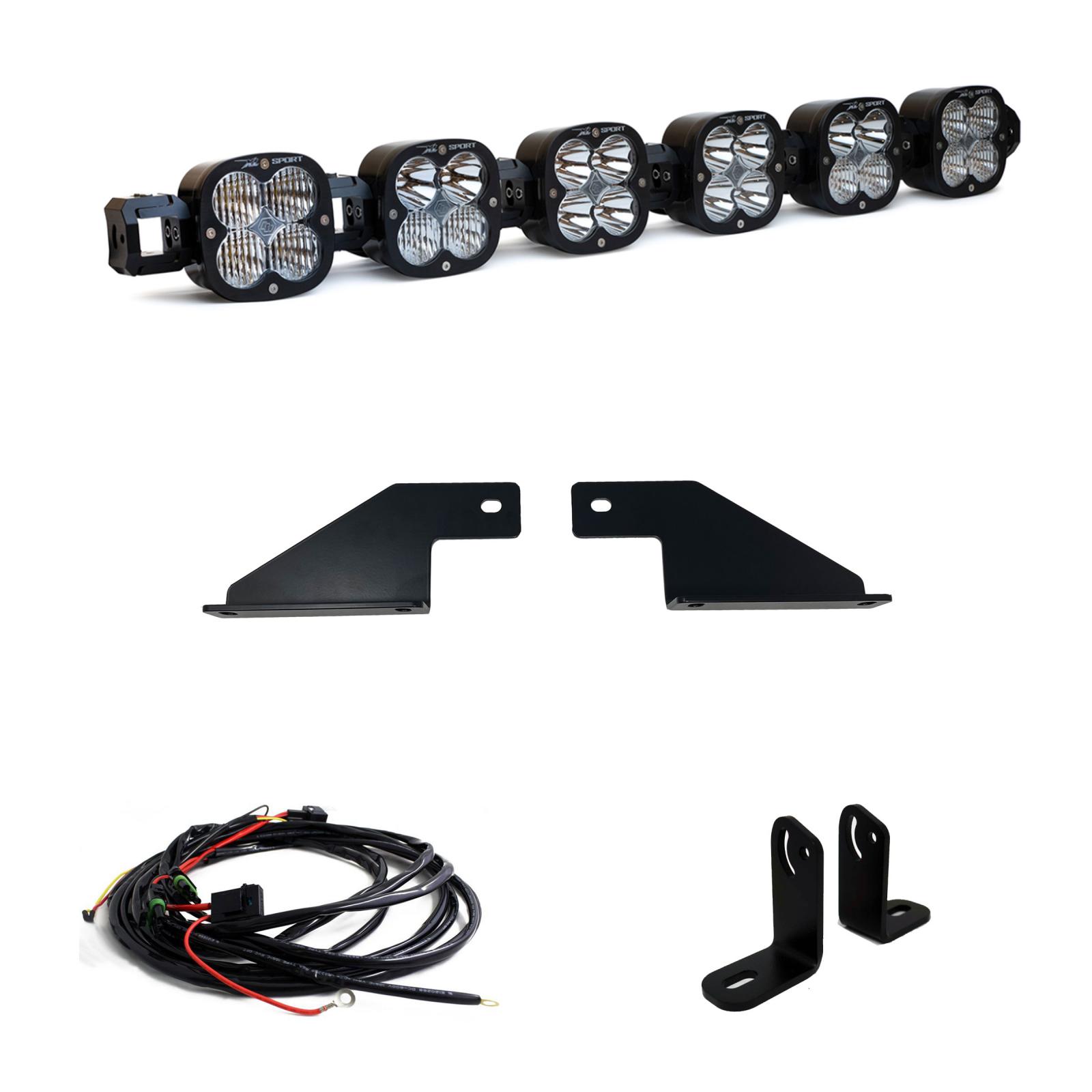

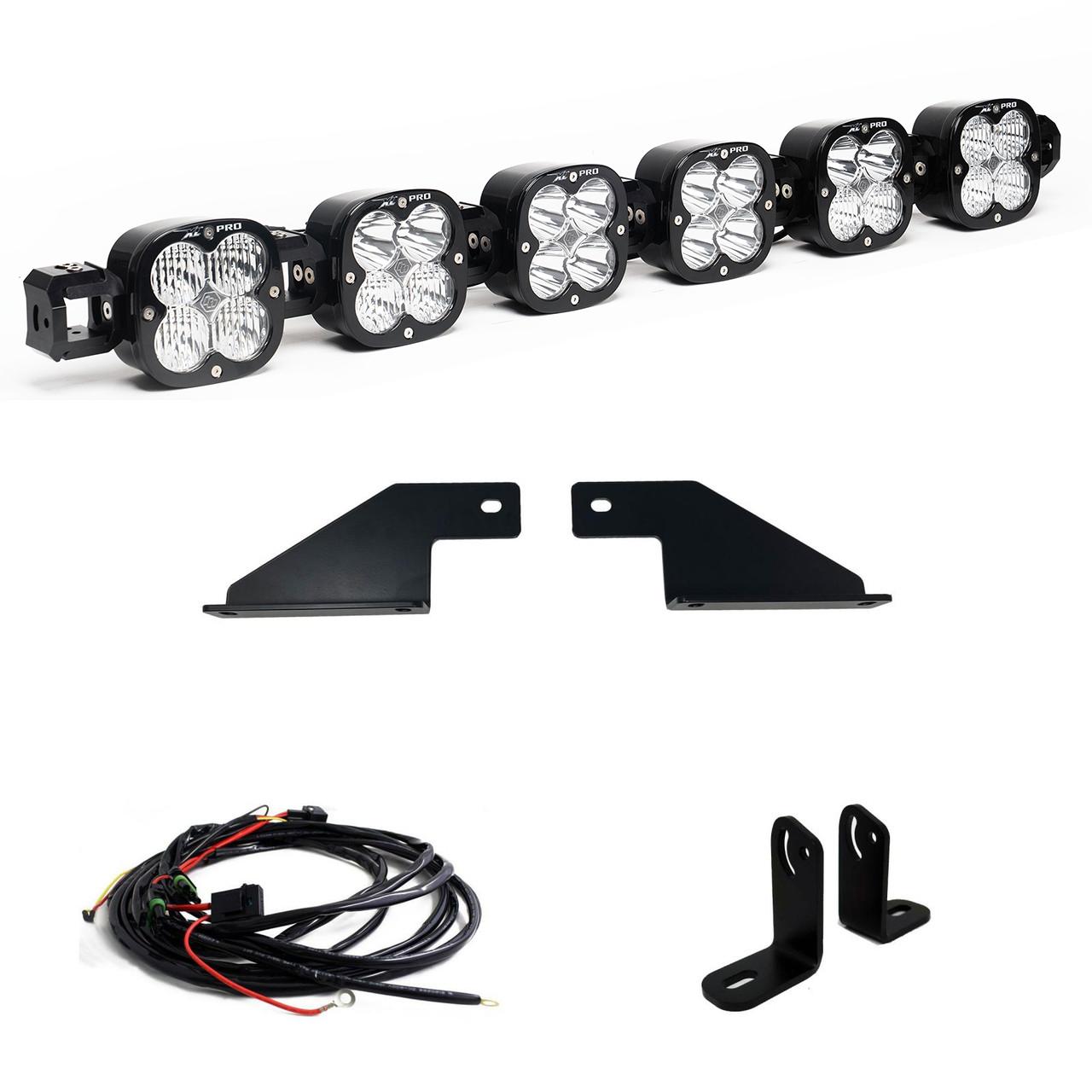

Kit Includes:
- (1x) 6XL linkable light bar - clear/multi-pattern
- (2x) Mounting brackets
- (1x) Wiring harness
- (2x) Pre-Load Bracket
- All necessary mounting hardware
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Dimensions
| Depth (in.) | 2.8 |
| Height (in.) | 4.43 |
| Length (in.) | 39.16 |
Specifications
| Amperage Rating (A) | 12 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Multi-Pattern |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 18,972 |
| Description | 6XL Sport; Multi-Pattern; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 6 |
| Lighting Modes | Beam |
| Lighting Quantity | 24 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Pre-Load Kit; Links; Rock Guards |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL Linkable LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 156 |
| Wiring Harness Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
