BAJA DESIGNS | Ford F-150 Raptor 2017-2020 Squadron SAE/S2 Fog Pocket Light Kit
Lens Color
Light Pattern
SELECT OPTIONS
Lens Color
Light Pattern
Lens Color
Light Pattern
Description

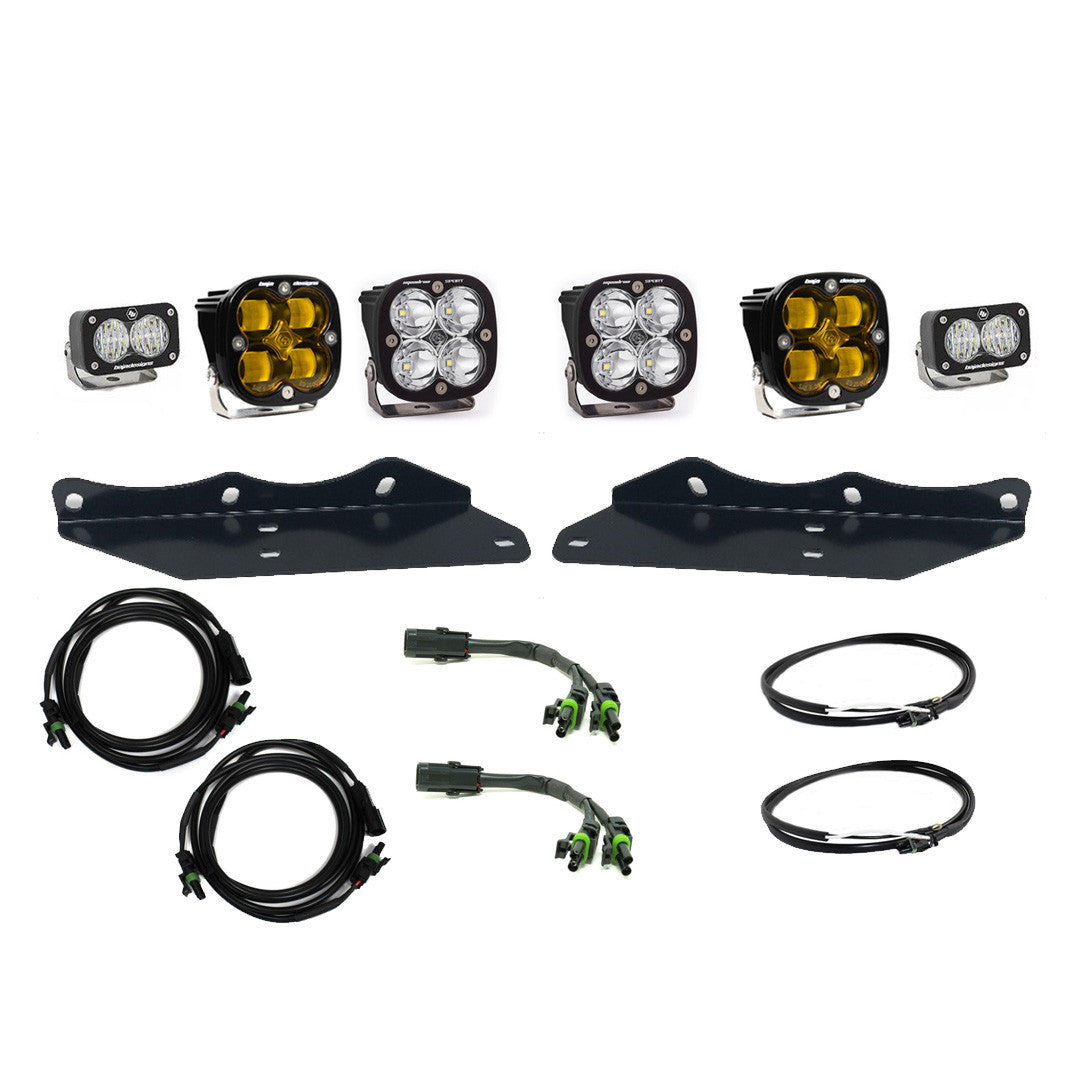

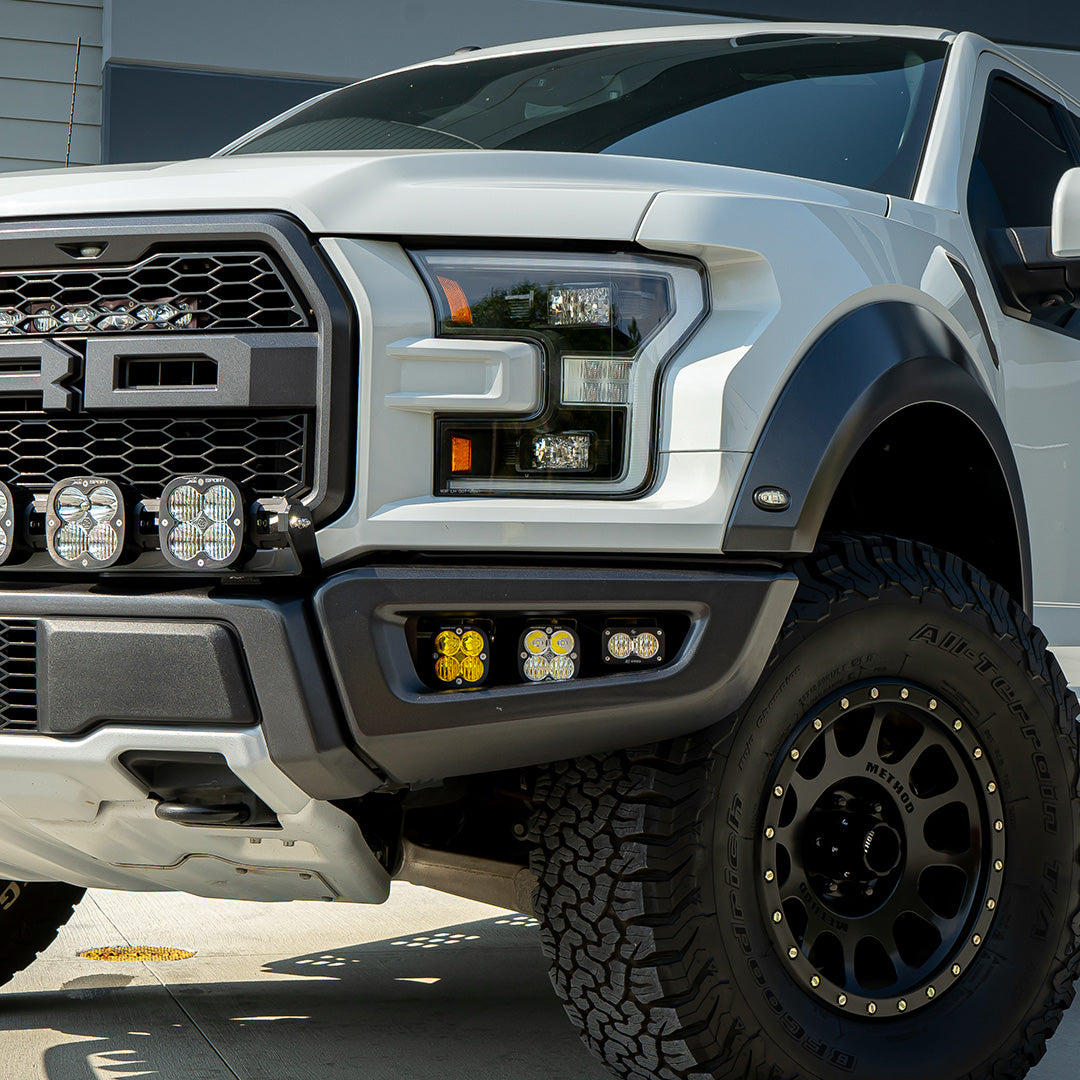

Separate your truck from the pack with the Baja Designs Ford F-150 (2020) F-150 (’17-20) Raptor “Sportsmen” Fog Light Kit. This kit brings the light with two Squadron® Sports (3,162 lumens each), two Squadron® SAE lights (2,420 lumens each) and two S2 Sport (1,581 lumens each). This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory switch. With all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: uService® is NOT a feature of SAE products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.
FITS
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
Specifications
| Amperage Rating (A) | 0.900 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 1581 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Sport LED Light Pod |
| Wattage (W) | 12.420 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
