BAJA DESIGNS | Ford Squadron-R Sport Fog Pocket Light Kit (201STI)
Light Pattern
Lens Color
SELECT OPTIONS
Light Pattern
Lens Color
Light Pattern
Lens Color
Description

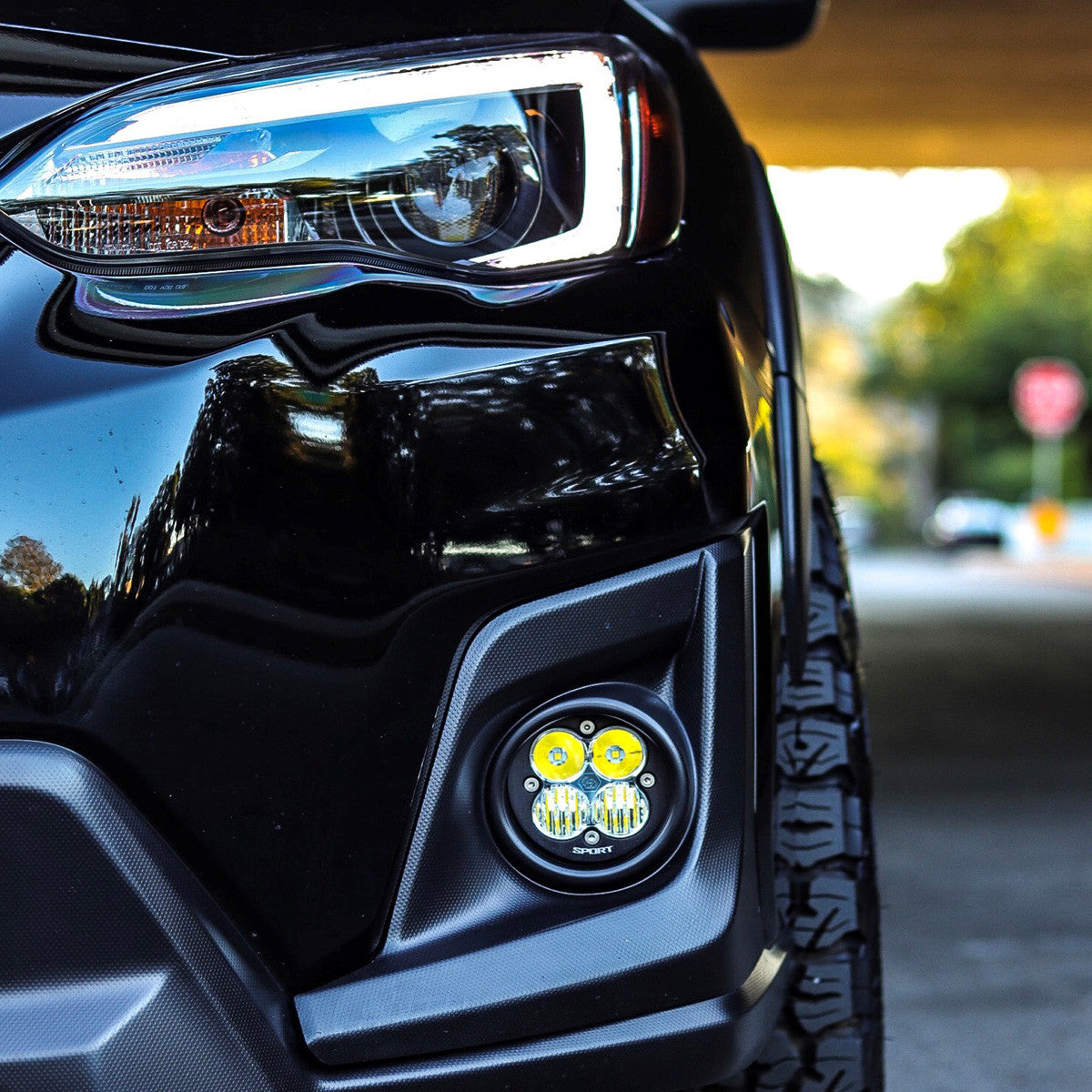

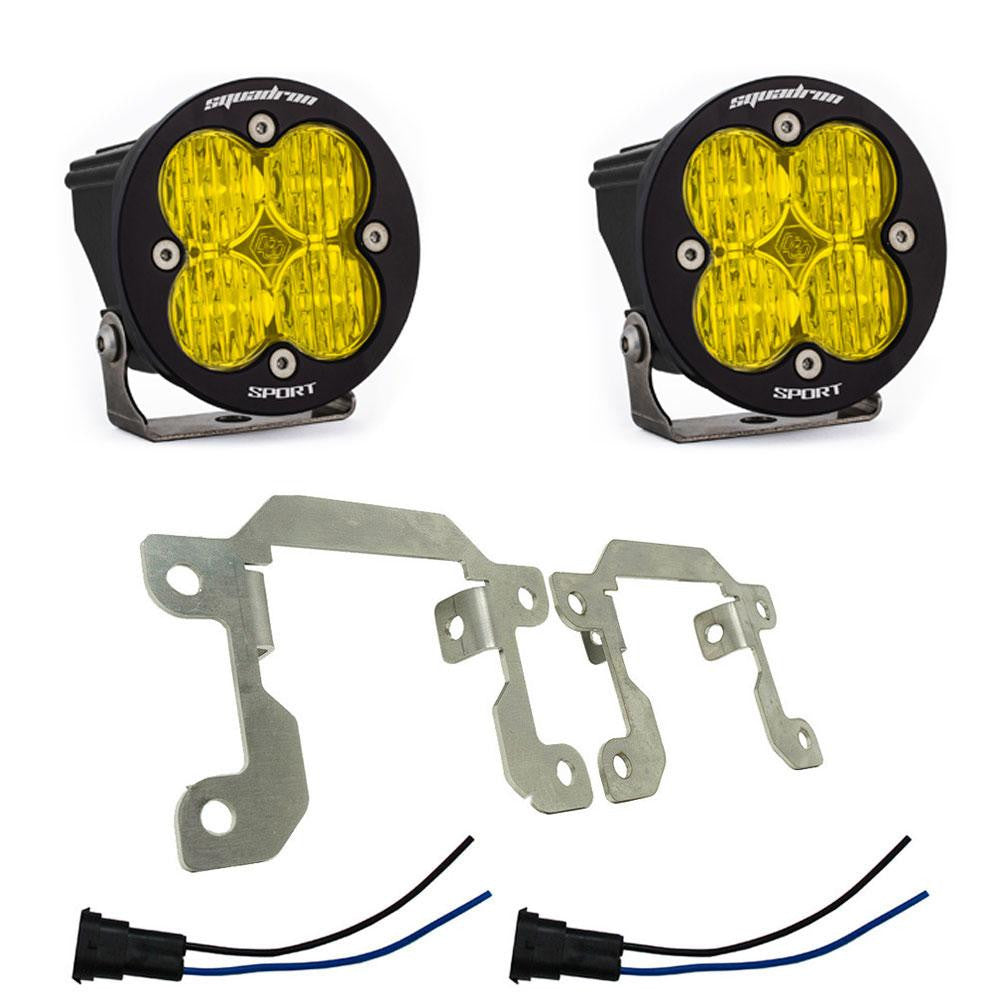

Canyon cutting or road racing, the Baja Designs Fog Pocket Kit has your back. This kit will give you the driving assurance you're looking that stock fog lights cant provide. The design allows the user to mount these lights in the stock fog pocket location while maintaining a clean factory look. This kit works on a variety of makes and models listed below.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
| Depth (in.) | 2.77 |
| Height (in.) | 3.5 |
| Length (in.) | 3.5 |
| Weight (lbs.) | 0.75 |
Specifications
| Amperage Rating (A) | 2 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 3,150 |
| Description | Round; Wide Cornering; Amber |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron-R Sport LED Light Pod |
| Wattage (W) | 26 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
