BAJA DESIGNS | Ford F-150 Raptor 2021-2024 Squadron Pro Behind Grille Light Kit (448062)
Light Pattern
Lens Color
SELECT OPTIONS
Light Pattern
Lens Color
Light Pattern
Lens Color
Description

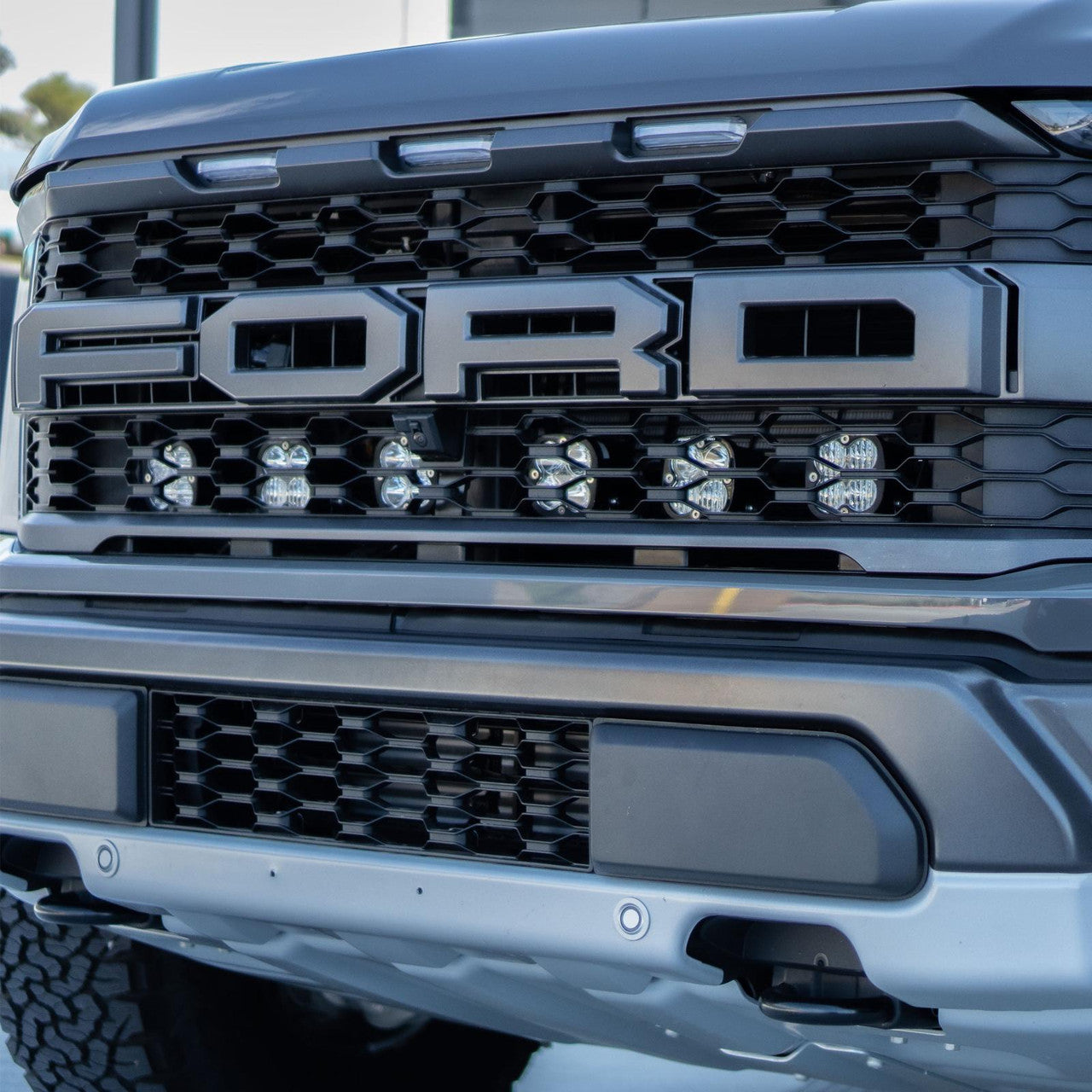

The Baja Designs Squadron Pro behind-the grille kit for the 2021-on Ford Raptor is designed with both functionality and visual appeal in mind. This kit offers six Squadron Pro off-road LED lights in multiple lens configurations, mounting brackets, and hardware. The Squadron Pro offers 4,095 raw lumens each, giving you more intensity to cut through the darkness and illuminate your favorite trail. With the combination of wide cornering, driving combo and spot lenses, this kit illuminates into lighting zones 1-4, making this the ultimate behind-the-grille kit. This off-road light kit comes with all lights, mounting brackets, wiring harness and all necessary hardware. Backed by our 30-day Satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This kit will not work with adaptive cruise control relocation kits.

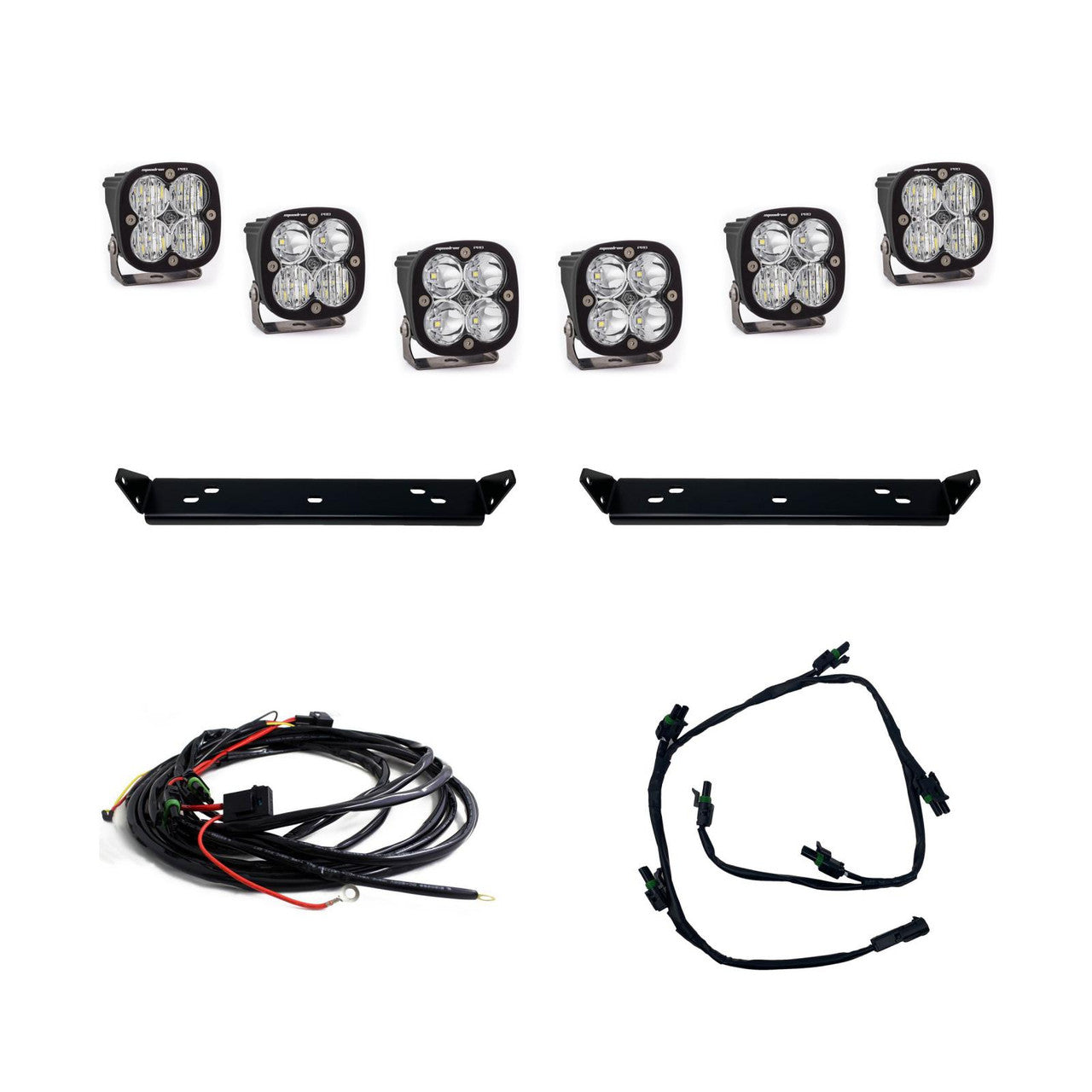

Kit Includes:
- (2x) Squadron Pro - Wide Cornering Clear
- (2x) Squadron Pro - Driving Combo Clear
- (2x) Squadron Pro - Spot Clear
- (2x) Behind-the-Grille mounting brackets
- (1x) Wiring Harness
- (1x) Hi-Beam Wiring Harness
- All Necessary Mounting Hardware
Squadron Sport Specifications (per light):
- 4,095 raw lumens
- 41.4W/3A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Installation instructions
