BAJA DESIGNS | Ford F-250 Super Duty 2017-2022 & F-350 Super Duty 2017-2022 S2 Sport Dual Reverse Light Kit
Lens Color
Wiring Type
SELECT OPTIONS
Lens Color
Wiring Type
Lens Color
Wiring Type
Description
Light Pattern

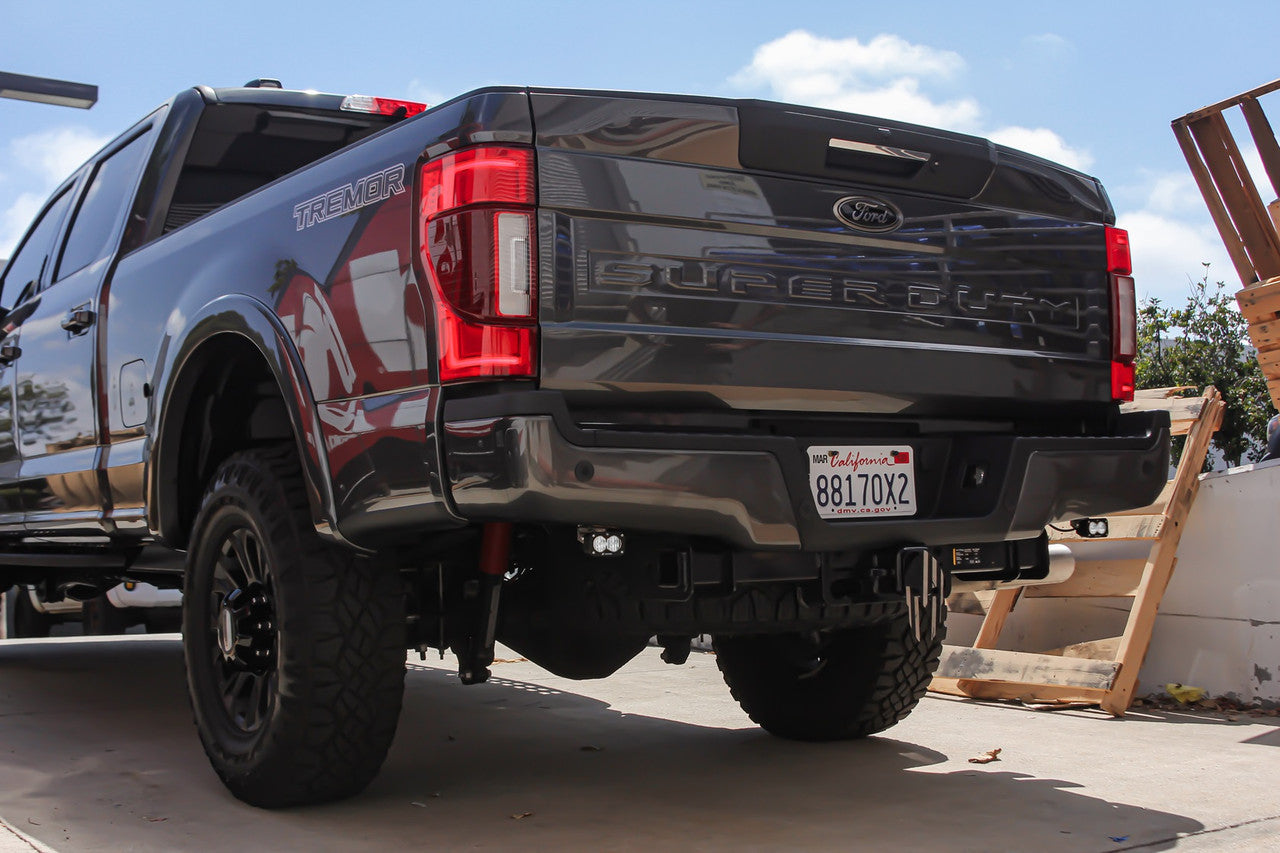

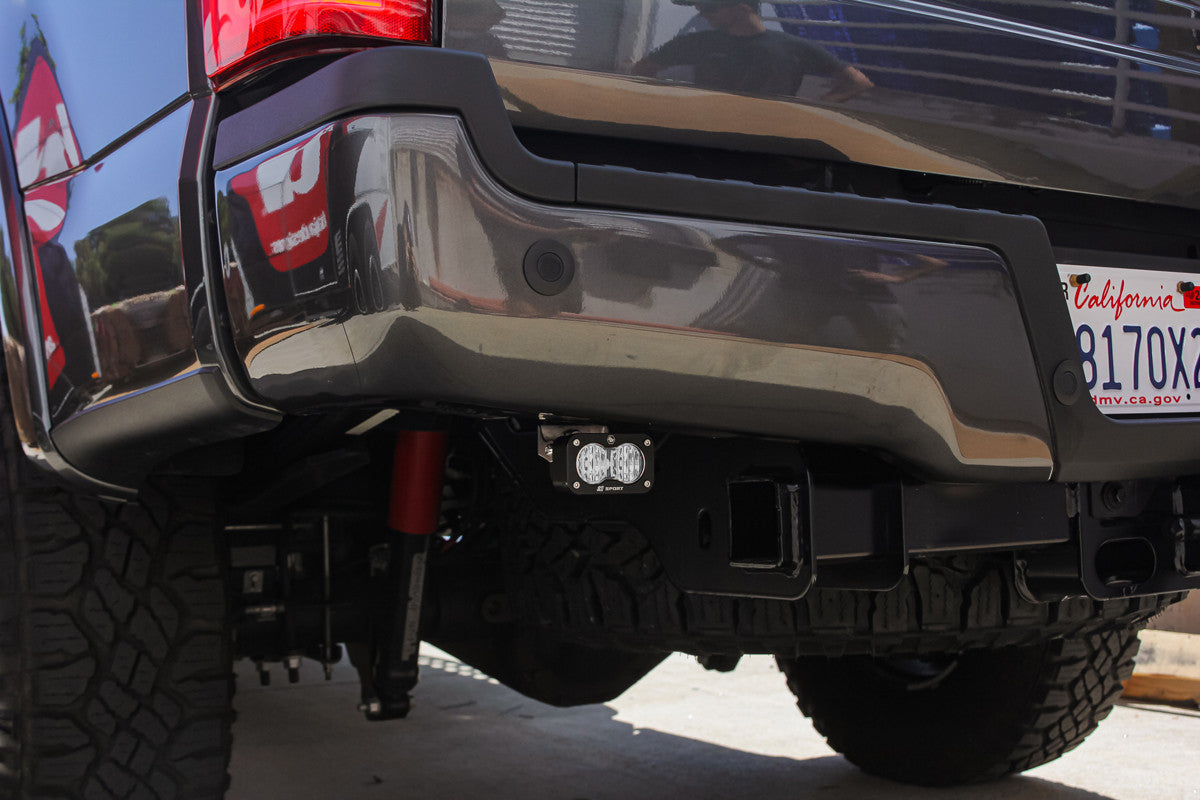

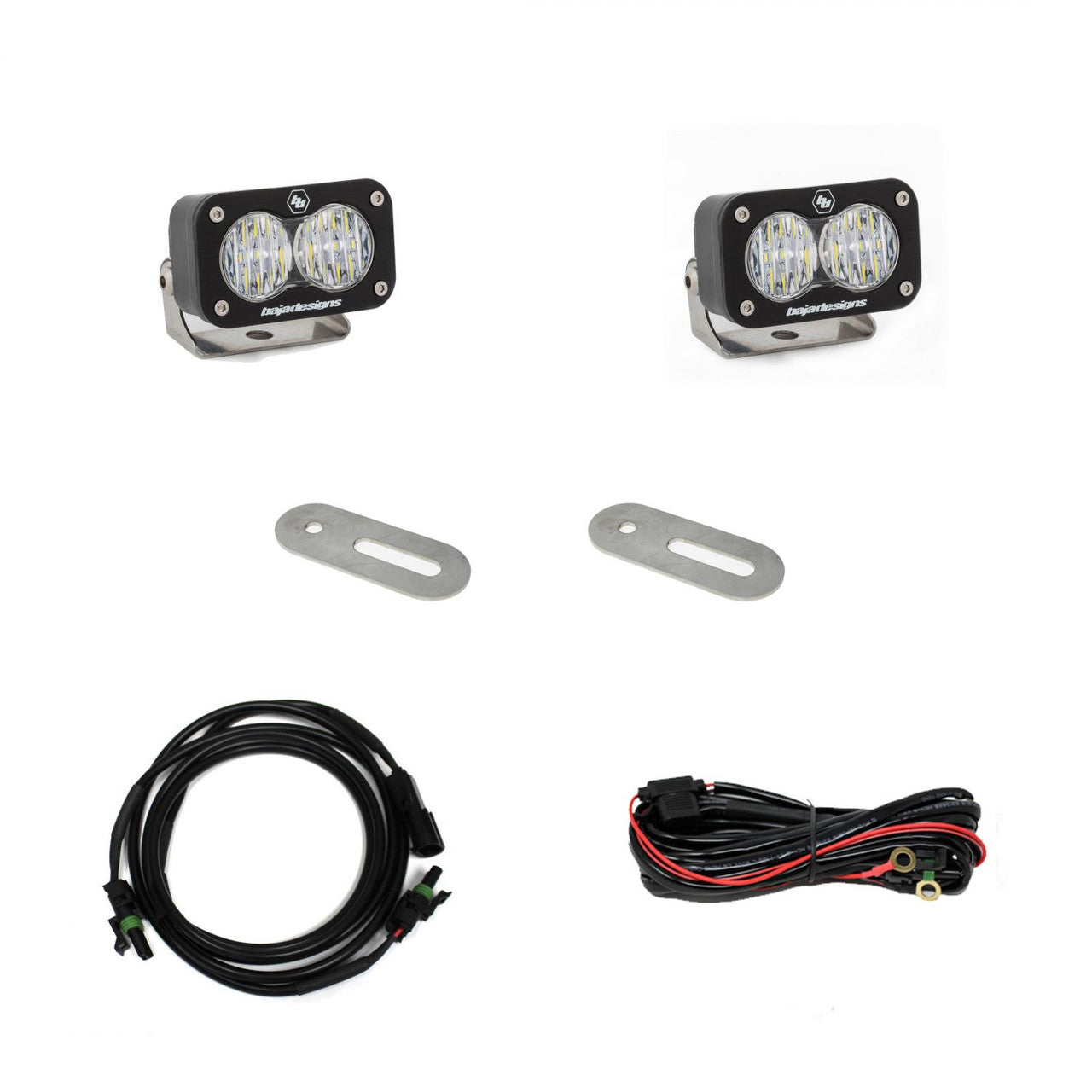

Our Ford Superduty (2017-On) S2 Reverse Kit is a great solution to help improve rear visibility! Whether you are needing more area lighting or backing up a trailer, our S2 Sports in a Wide Cornering lens pattern will drastically improve output performance. These mounts were specifically designed to fit our S2 Sport LED seamlessly below the rear bumper. The included wiring harness is an upfitter style designed to be tied into either factory vehicle switches or a sPOD / Switch Pros unit.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
Specifications
| Amperage Rating (A) | 0.900 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 1581 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Sport LED Light Pod |
| Wattage (W) | 12.420 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
