BAJA DESIGNS | Ford F-150 Raptor 2021-2023 LP4 Pro A-Pillar Light Kit (448068)
Light Pattern
Lens Color
SELECT OPTIONS
Light Pattern
Lens Color
Light Pattern
Lens Color
Description

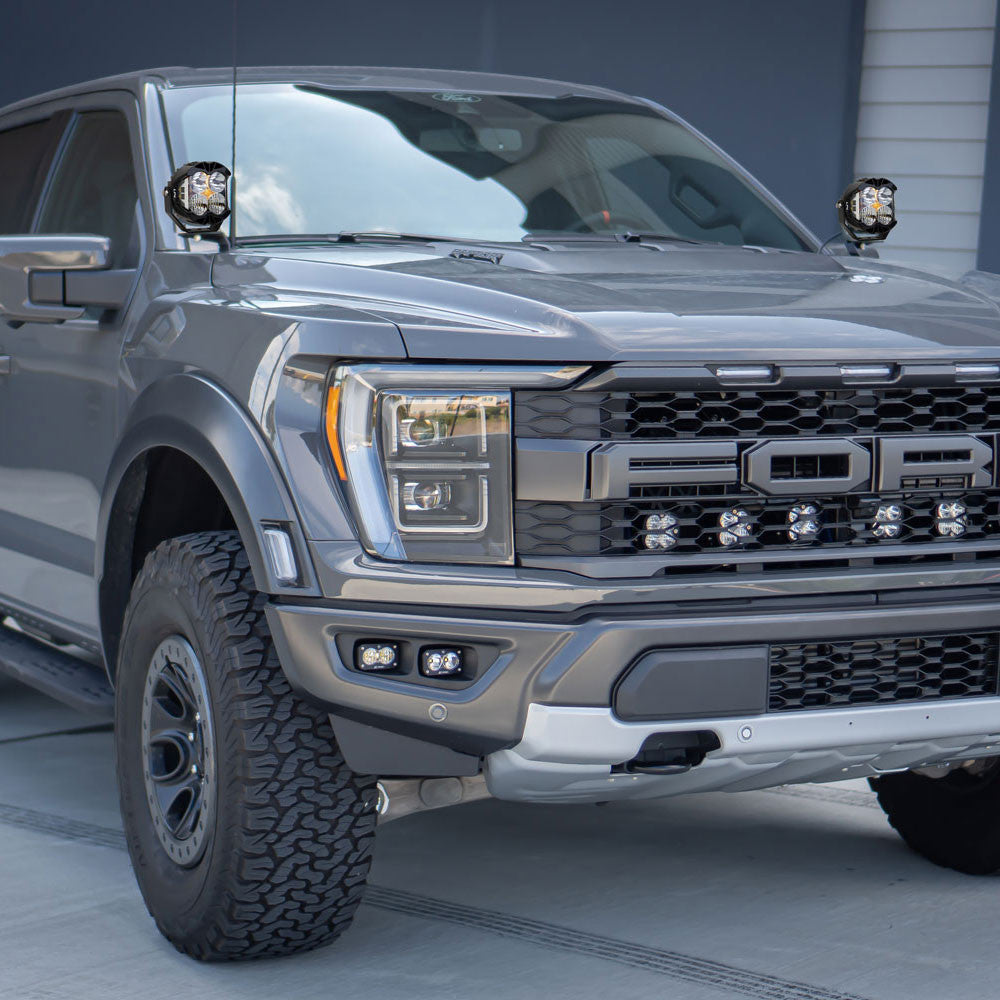

The Baja Designs LP4 A-Pillar kit for the Ford Raptor 2021-on is a turn-key solution for any enthusiasts wanting performance lighting on their trucks. This kit is perfect for anyone who is burning the midnight oil off-roading, traveling, or working. Packaged with a pair of LP4 Pro LED lights producing 8,857 raw lumens each at 60w along with our patented Integrated Peripheral Technology (IPT) produces a 200-degree spread of usable light. To keep the lights performing at their highest level, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology that allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance. includes everything that you will need and doesn't require any modifications to your truck. The wiring harness is designed to work with the up-fitter switches in Ford Raptors. Backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.

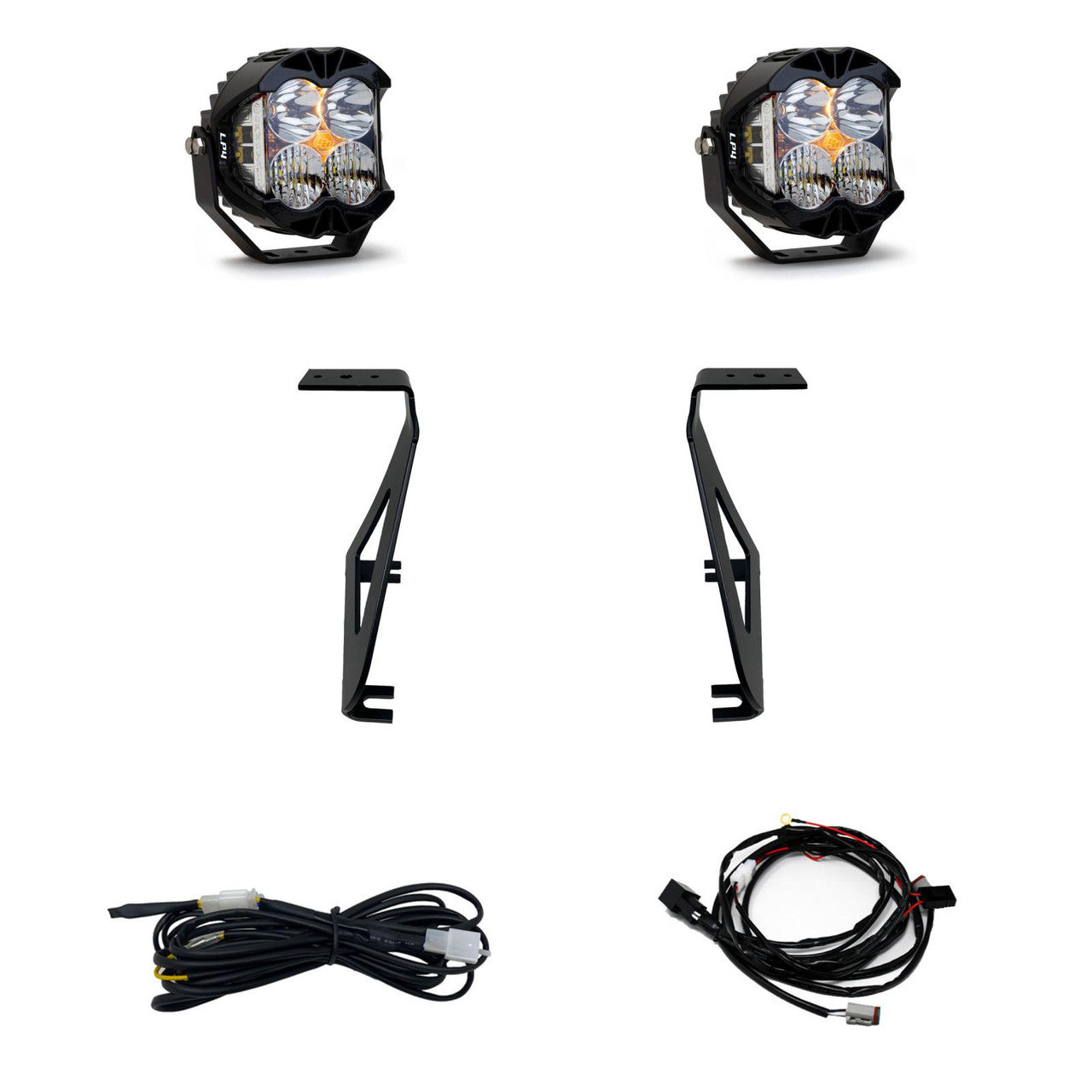

Kit comes with:
- (2x) LP4 Pro LED Lights Driving Combo (Clear)
- (2x) A-Pillar Mounting Brackets
- (1x) Trigger Switch Harness Lead 640180
- All necessary mounting hardware
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
Specifications
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Weight (lbs.) | 2.800 |
